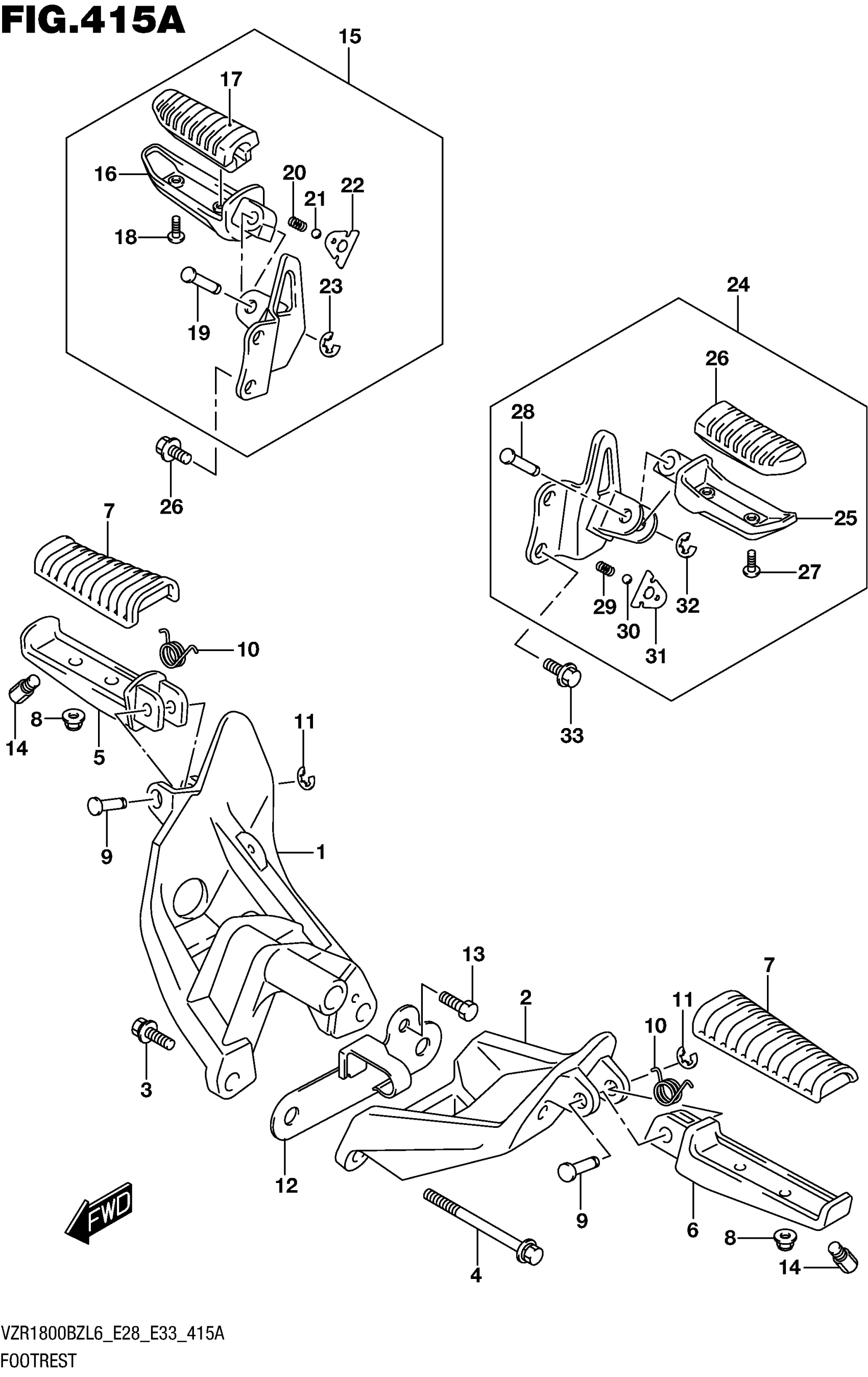

Find the part on the Footrest diagram for your 2016 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VZR1800 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST RH

43511-48G10

1
Out of stock

2

BRACKET, FRONT FOOTREST LH

43521-48G01

1
Out of stock

3

BOLT (10X28)

09103-10268

2
Out of stock

4

BOLT (10X85) | LH

09103-10337

2
Out of stock

5

BAR, FRONT FOOTREST RH

43531-48G01

1
Out of stock

6

BAR, FRONT FOOTREST LH

43541-48G01

1
Out of stock

7

RUBBER, FR FOOTREST

43550-48G00

2

$29.96

In stock

8

NUT

08319-2106A

4
Out of stock

9

PIN

09208-08019

2
Out of stock

10

SPRING

09448-14047

2
Out of stock

11

E RING

08332-1106A

2
Out of stock

12

PLATE, FOOTREST BRACKET

43560-48G00

1
Out of stock

13

BOLT

01500-0612A

1
Out of stock

14

.BOLT,BANK SENSOR

43576-07D01

2
Out of stock

15

1

$197.60

In stock

16

1

$61.88

In stock

17

.RUBBER, FOOTREST

43550-44G00

1
Out of stock

18

.SCREW

02142-05127

2
Out of stock

19

PIN

09208-08017

1
Out of stock

20

.SPRING

09440-05005

1
Out of stock

21

BALL

06111-07004

1
Out of stock

22

.PLATE, PILLION

43816-44G00

1

$6.63

In stock

23

.E RING

08332-1106A

1
Out of stock

24

FOOTREST, PILLION LH

43700-48G00

1

$197.60

In stock

25

1

$61.88

In stock

26

.RUBBER, FOOTREST

43550-44G00

1
Out of stock

27

.SCREW

02142-05127

2
Out of stock

28

PIN

09208-08017

1
Out of stock

29

.SPRING

09440-05005

1
Out of stock

30

BALL

06111-07004

1
Out of stock

31

.PLATE, PILLION

43816-44G00

1

$6.63

In stock

32

.E RING

08332-1106A

1
Out of stock

33

BOLT (8X16)

09103-08412

4
Out of stock
