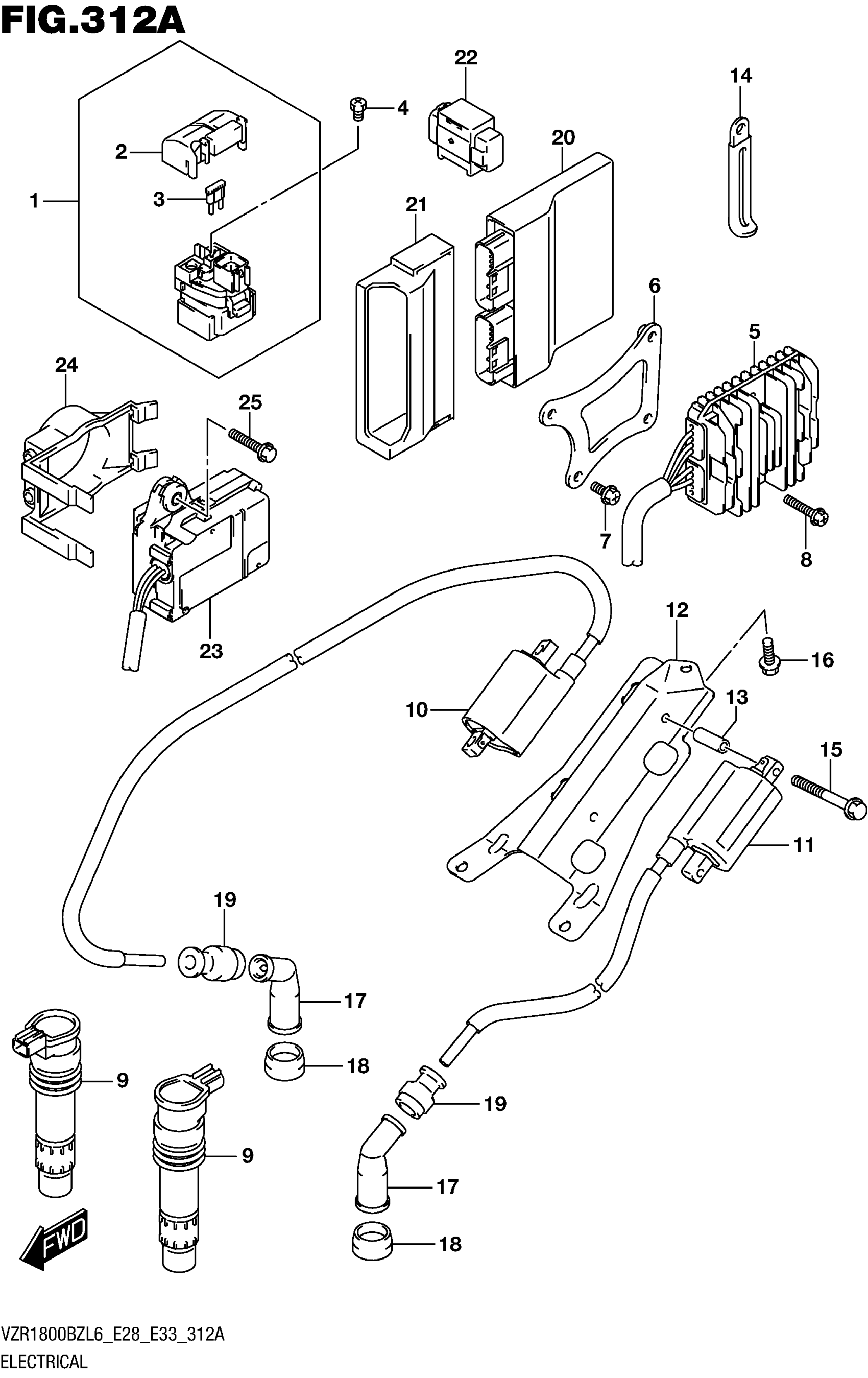

Suzuki VZR1800 (2016) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-38G10

$89.07

2

.COVER

31861-38G00

$5.52

3

.FUSE (30A)

09481-30501

$2.34

4

SCREW (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY

32800-10G30

$363.52

6

BRACKET, RECT FTG

32830-48G00

Unavailable

7

BOLT

02162-0620C

$1.73

8

SCREW This part replaces 02162-0616A.

02162-0616B

$2.06

9

COIL ASSY,IGNITION This part replaces 33410-35F10.

33410-35F11

$130.57

10

COIL ASSY, IGNITION FRONT

33410-38A20

$183.72

11

COIL ASSY, IGNITION REAR

33410-48G00

$183.72

12

BRACKET, IGNITION COIL

33414-48G00

Unavailable

13

SPACER (6.4X10X18)

09180-06195

$4.70

14

CLAMP(L:80) | FOR RECTIFIER This part replaces 09404-06433.

09404-06036

$1.76

15

BOLT

01547-0535A

Unavailable

16

BOLT

01550-0616A

$1.97

17

CAP ASSY, SPARK PLUG

33510-20E00

$39.05

18

SEAL, SPARK PLUG

33541-47D00

$7.16

19

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

20

CONTROL UNIT,FI This part replaces 32920-48GH0.

32920-48GH1

$1,543.60

21

HOLDER,FI CONTROL UNIT This part replaces 32980-48G00.

32980-48G01

$21.47

22

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

23

ACTUATOR ASSY, EXHAUST CONTRO This part replaces 33970-48G00.

33970-48G02

$451.38

24

COVER, ACTUATOR

33973-48G01

Unavailable

25

BOLT

01560-0625A

$2.97
