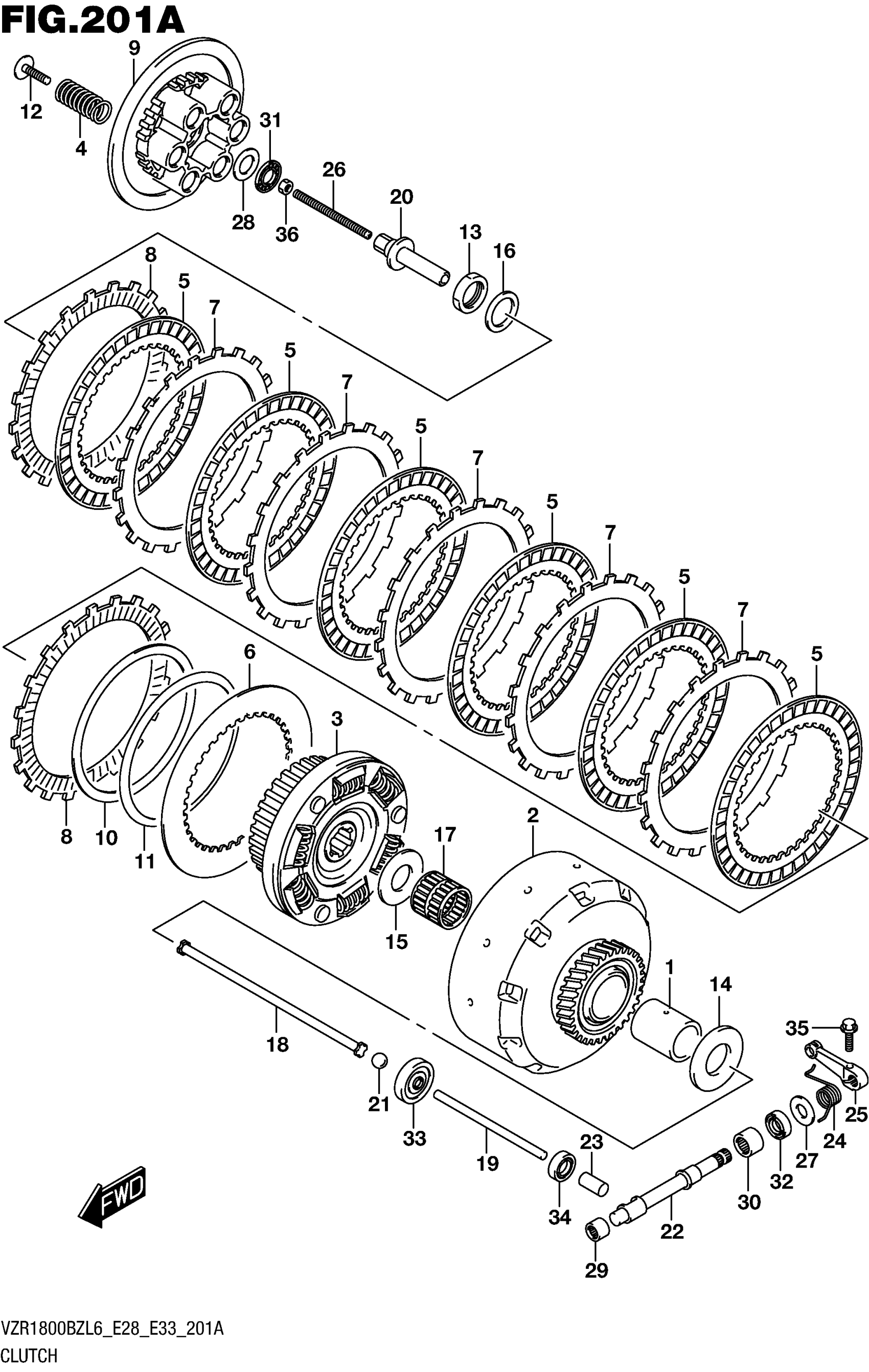

Find the part on the Clutch diagram for your 2016 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VZR1800 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPACER, PRIMARY DRIVE GEAR

21151-48G00

1
Out of stock

2

GEAR ASSY, PRIMARY DRIVE

21100-48G01

1
Out of stock

2

(NT:33)

21100-48G01

1
Out of stock

3

HUB, CLUTCH SLEEVE

21410-48G10

1
Out of stock

4

SPRING, CLUTCH

21413-35F10

6
Out of stock

5

PLATE, CLUTCH DRIVE NO.1

21441-22H00

6
Out of stock

5

(T:3.0)

21441-22H00

1
Out of stock

6-1

PLATE, CLUTCH DRIVE NO.2

21441-48G40

1
Out of stock

6-1

(T:2.0)

21441-48G40

1
Out of stock

6-2

PLATE, CLUTCH DRIVE NO.3

21441-48G50

1
Out of stock

6-2

(T:2.3)

21441-48G50

1
Out of stock

6-3

PLATE, CLUTCH DRIVE NO.4

21441-48G60

1
Out of stock

6-3

(T:1.6)

21441-48G60

1
Out of stock

7

PLATE, CLUTCH DRIVEN NO.1

21451-22H00

5
Out of stock

7

(T:2.3)

21451-22H00

1
Out of stock

8

PLATE, CLUTCH DRIVEN NO.2

21451-48G10

2
Out of stock

8

(T:3.4)

21451-48G10

1
Out of stock

9

DISC, CLUTCH PRESSURE

21462-48G00

1
Out of stock

10

SEAT, WAVE WASHER

21471-48G00

1
Out of stock

11

WASHER, CLUTCH PLATE

21472-48G10

1
Out of stock

12

BOLT, CLUTCH SPRING

21482-41G00

6
Out of stock

13

NUT

09159-24010

1
Out of stock

14

.WASHER (25X50X2.5)

09160-25056

1
Out of stock

15

.WASHER (25X50X2.5)

09160-25056

1
Out of stock

16

WASHER

09164-24008

1
Out of stock

17

BEARING (32X37X38.3)

09263-32020

1
Out of stock

18

ROD, CLUTCH

23110-24F00

1
Out of stock

19

ROD, CLUTCH PUSH LH

23111-48G00

1
Out of stock

20

PIECE, CLUTCH PUSH

23121-41G00

1
Out of stock

21

BALL, CLUTCH PUSH

23122-02FR0

1
Out of stock

22

CAMSHAFT, CLUTCH RELEASE

23122-48G00

1
Out of stock

23

CAP, CLUTCH PUSH ROD

23123-41G00

1
Out of stock

24

SPRING, CLUTCH RELEASE RETURN

23125-48G00

1
Out of stock

25

ARM, CLUTCH RELEASE

23271-48G00

1
Out of stock

26

SCREW (6X73)

09134-06015

1
Out of stock

27

WASHER (10.5X24X1)

09160-10020

1
Out of stock

28

WASHER (15.5X28X1)

09160-15045

1
Out of stock

29

BEARING (10X14X10)

09263-10014

1
Out of stock

30

BEARING (12X18X12)

09263-12027

1
Out of stock

31

BEARING (15X28X2)

09263-15003

1
Out of stock

32

OIL SEAL (10X20X6)

09282-10012

1
Out of stock

33

OIL SEAL (6X34X10.5)

09283-06010

1
Out of stock

34

OIL SEAL (10X17X5)

09285-10004

1
Out of stock

35

BOLT

01547-0620A

1
Out of stock

36

NUT

08310-0006A

1
Out of stock
