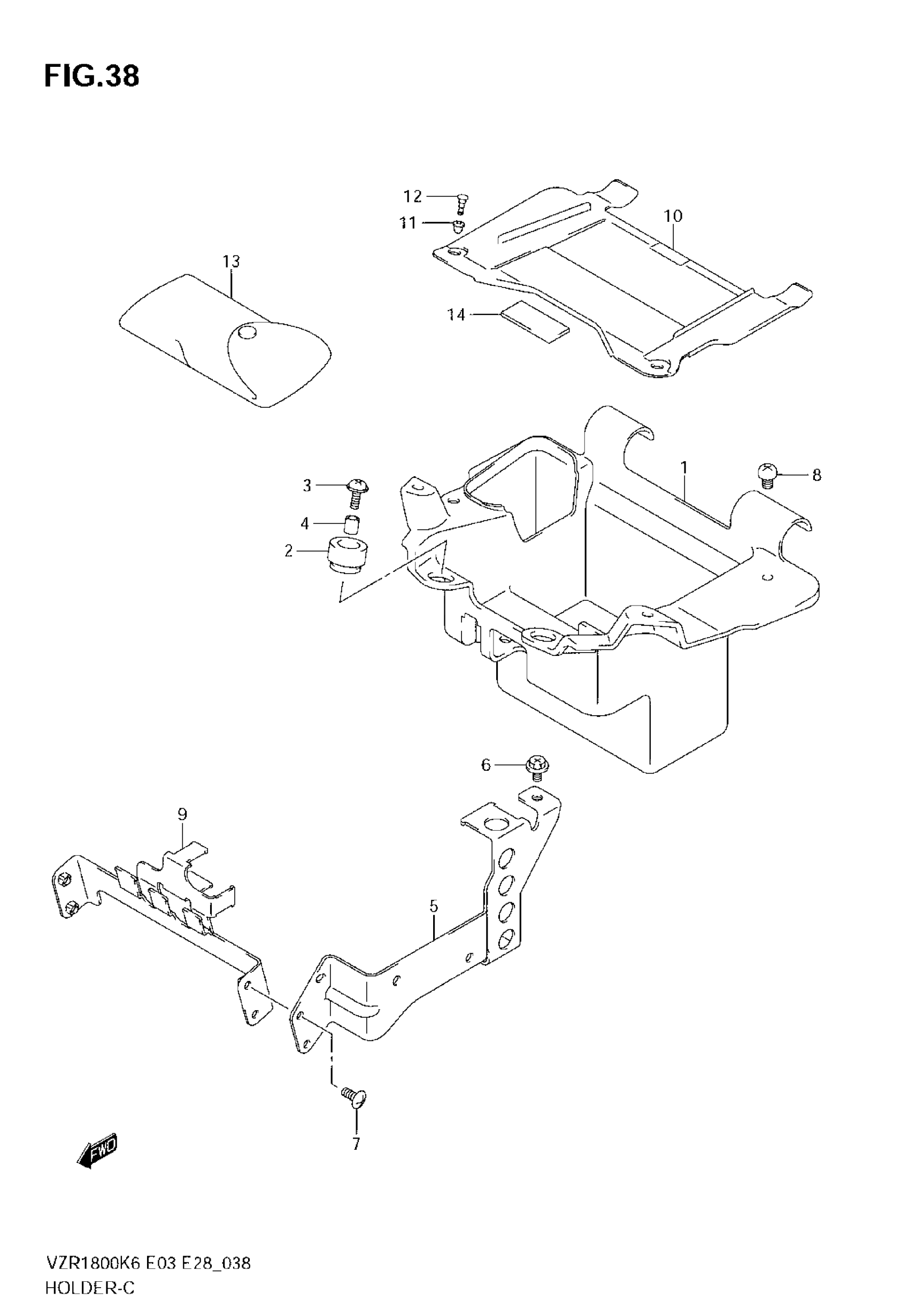

Find the part on the Holder diagram for your 2009 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VZR1800 Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, BATTERY

41541-48G00

1
Out of stock

2

CUSHION,FRAME COVER UP This part replaces 47115-16G00.

47115-16G01

2
Out of stock

3

SCREW

09136-06105

2
Out of stock

4

SPACER

09180-06289

2
Out of stock

5

HOLDER, ELECTRIC PARTS

41550-48G00

1
Out of stock

6

BOLT, RH | MODEL K6/K7

09103-06100

1
Out of stock

6

BOLT, RH | MODEL K8/K9

02162-0608A

1
Out of stock

7

BOLT, LH | MODEL K6/K7

01550-0610A

1
Out of stock

7

BOLT, LH | MODEL K8/K9

02162-0610A

—
Out of stock

8

BOLT, REAR | MODEL K6/K7

01550-0616A

1
Out of stock

8

SCREW | MODEL K8/K9 This part replaces 02162-0616A.

02162-0616B

1
Out of stock

9

BRACKET, RELAY

41560-48G00

1
Out of stock

10

LID, BATTERY HOLDER

47432-48G00

1
Out of stock

11

GROMMET

09409-08329

2
Out of stock

12

PLUNGER

09409-08330

2
Out of stock

13

TOOL ASSY This part replaces 09800-21055.

09800-21102

1
Out of stock

14

CUSHION, LID

63115-35G10

1
Out of stock
