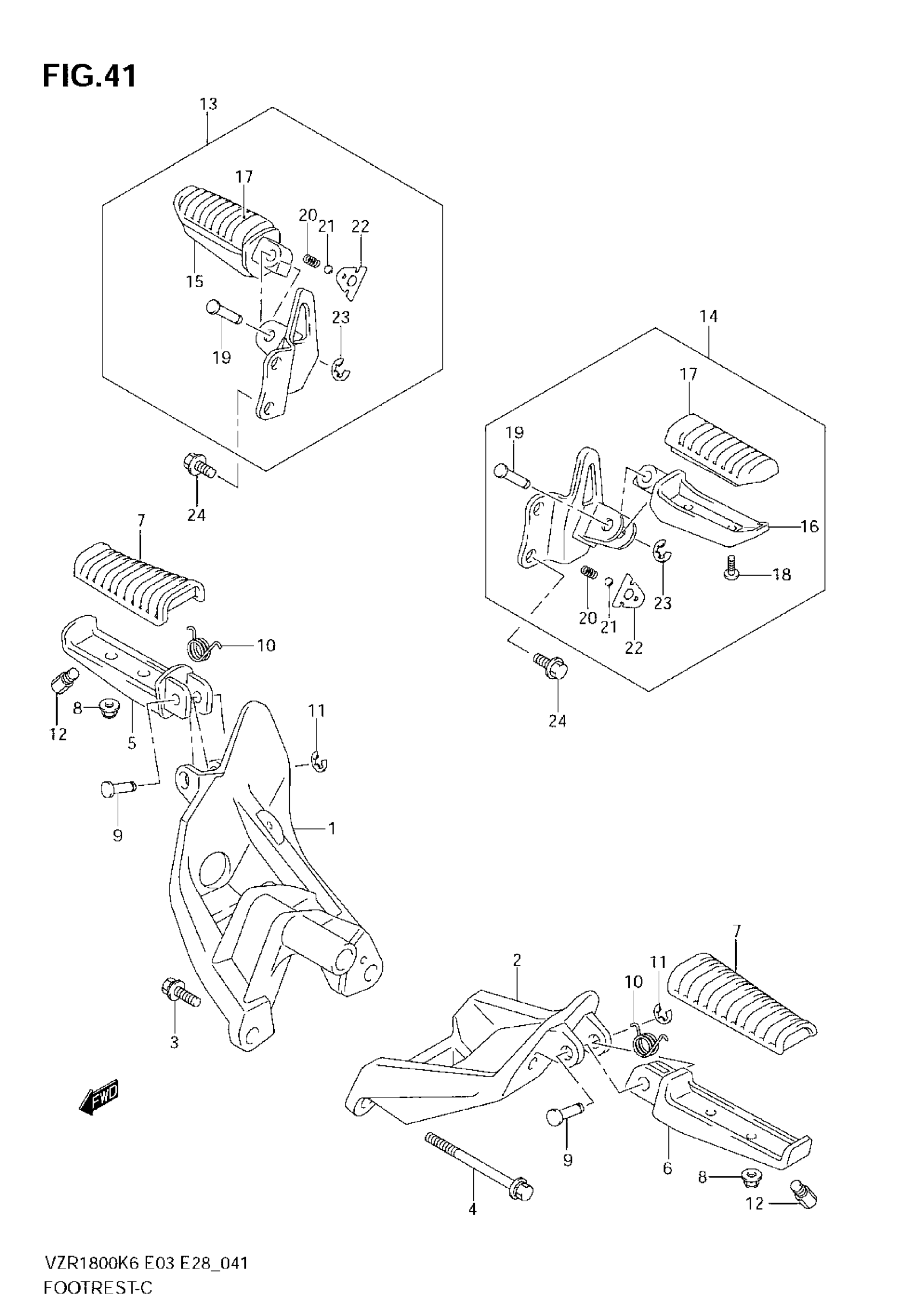

Suzuki VZR1800 (2009) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-48G00

$1,130.40

2

BRACKET, FRONT FOOTREST LH

43521-48G01

$477.90

3

BOLT

09103-10268

$5.98

4

BOLT, LH

01580-1085A

$5.63

5

BAR, FRONT FOOTREST RH This part replaces 43531-48G00.

43531-48G01

$53.23

6

BAR, FRONT FOOTREST LH This part replaces 43541-48G00.

43541-48G01

$51.92

7

RUBBER

43550-48G00

$27.50

8

NUT

08319-2106A

$1.89

9

PIN

09208-08010

$2.80

10

SPRING

09448-14047

$3.84

11

E-RING

08332-1106B

$1.98

12

.BOLT,BANK SENSOR

43576-07D01

$8.10

13

FOOTREST, PILLION RH

43600-48G00

$197.60

14

FOOTREST, PILLION LH | Includes Item(s) 15 - 23

43700-48G00

$197.60

15

BAR, RH

43611-44G00

$61.88

16

BAR, LH

43621-44G00

$61.88

17

RUBBER

43550-44G00

$40.13

18

SCREW

02142-05127

$1.97

19

PIN

09208-08017

$3.67

20

SPRING

09440-05005

$1.45

21

BALL

06111-07004

$1.22

22

PLATE, PILLION

43816-44G00

$4.71

23

E RING

08332-1106A

$1.43

24

BOLT, BRACKET

09103-08412

$3.30
