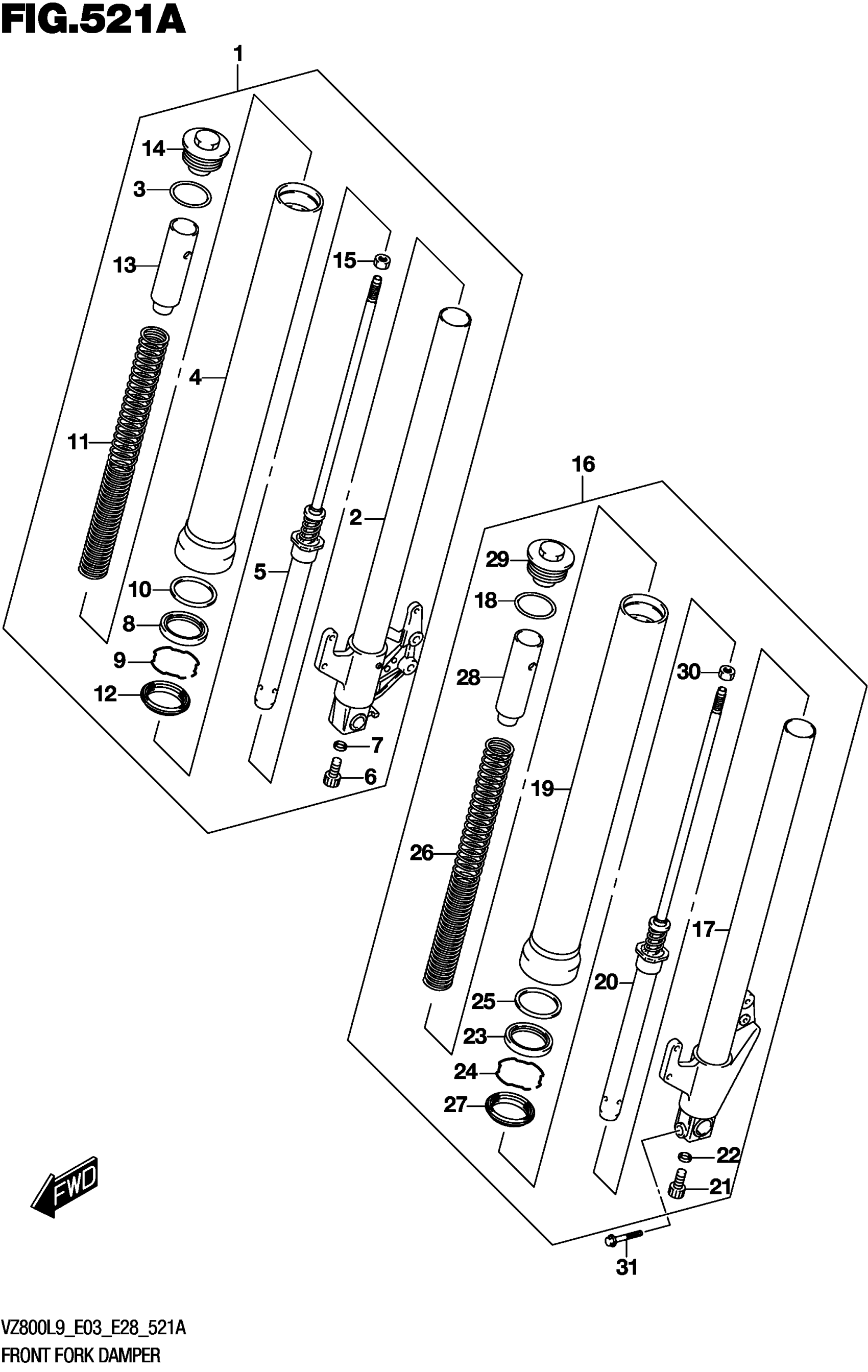

Suzuki VZ800L9 (2019) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY

51103-39G60

$1,356.80

2

.TUBE

51110-39G20

Unavailable

3

.O RING

51117-39G20

Unavailable

4

.TUBE

51130-39G60

$400.32

5

.CYLINDER

51146-39G20

$315.00

6

.BOLT

51147-05H00

$6.10

7

.GASKET

51148-41310

$2.14

8

.SEAL,OIL

51153-10G50

$19.79

9

.RING,OIL SEAL STOPPER

51156-49440

$4.97

10

.WASHER

51158-05A00

$5.58

11

.SPRING

51171-39G20

$116.28

12

.SEAL,DUST

51173-14F00

$22.07

13

.SPACER,SPRING

51176-21H00

$30.92

14

.CAP

51351-39G60

$179.92

15

.NUT, ROD

51352-13A60

$3.42

16

DAMPER ASSY

51104-39G60

Unavailable

17

.TUBE

51120-39G60

$630.23

18

.O RING

51117-39G20

Unavailable

19

.TUBE

51130-39G60

$400.32

20

.CYLINDER

51146-39G20

$315.00

21

.BOLT

51147-05H00

$6.10

22

.GASKET

51148-41310

$2.14

23

.SEAL,OIL

51153-10G50

$19.79

24

.RING,OIL SEAL STOPPER

51156-49440

$4.97

25

.WASHER

51158-05A00

$5.58

26

.SPRING

51171-39G20

$116.28

27

.SEAL,DUST

51173-14F00

$22.07

28

.SPACER,SPRING

51176-21H00

$30.92

29

.CAP

51351-39G20

Unavailable

30

.NUT, ROD

51352-13A60

$3.42

31

BOLT,AXLE STOPPER

51166-10G10

$6.08
