2019 Suzuki VZ800L9 Front Caliper Diagram

← All diagrams

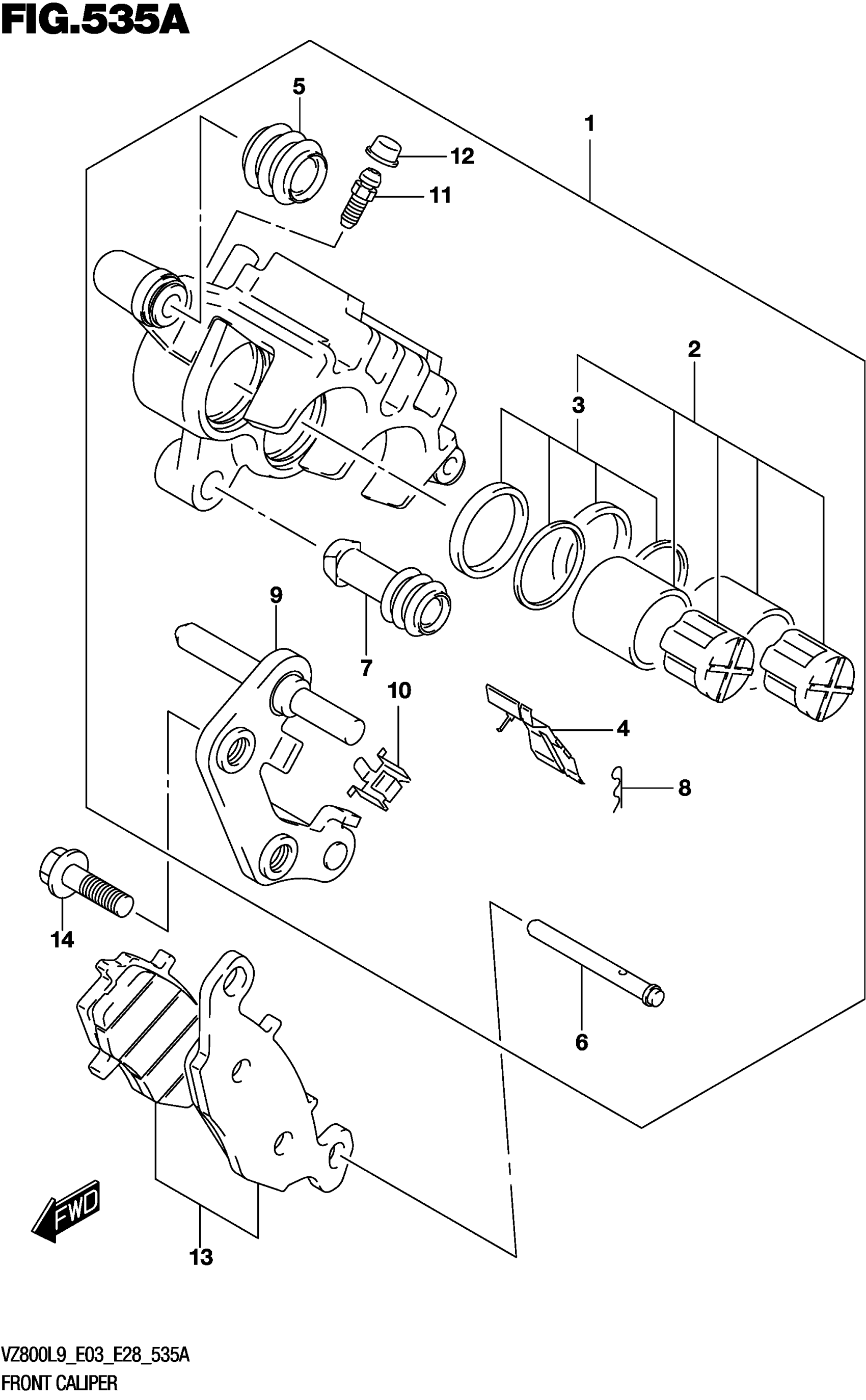

Find the part on the Front Caliper diagram for your 2019 Suzuki VZ800L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki VZ800L9 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY

59100-33DN0-999

—
Out of stock

2

.PISTON SET

59301-20810

1
Out of stock

3

..SEAL SET,PISTON

59300-33841

1
Out of stock

4

.SPRING, PAD RH

59115-33D00

1
Out of stock

5

.BOOT,AXLE

59112-44B00

1
Out of stock

6

.PIN, PAD

59141-44B01

1
Out of stock

7

.INSULATOR, AXLE

59313-36500

1
Out of stock

8

.CLIP, PAD PIN

69142-45000

1
Out of stock

9

.CARRIER, CALIPER RH

59150-33D01

1
Out of stock

10

.GUIDE, PAD

59116-33D00

1
Out of stock

11

.BLEEDER

59121-18410

1
Out of stock

12

.CAP,BLEEDER PLUG (M10X1)

55156-66310

1
Out of stock

13

PAD SET

59102-33820

1
Out of stock

14

BOLT (10X30)

09103-10379

2
Out of stock
