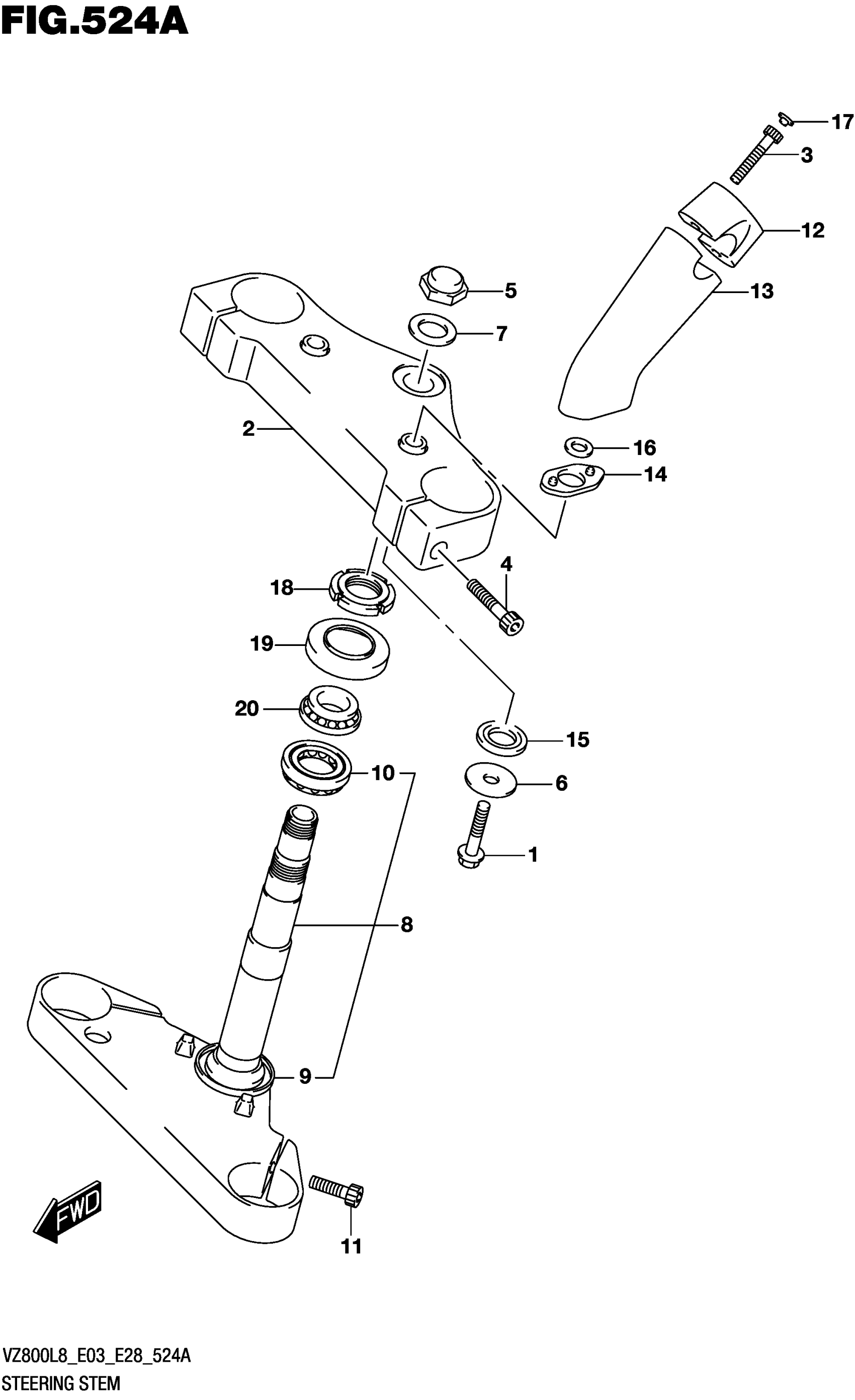

Suzuki VZ800L8 (2018) STEERING STEM Diagram

#

Description
Price

1

BOLT

51226-39G20

Unavailable

2

BRACKET

51311-39G60

$464.88

3

BOLT,HOLDER HANDLE UPPER

51328-39G20

$13.27

4

BOLT,HOLDER HANDLE UPPER

51328-39G20

$13.27

5

NUT,CAP

51353-24B00

$34.62

6

WASHER

51355-16G00

$6.52

7

WASHER (22.5X35.9X1.6)

51356-10D03

$8.47

8

BRACKET

51410-39G60

$757.22

9

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$8.65

10

.BEARING (30X55X17)

09267-30010

$43.41

11

BOLT

51434-39G00

$9.83

12

HOLDER

56211-39G60

$94.27

13

HOLDER

56221-39G60

$547.20

14

RUBBER

56245-39G00

$10.62

15

RUBBER,HANDLE LOWER

56245-39G20

$10.62

16

WASHER

08322-01107

$1.88

17

CAP (OD:11)

09250-06011

$2.53

18

NUT,STEERING STEM (25X44X10)

51631-28000

$19.60

19

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

20

BEARING (25X47X15)

09267-25009

$56.72
