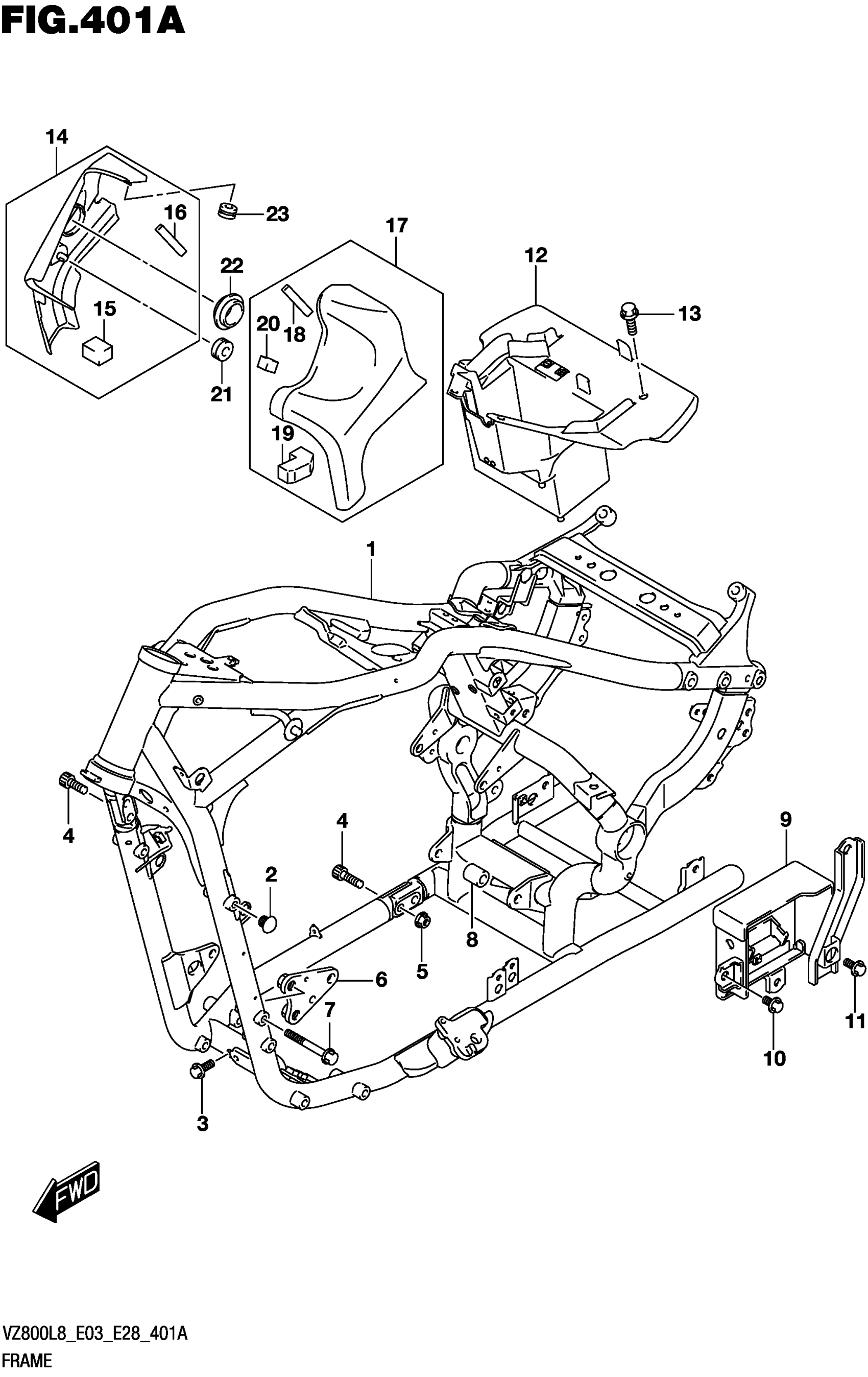

Suzuki VZ800L8 (2018) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-41F71-019

Unavailable

2

CAP This part replaces 09250-09001.

09250-09008

$1.56

3

BOLT (8X16)

01550-0816A

$2.31

4

BOLT

07130-1035B

$5.63

5

NUT

08319-3110B

$4.20

6

PLATE,ENG MOUNT NO.1 LH

41920-41F00

Unavailable

7

BOLT (8X65)

09112-08013

Unavailable

8

SPACER,ENG MTG LOWER

41941-41F00

Unavailable

9

HOLDER,ELECTRIC PARTS

41540-41F30

Unavailable

10

BOLT

01547-0612A

$2.01

11

BOLT (8X16)

01550-0816A

$2.31

12

HOLDER,ELECTRIC PARTS

47410-41F02

Unavailable

13

BOLT (6X16)

09113-06010

$3.57

14

COVER,FRAME HEA This part replaces 47350-39G10-019.

47350-39G11-019

$68.08

15

CUSHION,RDTR COVER INNER | CUT AS REQUIRED

17798-39G00

$6.12

16

.CUSHION (12X65X2)

53145-40A00

$2.30

17

COVER,FRAME HEAD,L (BLACK) This part replaces 47360-41F12-019.

47360-41F40-019

$79.73

18

.CUSHION (12X65X2)

53145-40A00

$2.30

19

.CUSHION, FR FENDER SIDE

53146-05G00

$8.21

20

CUSHION (20X30X8)

94422-06G00

$6.57

21

CUSHION (8x26x7)

09320-08018

$2.80

22

CAP

47355-41F01

$8.55

23

CUSHION (9X18X10)

09320-09501

$2.06
