Description

Price

1

HANDLEBAR

56111-39GC0

$217.98

2

BALANCER SET, HANDLEBAR

56200-10892

$52.53

3

.SCREW (6X127)

09127-06017

$2.80

4

.EXPANDER, OUTER

56272-26D01

$9.62

5

.SPACER

56276-17D00

$4.78

6

.WASHER (6.5X16X4)

09160-06131

$2.53

7

.EXPANDER, INNER

56272-10G10

$4.46

8

.NUT

56273-10G10

$7.92

9

MIRROR ASSY, REAR VIEW RH

56500-41FG0

$178.60

10

MIRROR ASSY, REAR VIEW LH

56600-41FG0

$178.60

11

CABLE ASSY, CLUTCH

58200-39G30

Unavailable

12

CABLE ASSY,THRO This part replaces 58300-39G60.

58300-39G61

$50.40

13

CABLE ASSY,THRO This part replaces 58300-39G70.

58300-39G71

$52.98

14

GUIDE, THROTTLE CABLE

58626-39G20

Unavailable

15

BOLT

01550-0616A

$1.97

16

CLAMP (L:190)

09407-19401

$3.32

17

CLAMP (L:300)

09407-30401

$6.22

18

CLIP

09408-00244

$3.08

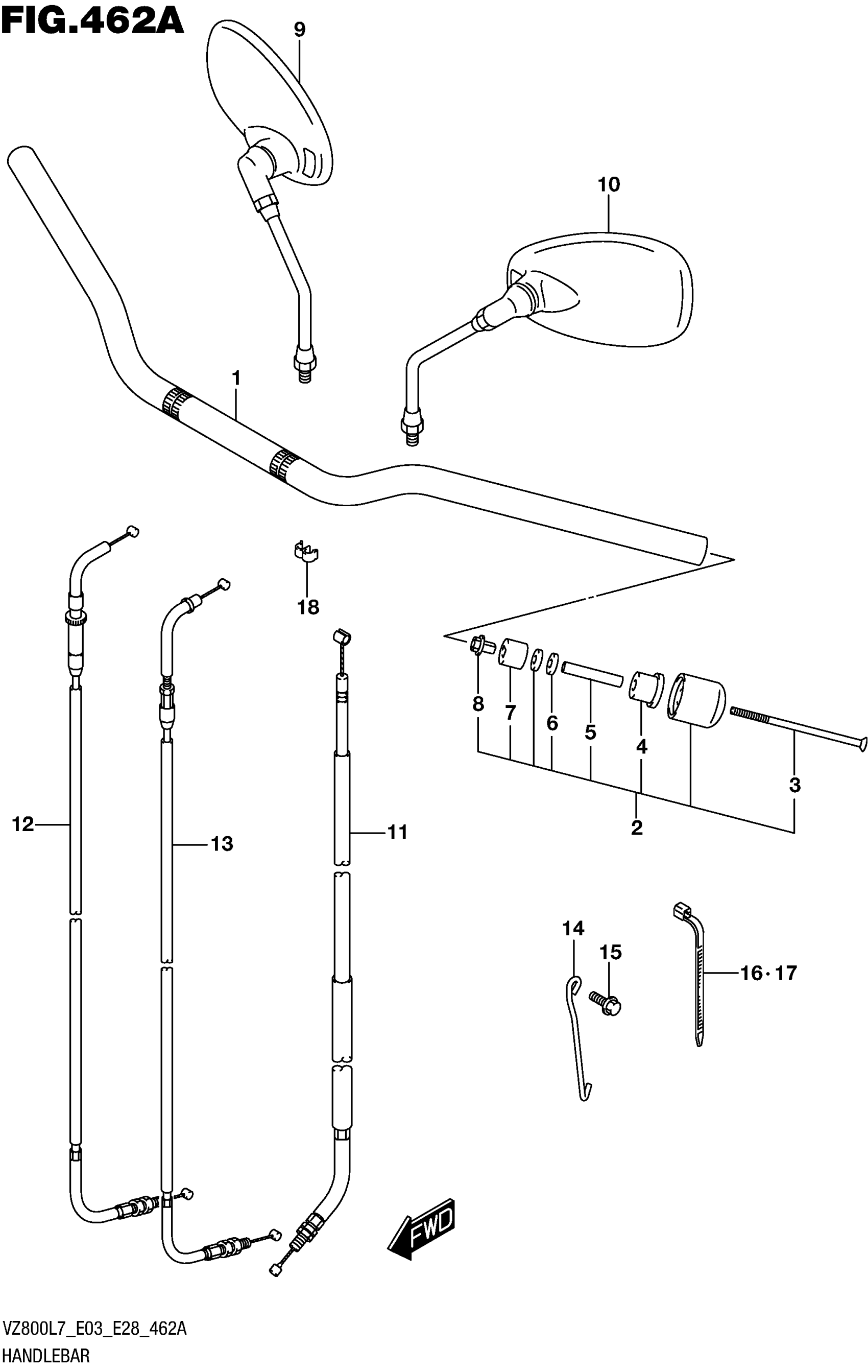

Suzuki VZ800L7 (2017) HANDLEBAR Diagram
