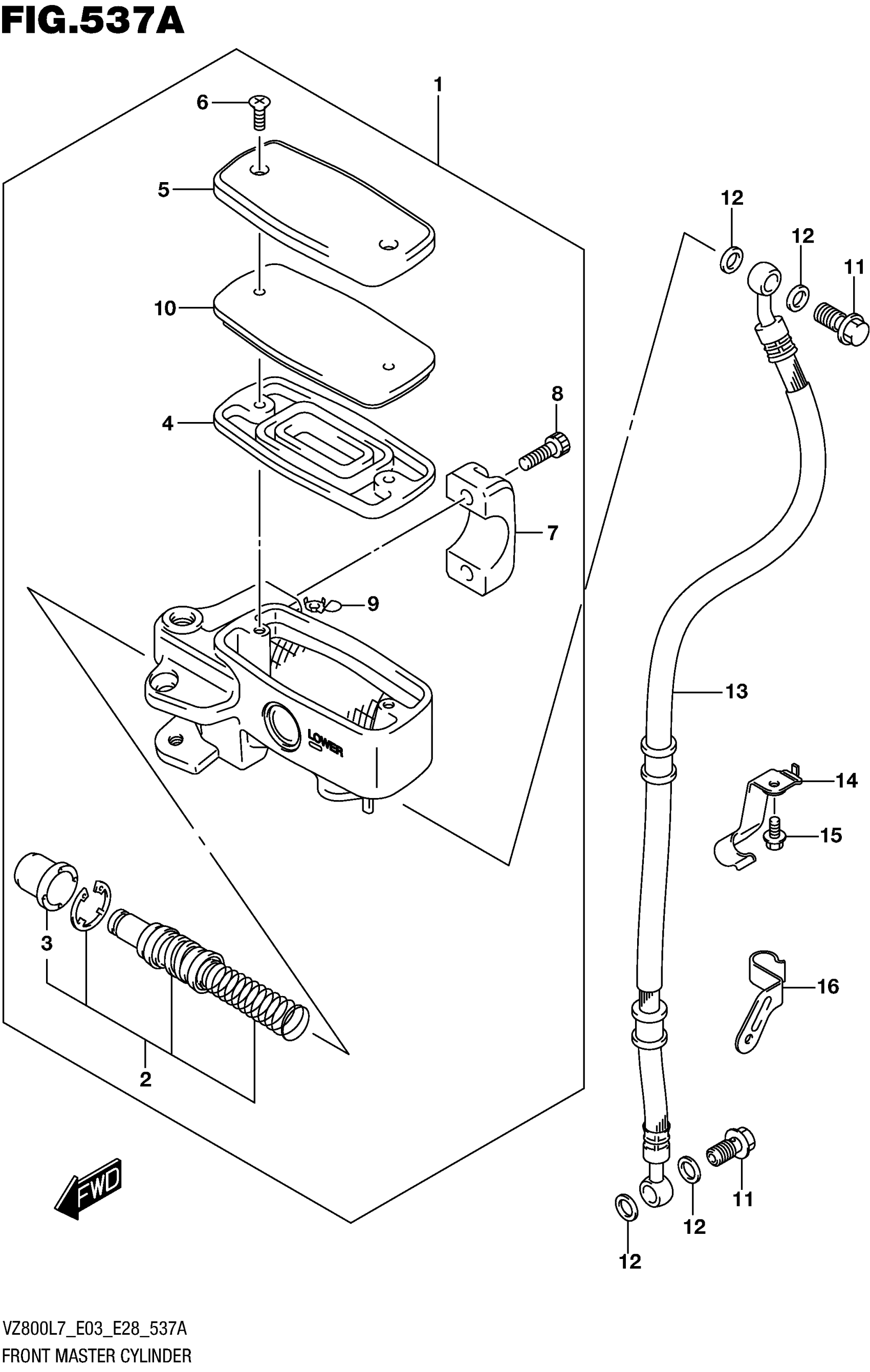

Suzuki VZ800L7 (2017) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10FJ0

Unavailable

2

.PISTON/CUP SET

59600-04810

$41.38

3

..BOOT

59666-44300

$5.30

4

.DIAPHRAGM

59667-10F00

$11.40

5

.CAP

59669-10F60

$48.98

6

.SCREW

69689-49300

$1.81

7

.HOLDER

59671-10F20

Unavailable

8

.BOLT This part replaces 07110-06208.

07130-06207

$2.80

9

.PROTECTOR

59664-32F00

$13.20

10

.PLATE

57437-10F00

$23.73

11

UNION

09360-10062

$5.81

12

WASHER (10X15X1.5)

09161-10009

$1.83

13

HOSE This part replaces 59480-39G20.

59480-39G21

$104.55

14

CLAMP, BRAKE HOSE UPPER

59266-43H00

Unavailable

15

BOLT

01547-0612A

$2.01

16

CLAMP, FR BRAKE HOSE

59268-39G00

Unavailable
