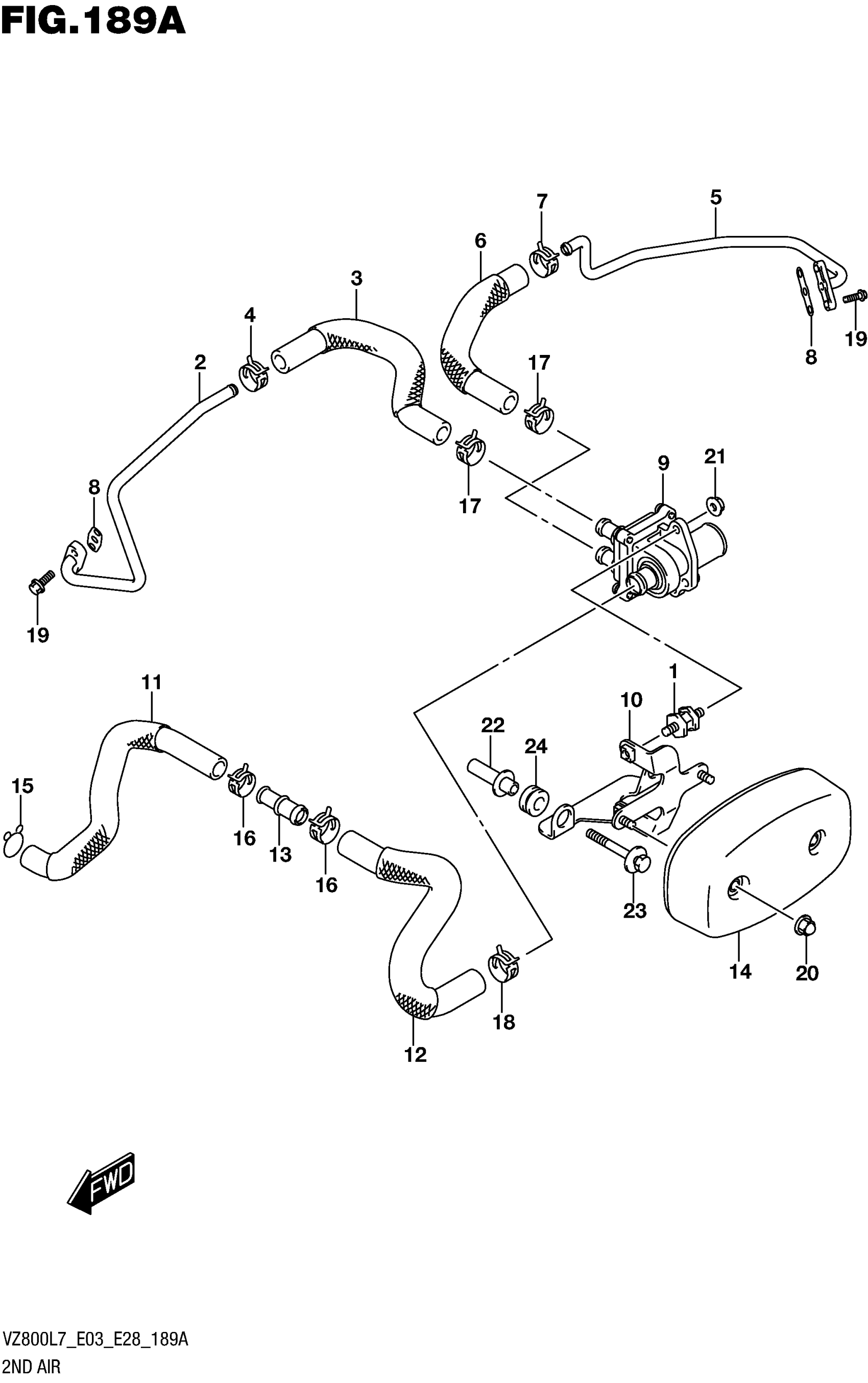

Find the part on the 2ND AIR diagram for your 2017 Suzuki VZ800L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki VZ800L7 2ND AIR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, 2ND AIR VALVE CUSHION

18487-39G00

2
Out of stock

2

PIPE, 2ND AIR FR

18410-41F30

1
Out of stock

3

HOSE, 2ND AIR VALVE FR

18461-39G00

1
Out of stock

4

CLIP

09401-15407

1
Out of stock

5

PIPE,2ND AIR RR

18420-41F30

1
Out of stock

6

HOSE, 2ND AIR VALVE RR

18471-39G00

1
Out of stock

7

CLIP

09401-15407

1
Out of stock

8

GASKET 2ND AIR PIPE

18441-45C01

2
Out of stock

9

VALVE ASSY, 2ND AIR

18450-39G01

1
Out of stock

10

BRACKET, 2ND AIR SPRT

18610-39G00

1
Out of stock

11

HOSE, 2ND AIR CLEANER

18711-39G00

1
Out of stock

12

HOSE, 2ND AIR CLEANER

18712-39G00

1
Out of stock

13

JOINT

18713-39G00

1
Out of stock

14

COVER, 2ND AIR VALVE

18780-41F30

1
Out of stock

15

CLIP

09401-15101

1
Out of stock

16

CLIP

09401-16407

2
Out of stock

17

CLIP

09401-18406

2
Out of stock

18

CLIP

09401-20405

1

$4.43

In stock

19

BOLT

01547-0616A

4
Out of stock

20

NUT

08313-2006A

2
Out of stock

21

NUT

08316-1006B

2
Out of stock

22

SPACER, 2ND AIR SPRT BRKT

18620-41F00

2
Out of stock

23

BOLT (6X55)

09116-06183

2
Out of stock

24

CUSHION

09320-10015

2
Out of stock
