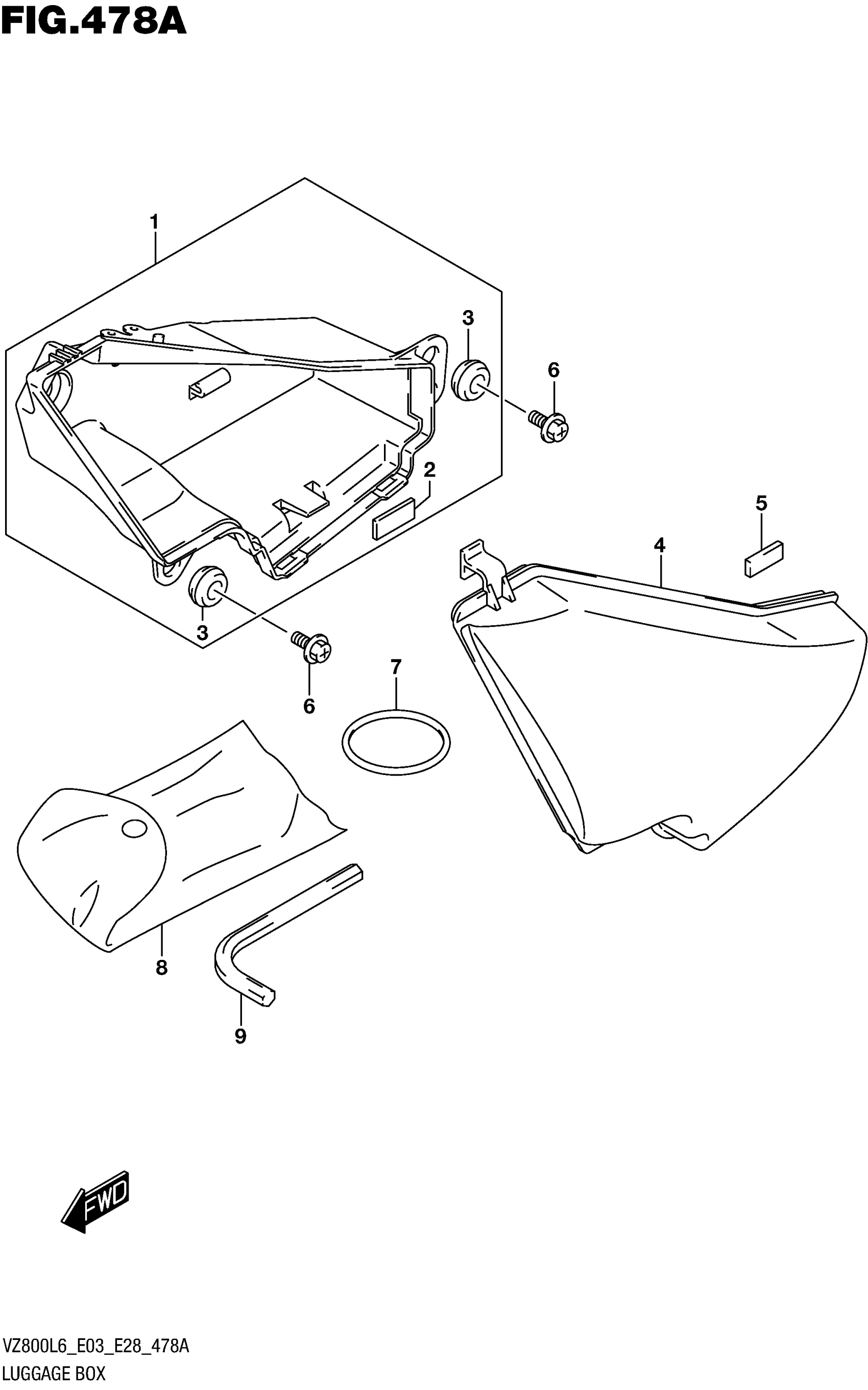

Find the part on the Luggage BOX diagram for your 2016 Suzuki VZ800L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VZ800L6 Luggage BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, LUGGAGE BOX

92210-39G00

1
Out of stock

2

.CUSHION

48128-14FA0

1
Out of stock

3

.CUSHION

33652-35F00

1
Out of stock

4

LID,LUGGAGE BOX

92212-41F01

1
Out of stock

5

CUSHION, BOX NO.2

92213-41F00

1
Out of stock

6

BOLT (6X12)

09111-06107

2
Out of stock

7

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

1
Out of stock

8

TOOL ASSY This part replaces 09800-21055.

09800-21102

1
Out of stock

9

SPANNER, 6 HEXAGON

09816-00050

1
Out of stock
