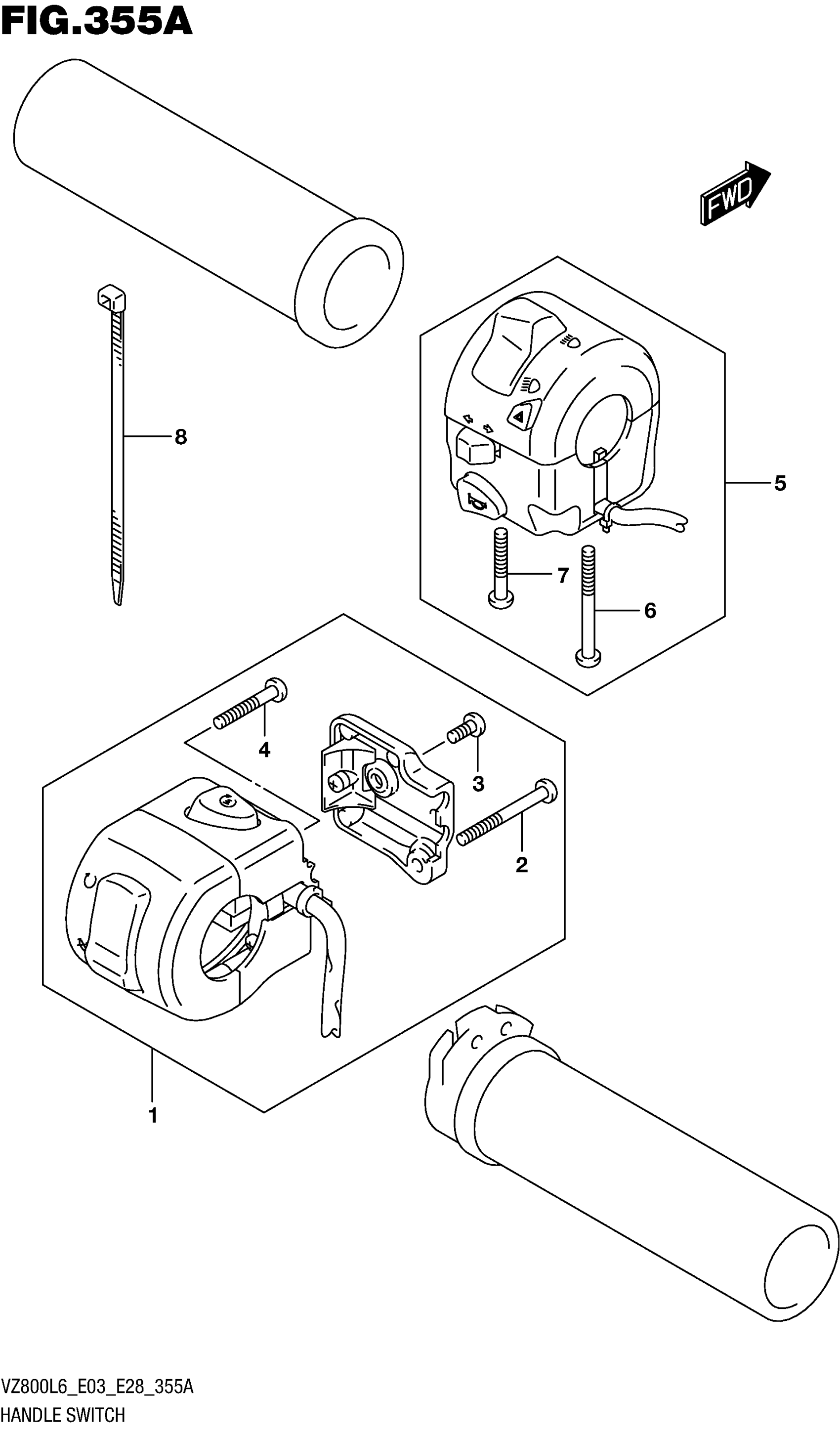

Suzuki VZ800L6 (2016) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH

37200-06J00

$307.70

2

.SCREW

02112-0545B

$2.24

3

.SCREW

02112-0510B

$2.00

4

.SCREW

02112-0535B

$1.95

5

SWITCH ASSY, HANDLE LH

37400-06J00

$341.00

6

.SCREW

02112-0545B

$2.24

7

.SCREW

02112-0530B

$1.45

8

CLAMP (L:145)

09407-14407

$2.80
