2016 Suzuki VZ800L6 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2016 Suzuki VZ800L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

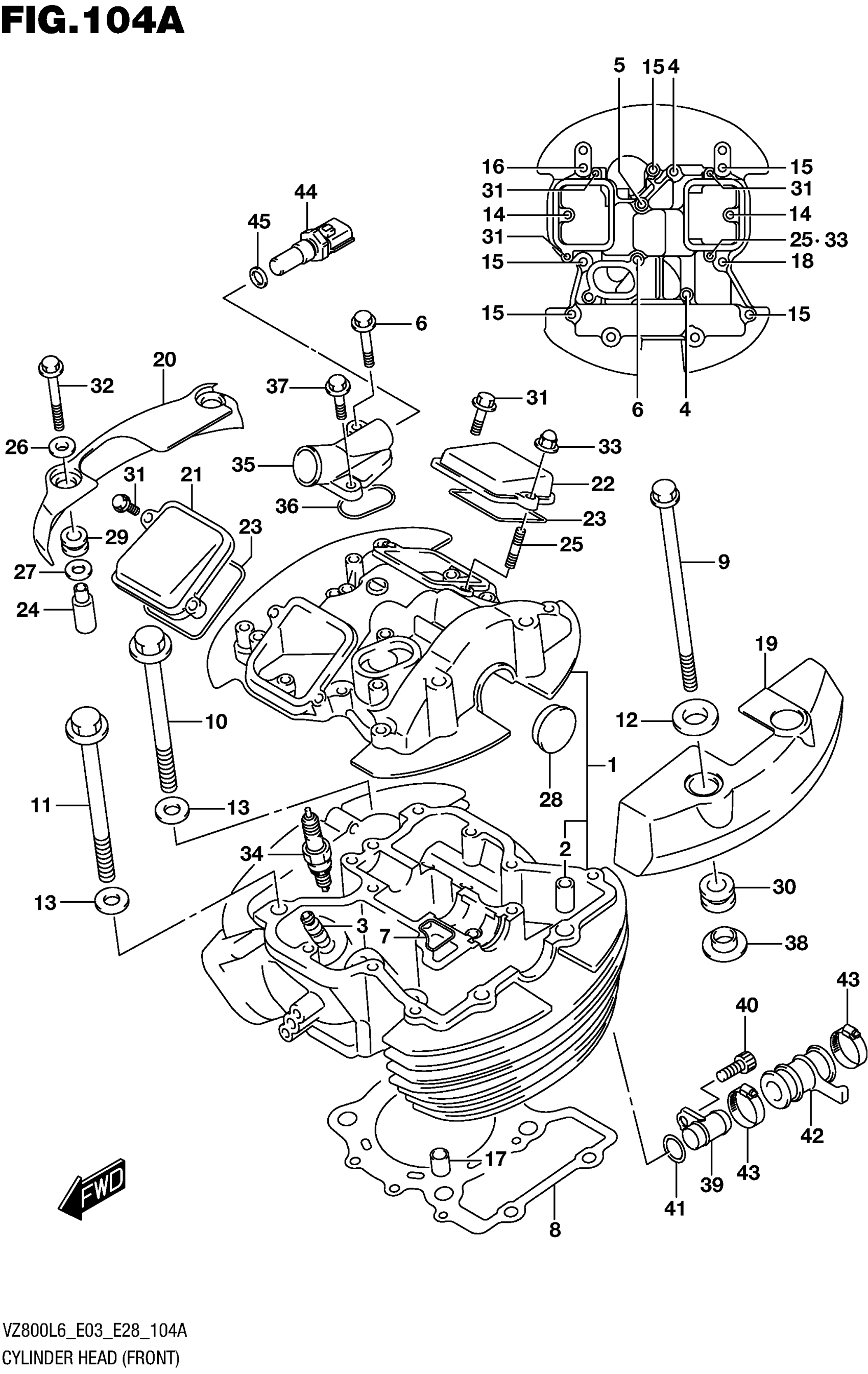

2016 Suzuki VZ800L6 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER FRONT

11101-39G00

1
Out of stock

2

PIN (11X14) This part replaces 09206-11011.

09206-11004

2
Out of stock

3

GUIDE, VALVE (OS:0.3) | OPT

11115-41F70

4
Out of stock

4

BOLT (6X50)

09103-06304

2
Out of stock

5

BOLT (6X55)

09103-06305

1
Out of stock

6

BOLT

07130-0680B

1
Out of stock

7

GASKET, CYLINDER HEAD COVER

11123-38A00

1
Out of stock

8

GASKET, CYLINDER HEAD FRONT

11141-41F00

1
Out of stock

9

BOLT (8X250)

09103-08370

2
Out of stock

10

BOLT (10X155)

09103-10133

2
Out of stock

11

BOLT (10X165)

09103-10134

2
Out of stock

12

WASHER (8.5X24X1.6)

09160-08130

2
Out of stock

13

WASHER (10.5X22X2.3)

09160-10039

4
Out of stock

14

BOLT

01547-0625A

2
Out of stock

15

BOLT

01547-0630A

5
Out of stock

16

BOLT

01547-0640A

1
Out of stock

17

PIN

04211-13189

2
Out of stock

18

BOLT

07120-0630A

1
Out of stock

19

CAP, CYLINDER HEAD COVER LH

11171-41FA0

1
Out of stock

20

CAP, CYLINDER HEAD COVER RH

11172-41F00

1
Out of stock

21

CAP, INSPECTION INTAKE

11175-38A11

1
Out of stock

22

CAP, INSPECTION EXHAUST

11176-38A11

1
Out of stock

23

GASKET, INSPECTION CAP

11177-38A00

2
Out of stock

24

SPACER, HEAD COVER CAP

11179-10F10

2
Out of stock

25

STUD BOLT

09108-06102

1
Out of stock

26

WASHER (6.5X18X1.6)

09160-06084

2
Out of stock

27

WASHER (9.5X20X1)

09160-09016

2
Out of stock

28

PLUG (OD:30)

09241-30004

1
Out of stock

29

CUSHION

09320-09016

2
Out of stock

30

CUSHION

09320-13015

2
Out of stock

31

BOLT

01547-0620A

3
Out of stock

32

BOLT

01547-06557

2
Out of stock

33

NUT

09159-06093

1
Out of stock

34-1

SPARK PLUG (DR7EA) | NGK

09482-00398

2
Out of stock

34-2

SPARK PLUG (X22ESR-U) | DENSO

09482-00222

2
Out of stock

34-3

SPARK PLUG (X24ESR-U) | OPT

09482-00223

2
Out of stock

34-3

SPARK PLUG (X24ESR-U) | DENSO

09482-00223

1
Out of stock

34-4

SPARK PLUG (X27ESR-U) | OPT

09482-00224

2
Out of stock

34-4

PLUG,SPARK (X27ESR-U) | DENSO

09482-00224

1
Out of stock

34-5

SPARK PLUG (DR8EA) | OPT

09482-00399

2
Out of stock

34-5

SPARK PLUG (DR8EA) | NGK

09482-00399

1
Out of stock

34-6

SPARK PLUG (DR9EA) | OPT

09482-00400

2
Out of stock

34-6

SPARK PLUG (DR9EA) | NGK

09482-00400

1
Out of stock

35

UNION, CYLINDER HEAD OUTLET

11181-41F00

1
Out of stock

36

O RING, OUTLET UNION

11182-38A00

1
Out of stock

37

BOLT

07130-0620A

1
Out of stock

38

BUSH

09301-08007

2
Out of stock

39

UNION, CYLINDER HEAD JOINT

17891-41F10

1
Out of stock

40

BOLT

07130-0612A

1
Out of stock

41

O RING (D:2.4,ID:15.8)

09280-16005

1
Out of stock

42

HOSE, HEAD JOINT

17854-41F01

1
Out of stock

43

CLAMP

09402-28513

2
Out of stock

44

SENSOR, WATER TEMP

13650-57F00

1
Out of stock

45

GASKET (12X17X1)

09168-12017

1
Out of stock
