2015 Suzuki VZ800L5 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2015 Suzuki VZ800L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

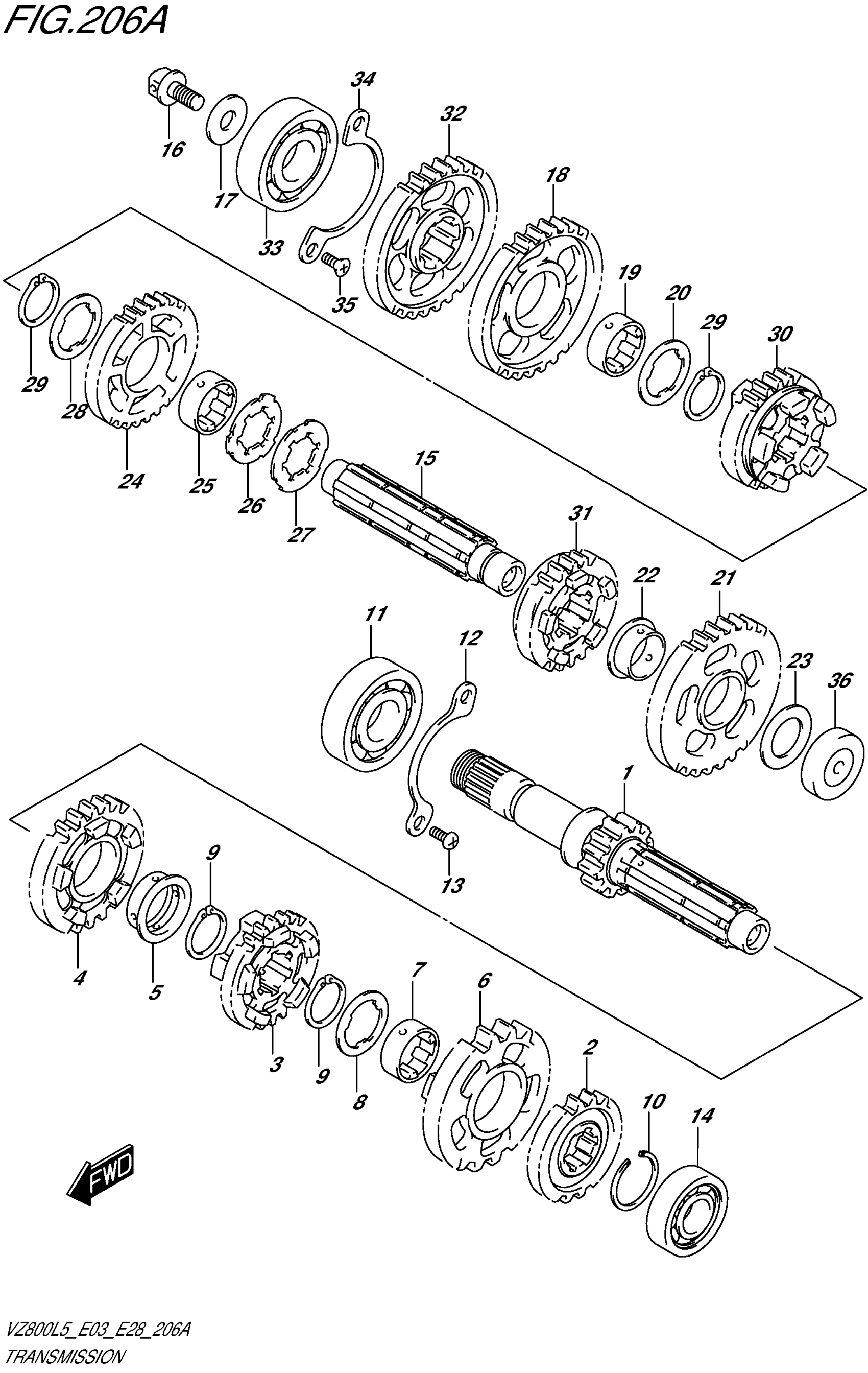

2015 Suzuki VZ800L5 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:13)

24120-41F00

1
Out of stock

2

GEAR, 2ND DRIVE (NT:19)

24221-38A01

1
Out of stock

3

GEAR, 3RD DRIVE (NT:22)

24231-41F00

1
Out of stock

4

GEAR, 4TH DRIVE (NT:25)

24241-41F00

1
Out of stock

5

BUSH, 4TH

24322-19F00

1
Out of stock

6

GEAR, 5TH DRIVE (NT:27)

24251-41F00

1
Out of stock

7

BUSH,6TH DRIVE GEAR

24252-38A10

1
Out of stock

8

LOCK WASHER

09167-25016

1
Out of stock

9

SNAP RING

09380-25003

2
Out of stock

10

CIRCLIP

09380-25014

1
Out of stock

11

BEARING (25X62X17) | RH

09262-25080

1
Out of stock

12

RETAINER

24741-38A00

1
Out of stock

13

SCREW (6X12)

09125-06122

2
Out of stock

14

BEARING (20X47X14) | LH

09262-20139

1
Out of stock

15

DRIVE SHAFT

24131-38A03

1
Out of stock

16

NOZZLE,DRIVE SHAFT

24135-38A02

1
Out of stock

17

WASHER

08211-10305

1
Out of stock

18

GEAR, 1ST DRIVEN (NT:32)

24311-41F00

1
Out of stock

19

BUSH

24332-07A00

1
Out of stock

20

LOCK WASHER

09167-28001

1
Out of stock

21

GEAR, 2ND DRIVEN (NT:31)

24321-41F00

1
Out of stock

22

BUSH

09301-22002

1
Out of stock

23

SHIM (20X34X1)

09181-20251

1
Out of stock

24

GEAR, 3RD DRIVEN (NT:27)

24331-41F00

1
Out of stock

25

BUSH

24332-07A00

1
Out of stock

26

WASHER | RH

09169-28001

1
Out of stock

27

LOCK WASHER | LH

09167-28002

1
Out of stock

28

LOCK WASHER

09167-28001

1
Out of stock

29

CIRCLIP

08331-31289

2
Out of stock

30

GEAR, 4TH DRIVEN (NT:25)

24341-41F00

1
Out of stock

31

GEAR, 5TH DRIVEN (NT:22)

24351-41F00

1
Out of stock

32

GEAR, REDUCTION DRIVE (NT:30)

24621-38A00

1
Out of stock

33

BEARING (20X52X15) | RH

09262-20073

1
Out of stock

34

RETAINER

24751-38A00

1
Out of stock

35

SCREW (6X12)

09126-06011

2
Out of stock

36

BEARING (20X52X15) | LH

09262-20080

1
Out of stock
