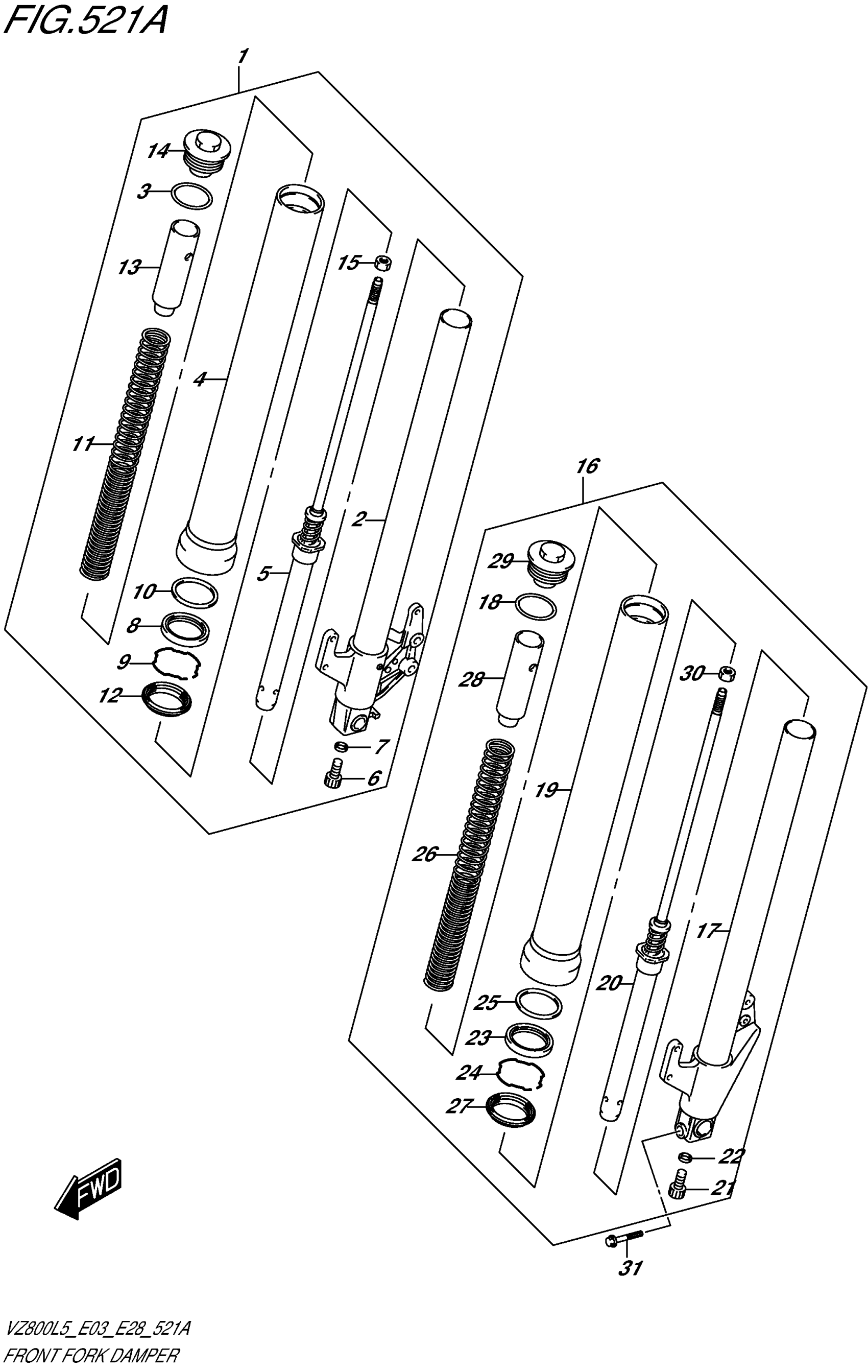

Suzuki VZ800L5 (2015) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-39G20

Unavailable

2

TUBE, INNER RH

51110-39G20

Unavailable

3

O RING

51117-39G20

$7.75

4

TUBE, OUTER

51130-39G20

$482.85

5

CYLINDER

51146-39G20

$315.00

6

BOLT

51147-05H00

$6.10

7

GASKET

51148-41310

$2.14

8

SEAL, OIL

51153-10G50

$18.94

9

RING, OIL SEAL STOPPER

51156-49440

$4.75

10

WASHER

51158-05A00

$5.34

11

SPRING, FRONT

51171-39G20

$116.28

12

SEAL, DUST

51173-14F00

$21.12

13

SPACER, SPRING

51176-21H00

$30.92

14

CAP

51351-39G20

Unavailable

15

.NUT, ROD

51352-13A60

$3.42

16

DAMPER ASSY, FRONT FORK LH

51104-39G20

Unavailable

17

TUBE, INNER LH

51120-39G20

Unavailable

18

O RING

51117-39G20

$7.75

19

TUBE, OUTER

51130-39G20

$482.85

20

CYLINDER

51146-39G20

$315.00

21

BOLT

51147-05H00

$6.10

22

GASKET

51148-41310

$2.14

23

SEAL, OIL

51153-10G50

$18.94

24

RING, OIL SEAL STOPPER

51156-49440

$4.75

25

WASHER

51158-05A00

$5.34

26

SPRING, FRONT

51171-39G20

$116.28

27

SEAL, DUST

51173-14F00

$21.12

28

SPACER, SPRING

51176-21H00

$30.92

29

CAP

51351-39G20

Unavailable

30

.NUT, ROD

51352-13A60

$3.42

31

BOLT, AXLE STOPPER

51166-10G10

$6.08
