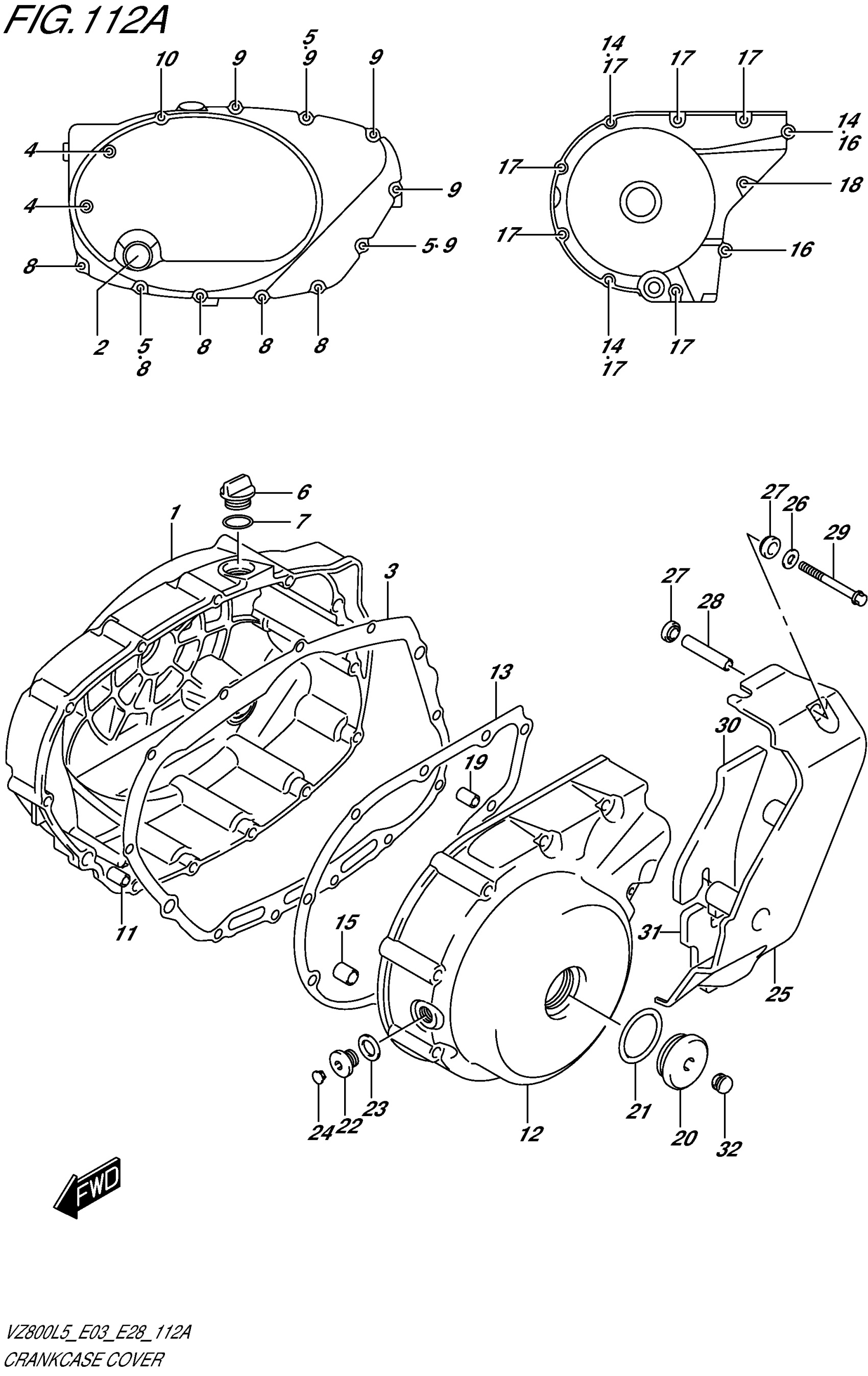

Suzuki VZ800L5 (2015) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-41F00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$16.66

3

GASKET, CLUTCH COVER

11482-41F00

$15.68

4

BOLT (6X105)

09103-06270

$4.70

5

GASKET (5.8X13X1.2)

09168-06023

$2.01

6

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

7

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

8

BOLT (6X30)

09103-06213

$2.53

9

BOLT (6X50)

09103-06238

$2.65

10

BOLT (6X85)

09103-06226

$4.18

11

PIN

04211-09189

$1.64

12

COVER, GENERATOR

11351-41F10

$437.40

13

GASKET, GENERATOR COVER

11483-41F00

$13.01

14

GASKET (5.8X13X1.2)

09168-06023

$2.01

15

PIN (8.4X11X20)

09206-11007

$2.63

16

BOLT (6X40)

09103-06215

$2.80

17

BOLT (6X55)

09103-06216

$2.80

18

BOLT (6X85)

09103-06226

$4.18

19

PIN

04211-09189

$1.64

20

PLUG (36X10)

09259-36008

$7.37

21

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

22

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.80

23

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

24

CAP (OD:12)

09250-08012

$2.35

25

COVER, SECONDARY DRIVE

11361-41F00

$251.28

26

WASHER (6.5X14X1.6)

09160-06125

$1.89

27

WASHER (8.7X16X5)

09161-09005

$2.33

28

SPACER (6.5X9X41.3)

09180-06280

$5.52

29

BOLT (6X55)

09103-06216

$2.80

30

CUSHION, SEC DRIVE COVER NO.1

11362-39G00

$16.92

31

CUSHION, SEC DRIVE COVER NO.2

11363-39G00

$11.93

32

CAP (OD:12)

09250-08013

$2.92
