2013 Suzuki VZ800L3 Magneto Diagram

← All diagrams

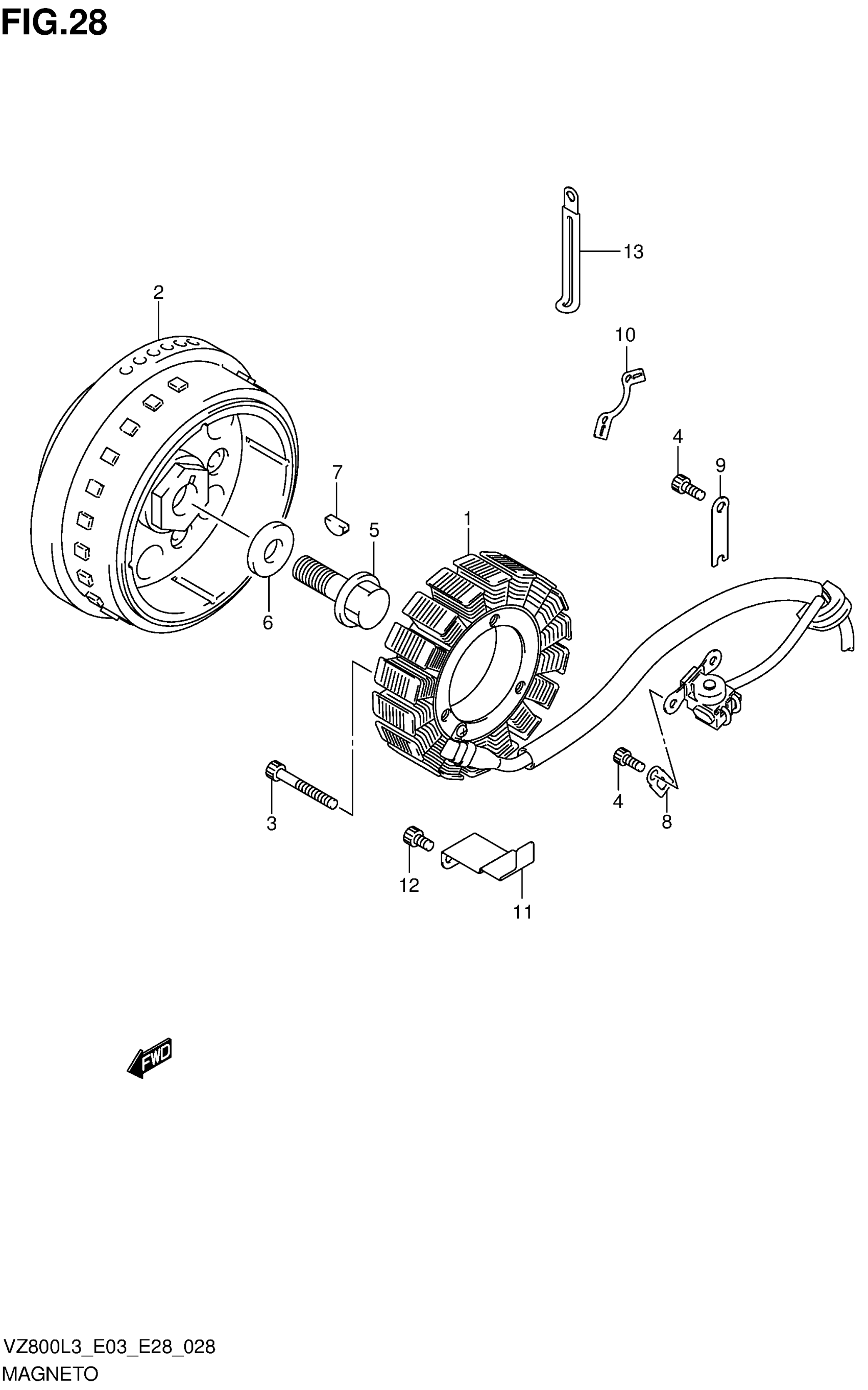

Find the part on the Magneto diagram for your 2013 Suzuki VZ800L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki VZ800L3 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR

32101-41F20

1
Out of stock

2

ROTOR

32102-41F20

1
Out of stock

3

BOLT

07130-0640A

—
Out of stock

4

BOLT

07130-0510A

4
Out of stock

5

BOLT (14X43)

09103-14001

1
Out of stock

6

WASHER (14X29X4)

09160-14021

1
Out of stock

7

KEY

09420-05007

1
Out of stock

8

CLAMP | NO.1

31497-45000

1
Out of stock

9

CLAMP | NO.2

32371-38A10

1
Out of stock

10

CLAMP | NO.5

32371-41F00

1
Out of stock

11

CLAMP | NO.3

32371-45C00

1
Out of stock

12

BOLT

07130-0610A

1
Out of stock

13

1

$2.88

In stock
