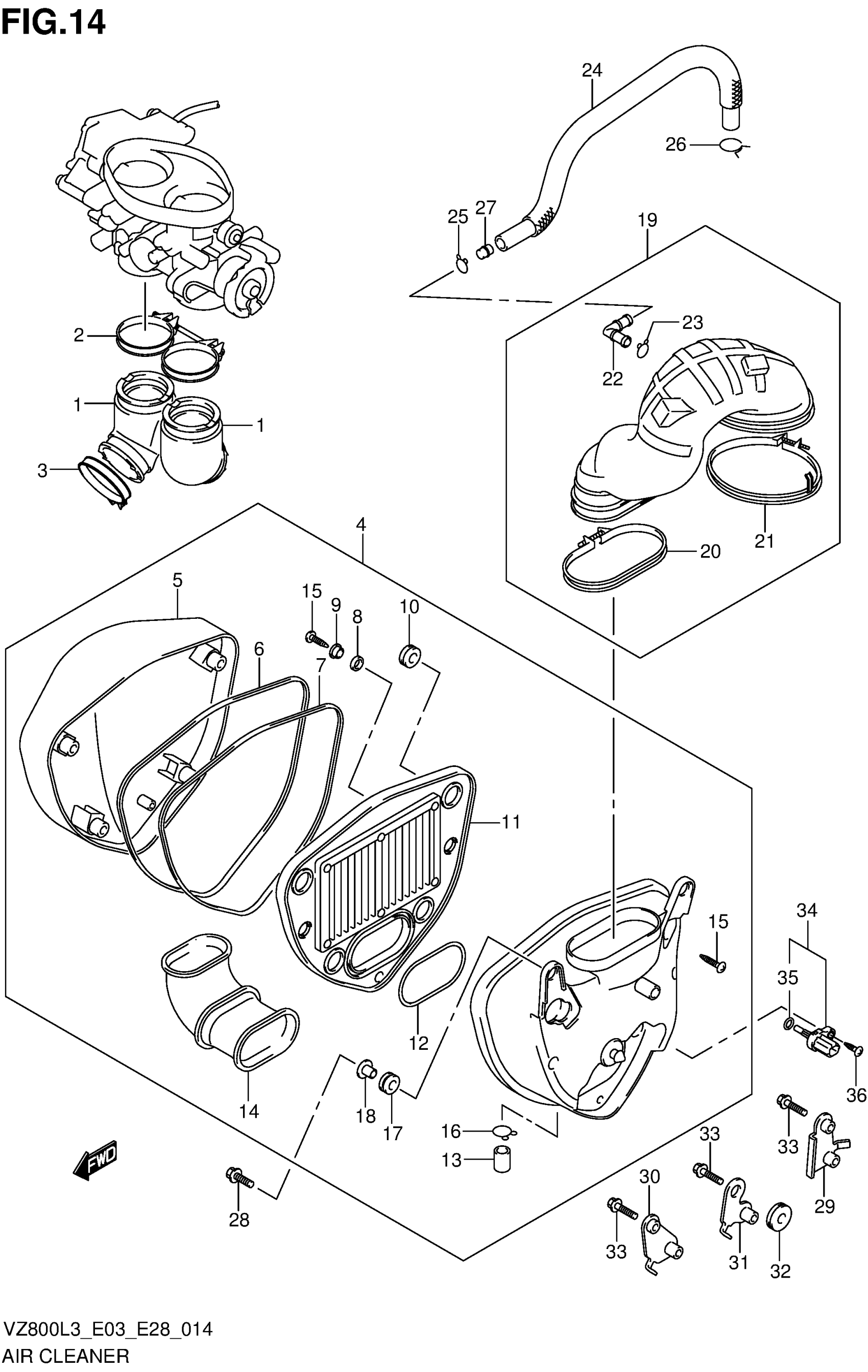

Find the part on the Air Cleaner diagram for your 2013 Suzuki VZ800L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki VZ800L3 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

2

$38.70

In stock

2

CLAMP

13170-39G00

1

$33.67

In stock

3

CLAMP

13170-15G00

2

$7.25

In stock

4

CASE ASSY,AIR CLEANER

13701-39G20

1

$523.42

In stock

5

CAP

13741-39G20

1

$292.80

In stock

6

GASKET

13727-39G20

1

$19.62

In stock

7

GASKET

13726-39G20

1

$19.97

In stock

8

CUSHION

13747-39G20

4

$3.32

In stock

9

WASHER

09169-06082

4
Out of stock

10

CUSHION

13747-41F00

4

$3.19

In stock

11

FILTER

13780-39G20

1

$49.97

In stock

12

GASKET, FILTER

13746-39G20

1

$14.00

In stock

13

.PLUG

13859-41B10

1

$7.56

In stock

14

TUBE, INLET

13891-39G20

1
Out of stock

15

SCREW

03541-0525B

8

$2.52

In stock

16

CLIP

09401-14301

1

$2.50

In stock

17

CUSHION

09320-09016

2
Out of stock

18

COLLAR

13812-29C50

2
Out of stock

19

TUBE ASSY, OUTLET

13880-39G21

1
Out of stock

20

CLAMP

13826-41F20

1

$28.25

In stock

21

CLAMP

13826-39G21

1
Out of stock

22

JOINT

13858-14D20

1
Out of stock

23

CLIP

09401-15101

1
Out of stock

24

TUBE, BREATHER

13853-39G20

1
Out of stock

25

CLIP

09401-15101

1
Out of stock

26

CLIP

09401-16301

1
Out of stock

27

1

$4.97

In stock

28

SCREW (6X20)

09139-06063

2

$4.35

In stock

29

BRACKET, NO.1

13761-39G20

1
Out of stock

30

BRACKET, NO.2

13762-39G20

1
Out of stock

31

BRACKET, NO.3

13763-39G20

1
Out of stock

32

CUSHION

09320-08028

1
Out of stock

33

BOLT

01547-0625A

3
Out of stock

34

SENSOR, AIR TEMP

13650-41F10

1

$71.40

In stock

35

O-RING

13655-41F10

1
Out of stock

36

SCREW

03511-0516B

1

$2.87

In stock
