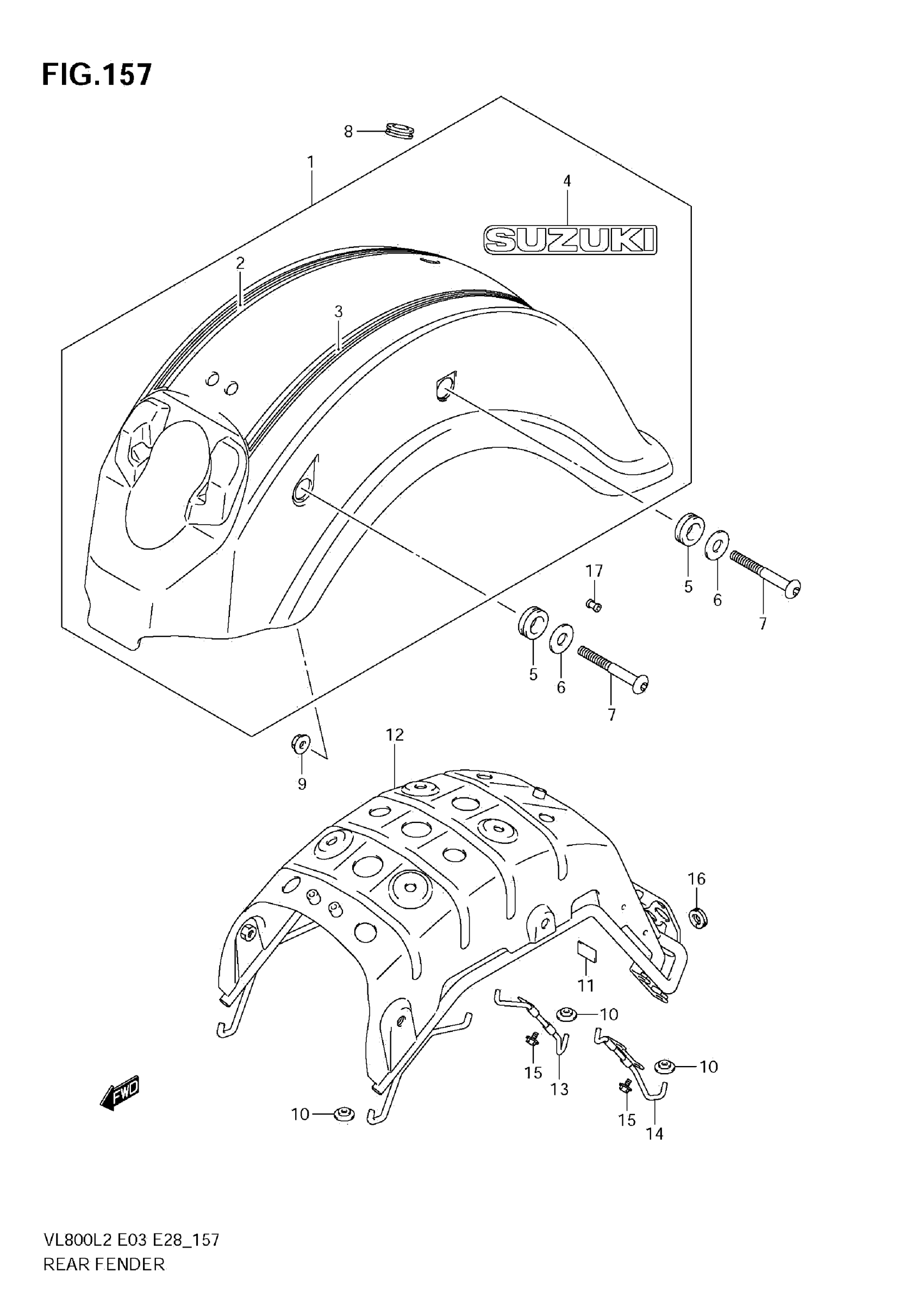

Suzuki VZ800L2 (2012) REAR FENDER (VL800C E28) Diagram

#

Description
Price

1

FENDER, REAR (RED/BLACK)

63110-43H20-HYA

$988.13

1

FENDER, REAR (WHITE/GRAY)

63110-43H20-JEW

Unavailable

2

TAPE SET, RH | FOR HYA

68170-43H00-JFZ

Unavailable

2

TAPE SET, RH | FOR JEW

68170-43H00-JGA

Unavailable

3

TAPE SET, LH | FOR HYA

68710-43H00-JFZ

Unavailable

3

TAPE SET, LH | FOR JEW

68710-43H00-JGA

Unavailable

4

.EMBLEM,"SUZUKI" (SILVER) | FOR HYA This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

4

EMBLEM,"SUZUKI" | FOR JEW This part replaces 68271-34A00-YJH.

68271-34A01-YJH

Unavailable

5

CUSHION

47191-24F00

$4.86

6

WASHER (15.5X26X2.3)

09160-15002

$1.70

7

BOLT

63161-41F00

$8.85

8

CUSHION

09320-15008

$3.56

9

NUT

08316-1008B

$2.65

10

CUSHION

09320-06026

$4.45

11

CUSHION,FR FEND This part replaces 53145-17C11.

53145-17C12

$5.78

12

PLATE, REAR FENDER

63130-43H00

$468.58

13

BRACKET, LOWER RH

63150-43H00

$46.25

14

BRACKET, LOWER LH

63160-43H00

$46.25

15

BOLT

01550-0610B

$2.43

16

GROMMET

09308-10017

$5.65

17

PLUG (OD:9)

09250-07004

$3.72
