2012 Suzuki VZ800L2 Rear Brake Diagram

← All diagrams

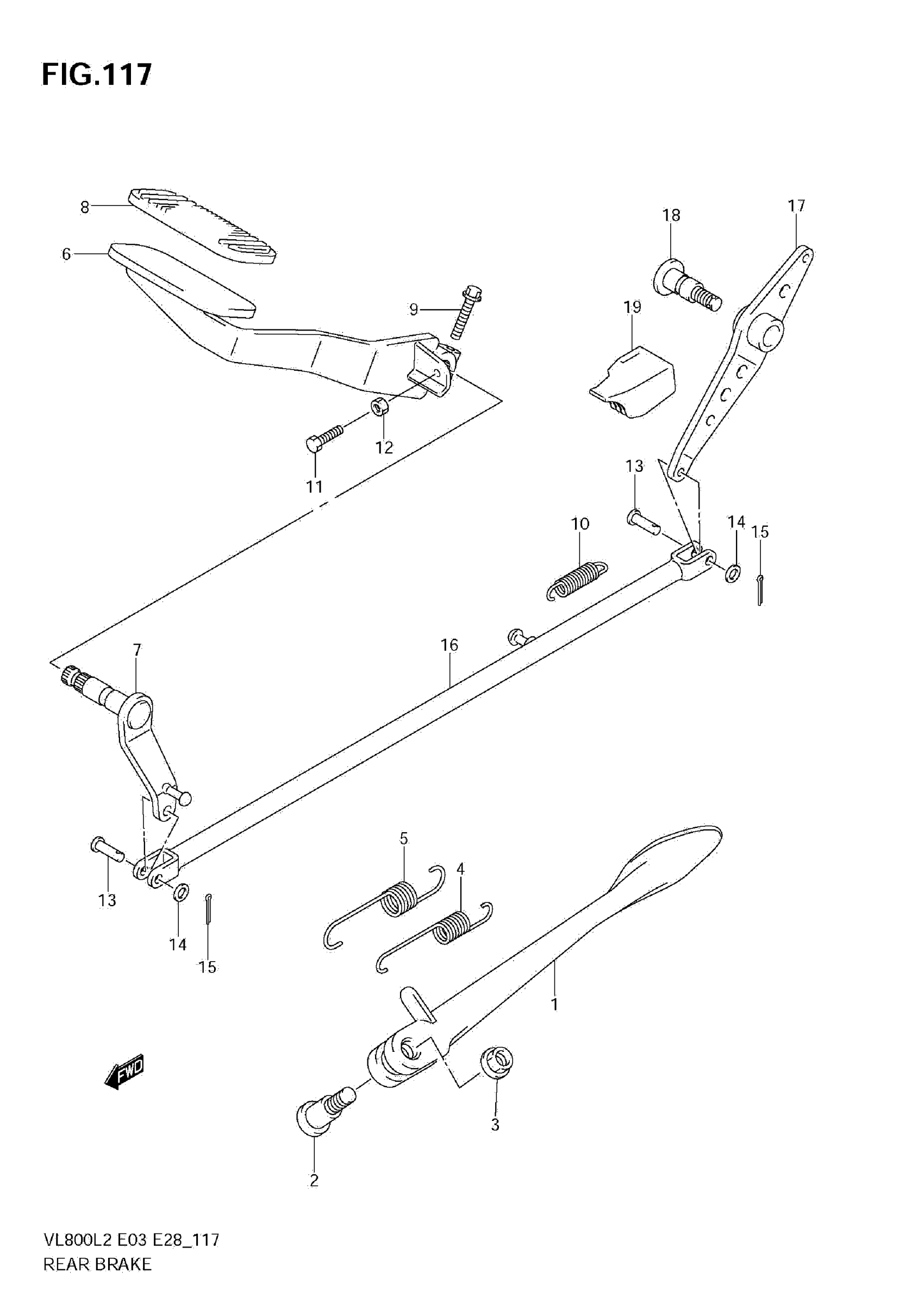

Find the part on the Rear Brake diagram for your 2012 Suzuki VZ800L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki VZ800L2 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-41F01

1
Out of stock

2

BOLT (10X37.5)

09111-10058

1
Out of stock

3

NUT, PROP STAND

42321-03FK0

1
Out of stock

4

SPRING

09443-14066

1
Out of stock

5

SPRING

09443-19012

1

$5.70

In stock

6

PEDAL, BRAKE

43110-41F11

1
Out of stock

7

ARM, BRAKE ROD

43120-41F00

1
Out of stock

8

RUBBER,BRAKE PEDAL This part replaces 43151-10F00.

43151-10F01

1
Out of stock

9

BOLT

07120-0625A

1
Out of stock

10

SPRING

09443-12051

1
Out of stock

11

BOLT

01500-06207

1
Out of stock

12

.NUT

08310-00067

1
Out of stock

13

PIN (6X18.2)

09200-06068

2
Out of stock

14

WASHER

08322-0106B

2
Out of stock

15

COTTER PIN

04111-2015A

2
Out of stock

16

ROD, FRONT

43130-41F00

1
Out of stock

17

LINK, REAR BRAKE

43140-41F00

1
Out of stock

18

SHAFT, BRAKE PEDAL

43142-27C00

1
Out of stock

19

RUBBER,BRAKE LINK This part replaces 43151-41F00.

43151-41F01

1
Out of stock
