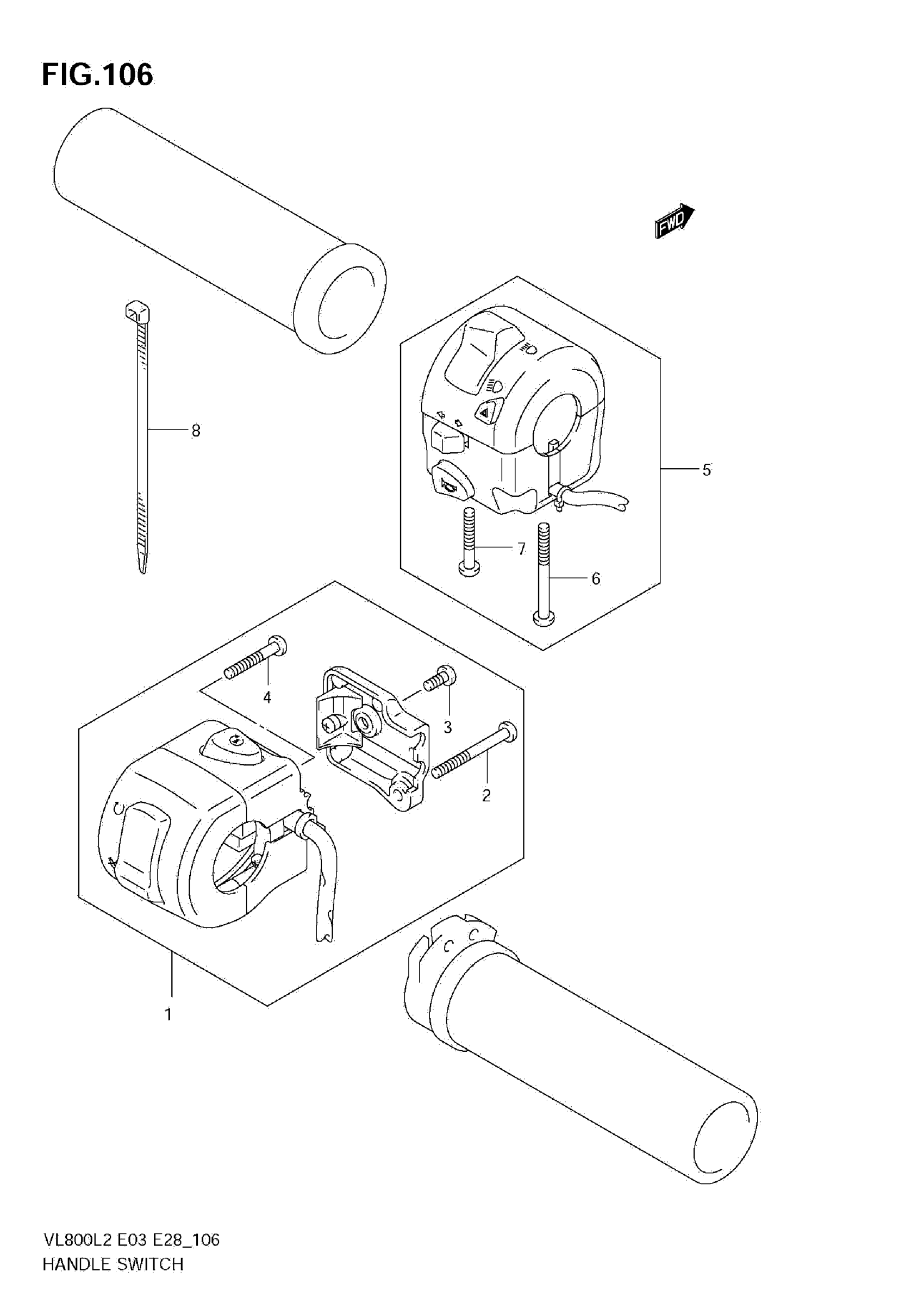

Suzuki VZ800L2 (2012) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY,HAN This part replaces 37200-41FC1.

37200-41FC2

$281.93

2

SCREW

02112-0545B

$2.24

3

SCREW

02112-0510B

$2.00

4

SCREW

02112-0535B

$1.95

5

SWITCH ASSY, HANDLE LH

37400-41FC0

$341.00

6

SCREW

02112-0545B

$2.24

7

SCREW

02112-0530B

$1.45

8

CLAMP (L:145)

09407-14407

$2.80
