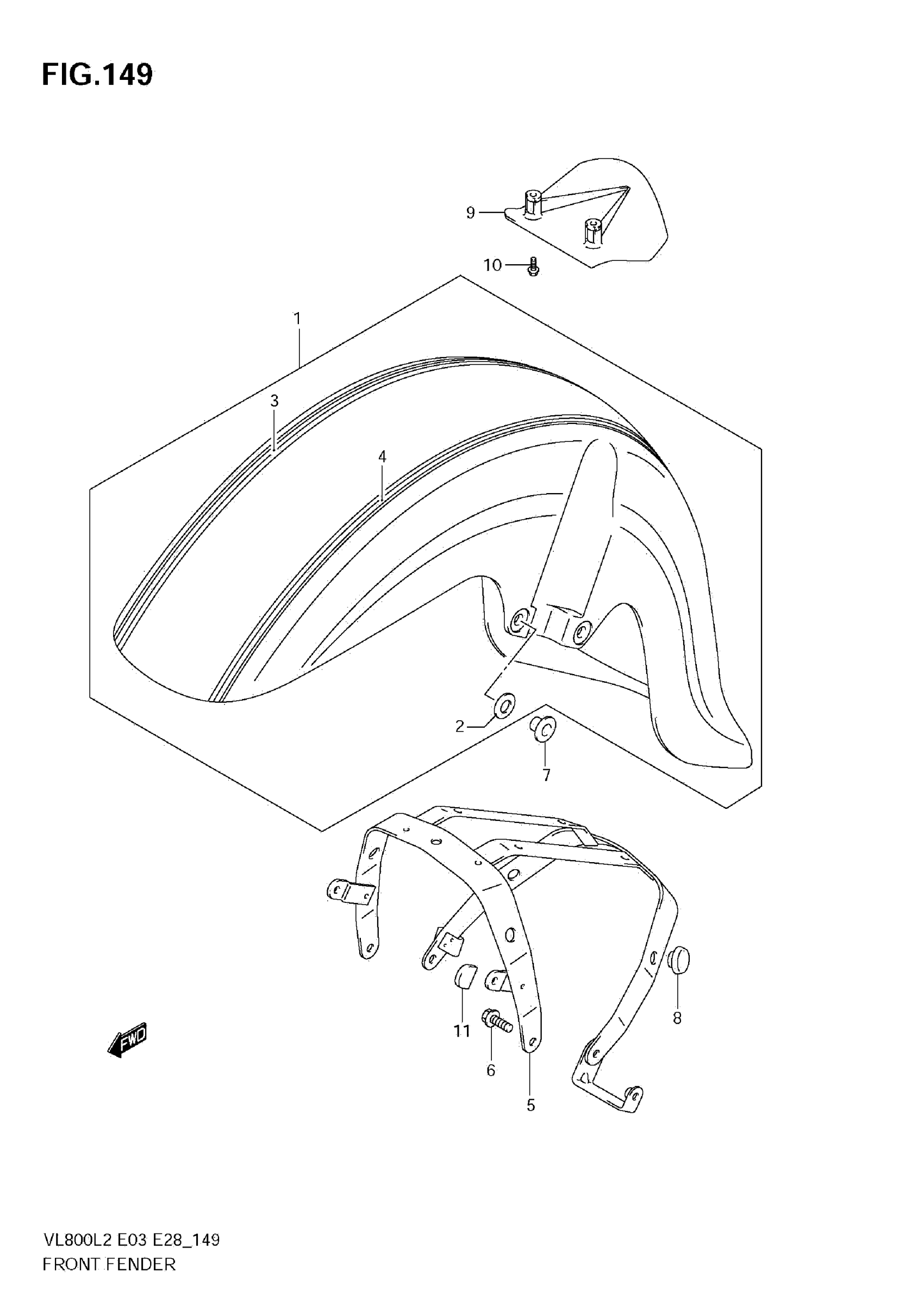

Suzuki VZ800L2 (2012) FRONT FENDER (VL800T E28) Diagram

#

Description

Price

1

FENDER,FRONT This part replaces 53110-43HA1-AAB.

53110-43HA2-AAB

$899.00

1

FENDER, FRONT (RED/SILVER) This part replaces 53110-43HA1-AAC.

53110-43HA2-AAC

$921.47

2

CUSHION

53121-41FA0

$6.15

3

TAPE SET, RH (MOONLAND/SILVER) | FOR AAB

68150-43H00-AAD

Unavailable

3

TAPE SET, RH (BLUE/SILVER) | FOR AAC

68150-43H00-AAE

$52.65

4

TAPE SET, LH (MOONLAND/SILVER) | FOR AAB

68750-43H00-AAD

Unavailable

4

TAPE SET, LH (BLUE/SILVER) | FOR AAC

68750-43H00-AAE

Unavailable

5

BRACE, FRONT FENDER

53120-43H10

$155.58

6

BOLT

01547-0620A

$2.01

7

WASHER,FRONT FENDER

53276-41F10

$10.70

8

CUSHION

09321-10007

$2.80

9

WING, FRONT

53181-41F00

$17.96

10

BOLT (6X16)

09113-06001

$2.75

11

CUSHION

09329-18001

$1.89
