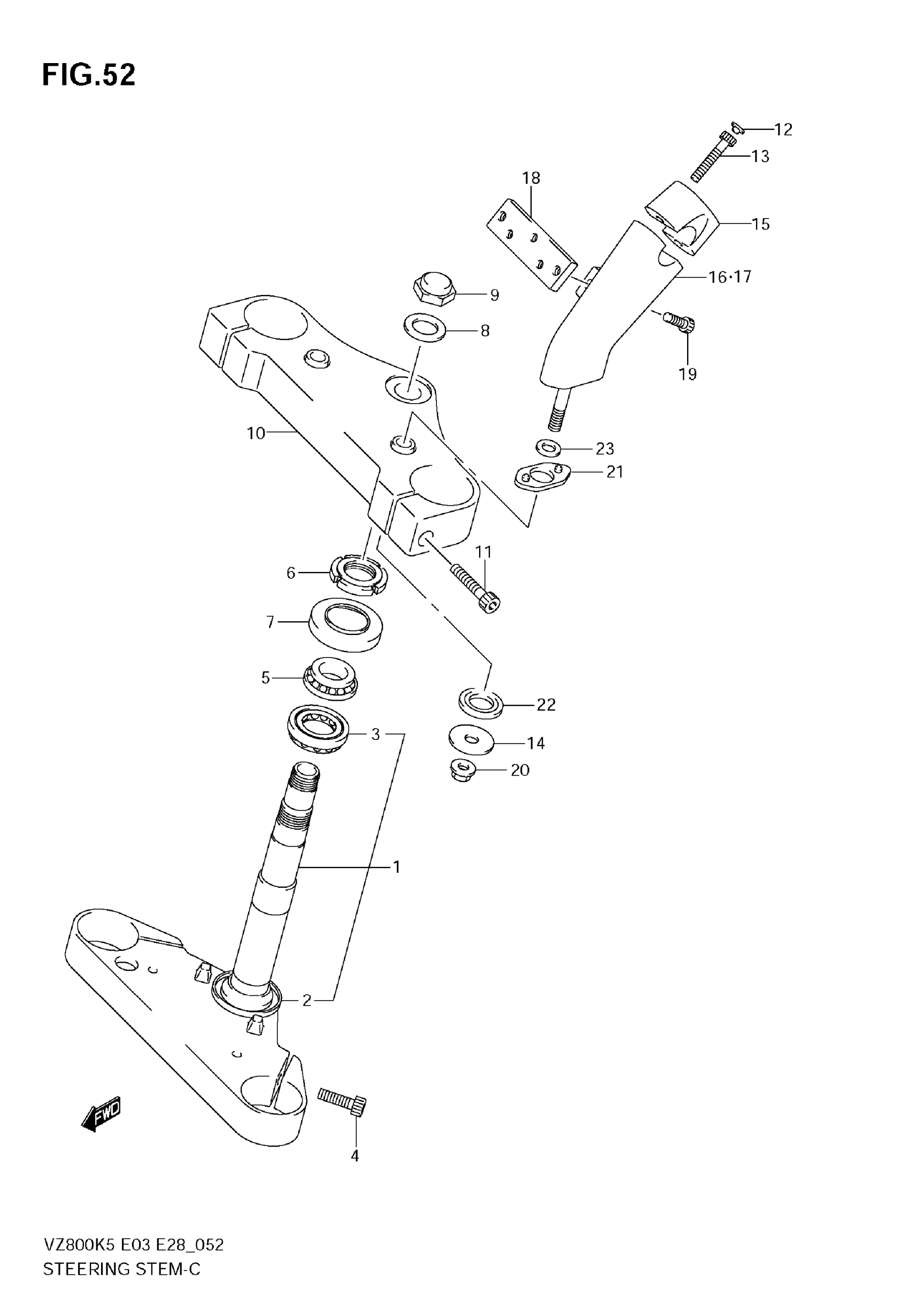

Suzuki VZ800 (2009) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER | Includes Item(s) 2 - 3

51410-39G00

Unavailable

2

SEAL, STEERING LOWER

51644-12C00

$8.65

3

BEARING (30X55X17)

09267-30010

$43.41

4

BOLT, BRACKET UNDER This part replaces 51451-39G00.

51434-39G00

$9.83

5

BEARING (25X47X15)

09267-25009

$56.72

6

NUT, STEM

51631-28000

$19.60

7

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

8

WASHER, STEM

51356-10D03

$8.47

9

NUT, STEM

51353-24B00

$34.62

10

BRACKET, UPPER

51311-39G00

Unavailable

11

BOLT

51381-48E10

$7.81

12

CAP, BOLT

09250-06011

$2.53

13

BOLT, HOLDER

51451-32E40

$7.03

14

WASHER

51355-16G00

$6.52

15

HOLDER, HANDLE UPPER

56211-39G00

$109.53

16

HOLDER, HANDLE LOWER, R

56224-39G00

Unavailable

17

HOLDER, HANDLE LOWER, L

56225-39G00

Unavailable

18

BRIDGE

56226-39G00

Unavailable

19

BOLT

07130-0820B

$3.19

20

NUT

08319-31107

$2.73

21

RUBBER HANDLE, UPPER

56245-39G00

$10.62

22

RUBBER, HANDLE, LOWER

56245-16G00

$7.95

23

WASHER

08322-01107

$1.88
