Description

Price

1

GASKET SET | OPT; Includes Item(s) 2 - 17

11402-41820

$239.40

2

GASKET, HEAD COVER | NOT SHOWN

11123-38A00

$3.55

3

GASKET, CYLINDER HEAD FRONT | NOT SHOWN

11141-41F00

$36.39

4

GASKET, CYLINDER HEAD REAR | NOT SHOWN

11142-41F00

$36.21

5

GASKET, INSPECTION CAP | NOT SHOWN

11177-38A00

$4.09

6

GASKET, BREATHER COVER | NOT SHOWN

11187-41F20

$8.62

7

GASKET, CYLINDER | NOT SHOWN

11241-41F00

$7.51

8

GASKET, CLUTCH COVER | NOT SHOWN

11482-41F00

$15.68

9

GASKET, GENERATOR COVER | NOT SHOWN

11483-41F00

$13.01

10

GASKET, EXHAUST PIPE | NOT SHOWN

14181-10F00

$11.82

11

O RING, OIL STRAINER CAP | NOT SHOWN

16528-38A00

$13.27

12

GASKET (5.8X13X1.2) | NOT SHOWN

09168-06023

$2.01

13

GASKET (8.2x14x1) | NOT SHOWN

09168-08029

$2.31

14

GASKET (10X14X3.6) | NOT SHOWN

09168-10002

$1.96

15

GASKET, (13.8X18.8) | NOT SHOWN

09168-14002

$2.83

16

GASKET (16X22X2) | NOT SHOWN

09168-16002

$1.89

17

O RING (D:1.2,ID:4.0) | NOT SHOWN

09280-04004

$1.76

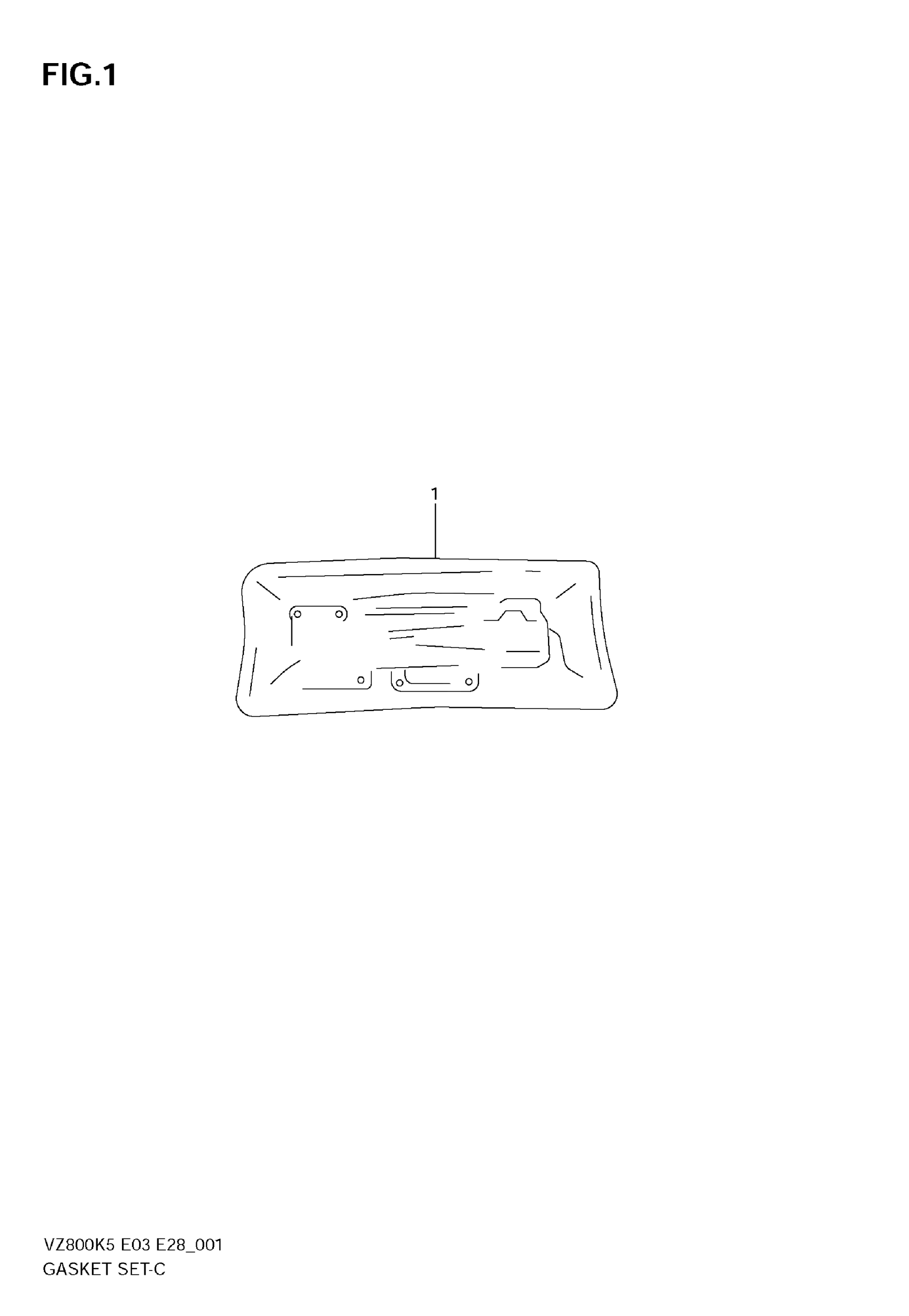

Suzuki VZ800 (2009) GASKET SET Diagram
