Description

Price

1

PUMP ASSY, FUEL | MODEL K5/K6

15100-39G00

$817.87

1

PUMP ASSY, FUEL | MODEL K7/K8/K9; Includes Item(s) 2 - 16

15100-39G10

$817.87

2

CUSHION

15111-41F10

$19.93

3

HOLDER

15112-39G00

Unavailable

4

BAND, FUEL PUMP

15115-10F00

Unavailable

5

SCREW

15116-10F00

$6.30

6

SCREW

15116-10F10

Unavailable

7

THERMISTOR | MODEL K5/K6

15170-39G00

$319.60

7

THERMISTOR | MODEL K7/K8/K9

15170-39G10

$237.43

8

SPRING WASHER

15172-35F00

$8.13

9

NUT

15173-35F00

Unavailable

10

PLATE ASSY

15410-39G00

Unavailable

11

STRAINER, FUEL

15420-39G00

$115.48

12

VESSEL

15425-39G00

Unavailable

13

COVER

15426-39G00

Unavailable

14

CLIP

15427-39G00

Unavailable

15

SCREW

15429-41F20

Unavailable

16

HARNESS | MODEL K7/K8/K9

15185-39G10

Unavailable

17

O-RING

15201-35F00

$25.27

18

HOSE, FUEL | MODEL K5/K6/K7/K8

15810-41F00

$52.83

18

HOSE, FUEL | MODEL K9 This part replaces 15810-39G00.

15810-39G03

$62.72

19

BOLT

07120-0612B

$2.80

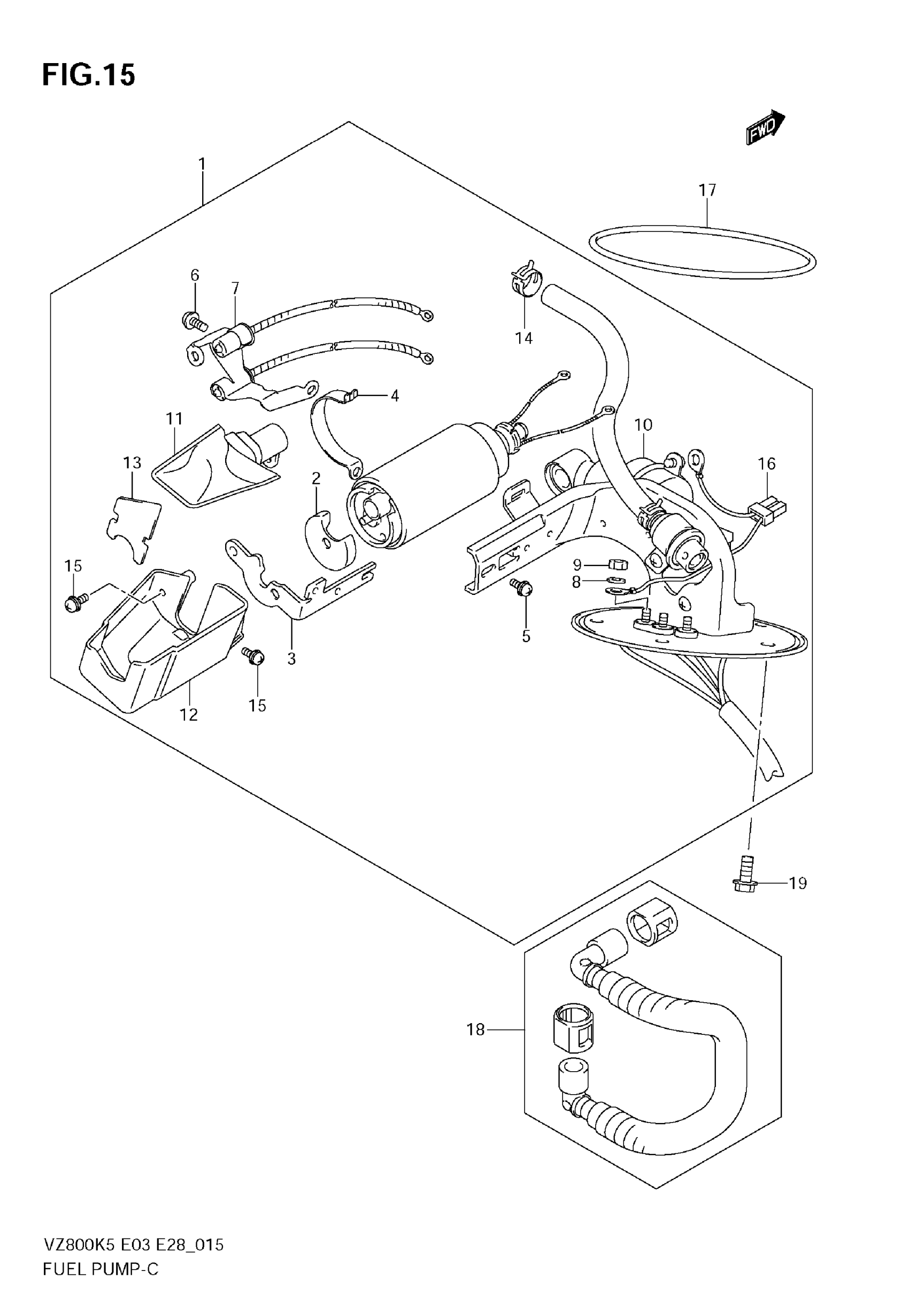

Suzuki VZ800 (2009) FUEL PUMP Diagram

PUMP ASSY, FUEL | MODEL K5/K6

PUMP ASSY, FUEL | MODEL K7/K8/K9; Includes Item(s) 2 - 16

CUSHION

HOLDER

BAND, FUEL PUMP

SCREW

SCREW

THERMISTOR | MODEL K5/K6

THERMISTOR | MODEL K7/K8/K9

SPRING WASHER

NUT

PLATE ASSY

STRAINER, FUEL

VESSEL

COVER

CLIP

SCREW

HARNESS | MODEL K7/K8/K9

O-RING

HOSE, FUEL | MODEL K5/K6/K7/K8

HOSE, FUEL | MODEL K9 This part replaces 15810-39G00.

BOLT
