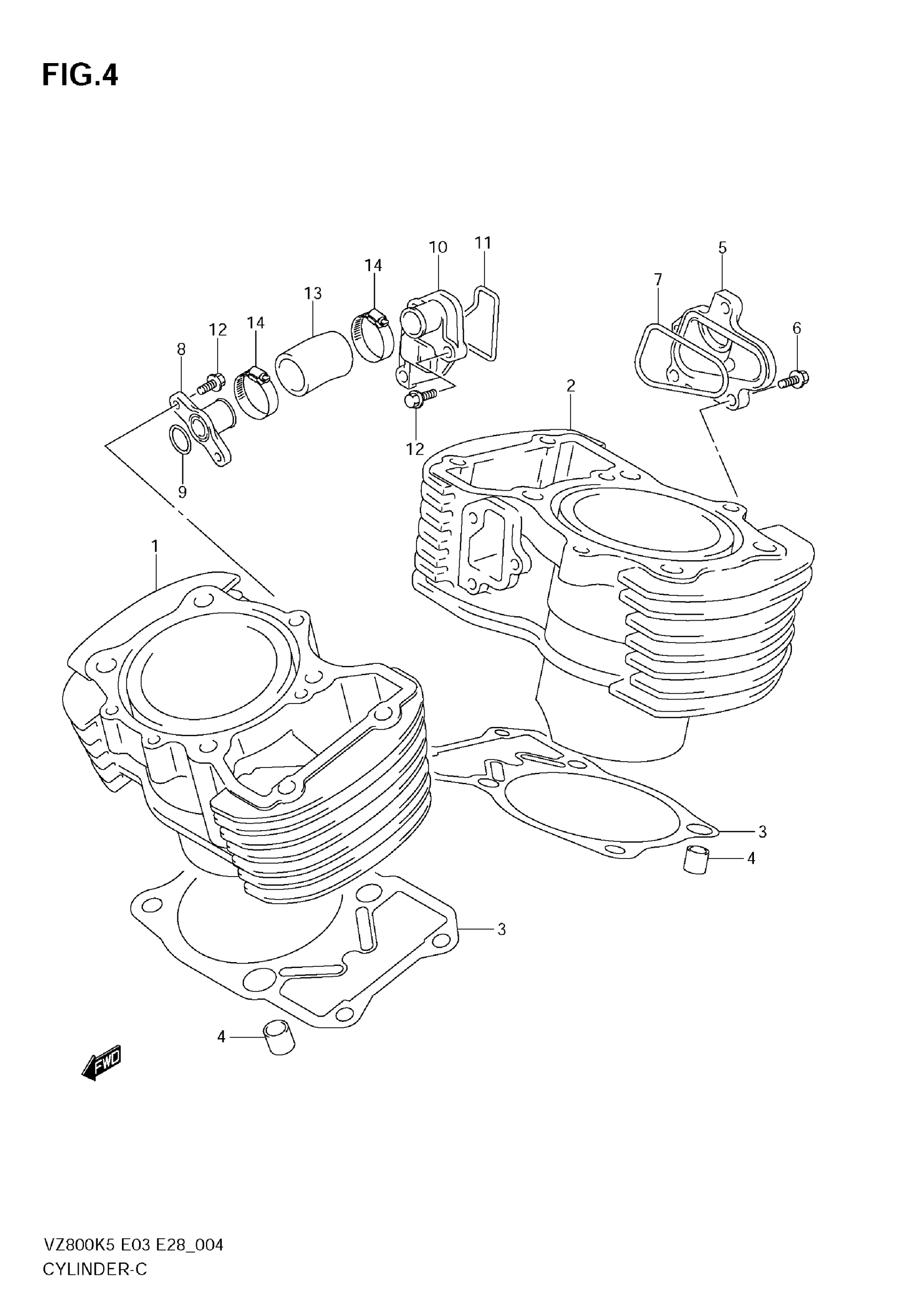

Suzuki VZ800 (2009) CYLINDER Diagram

#

Description
Price

1

CYLINDER, FRONT

11210-41F00-0F0

$920.50

2

CYLINDER, REAR

11220-41F00-0F0

$920.50

3

GASKET, CYLINDER

11241-41F00

$7.51

4

KNOCK PIN

04211-13189

$2.19

5

CONNECTOR, WATER INLET

11237-41F00

$50.20

6

BOLT

01547-0620A

$2.01

7

O RING

11247-38A00

$3.35

8

UNION, WATER INLET

11235-41F00

$28.80

9

O RING

09280-16005

$2.24

10

UNION, OUTLET

17892-41F00

$36.22

11

O-RING,CYL OUTLET UNION

17899-41F00

$8.17

12

BOLT

01547-0616A

$2.01

13

HOSE, CYLINDER JOINT

17851-01A00

$24.93

14

CLAMP

09402-28513

$6.31
