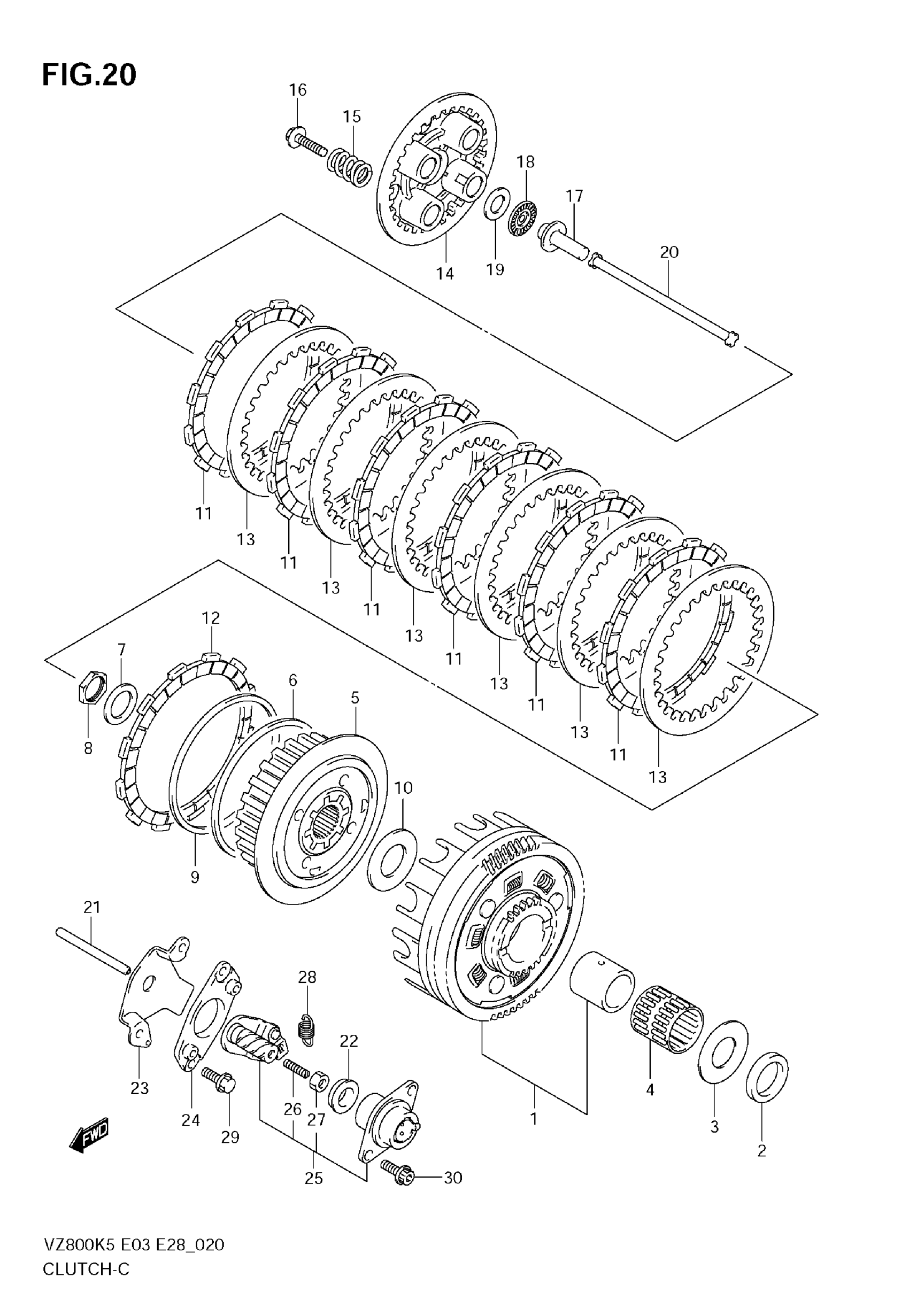

Suzuki VZ800 (2009) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:71)

21200-38840

$515.82

2

SPACER (25X38X6.5)

09180-25077

$14.72

3

WASHER (25X50X2.5)

09160-25055

$9.37

4

BEARING (35X40X35.8)

09263-35017

$38.42

5

HUB, SLEEVE

21410-41F00

$161.65

6

SEAT, WAVE WASHER

21471-37400

$9.36

7

WASHER, WAVE

09164-22007

$7.98

8

NUT

09140-22008

$7.98

9

WASHER (110.5X119X0.9)

09164-00004

$10.70

10

WASHER (25X50X2.5)

09160-25055

$9.37

11

PLATE, DRIVE NO.1

21441-37400

$17.34

12

PLATE, CLUTCH DRIVE NO.2

21442-37401

$17.86

13

PLATE, DRIVEN

21451-14A00

$9.11

14

DISC, PRESSURE

21462-27A00

$65.10

15

SPRING, CLUTCH

21413-41F00

$4.59

16

BOLT (6X30)

09116-06203

$2.98

17

PIECE, PUSH

23121-31E00

$23.54

18

BEARING (15X28X2)

09263-15003

$7.70

19

WASHER (15.5X28X1)

09160-15045

$3.62

20

ROD, PUSH RH

23110-27A00

$20.75

21

ROD, PUSH LH

23111-45C00

$19.60

22

OIL SEAL (6x34x11.0) | MODEL K5/K6/K7/K8

09285-06017

$10.79

22

OIL SEAL (6x34x10.5) | MODEL K9

09283-06010

$15.62

23

RETAINER,CL PUSH ROD OIL SEAL

23117-45C00

Unavailable

24

BRACKET, RELEASE SCREW

23130-45C00

$29.67

25

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 26 - 27

23200-41F00

$108.32

26

SCREW

09134-06010

$2.90

27

.NUT

08310-00067

$1.91

28

SPRING, RELEASE ARM

09443-09050

$3.82

29

BOLT, BRACKET

07120-0620B

$2.82

30

BOLT, RELEASE SCREW

07120-0616B

$2.56
