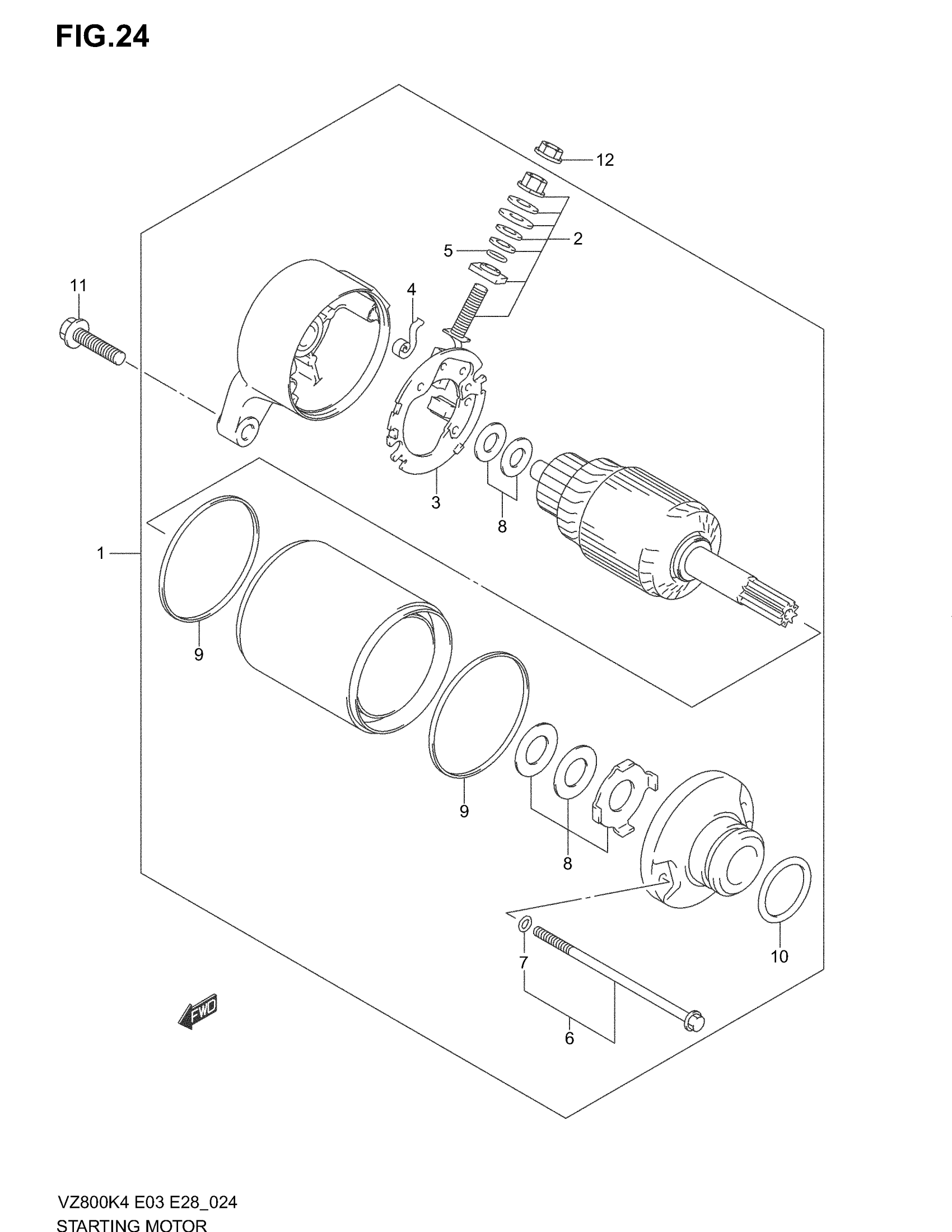

Suzuki VZ800 (2004) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING | Includes Item(s) 2 - 10 This part replaces 31100-19F00.

31100-19F10

$473.00

2

BRUSH TERMINAL SET

31130-13E00

$42.27

3

BRUSH HOLDER SET

31132-33E00

$75.70

4

SPRING, BRUSH

31135-31300

$6.57

5

O RING

31143-49040

$4.92

6

SET BOLT ASSY

31280-19F00

$23.08

7

O RING

31156-13E00

$4.92

8

WASHER SET

31170-19B10

$14.18

9

O RING This part replaces 31264-31300.

31264-32E00

$6.57

10

O RING (D:3.1,ID:24.4)

09280-25002

$2.07

11

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.50

12

NUT This part replaces 08361-35068.

08361-3506A

$1.88
