2004 Suzuki VZ800 Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 2004 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

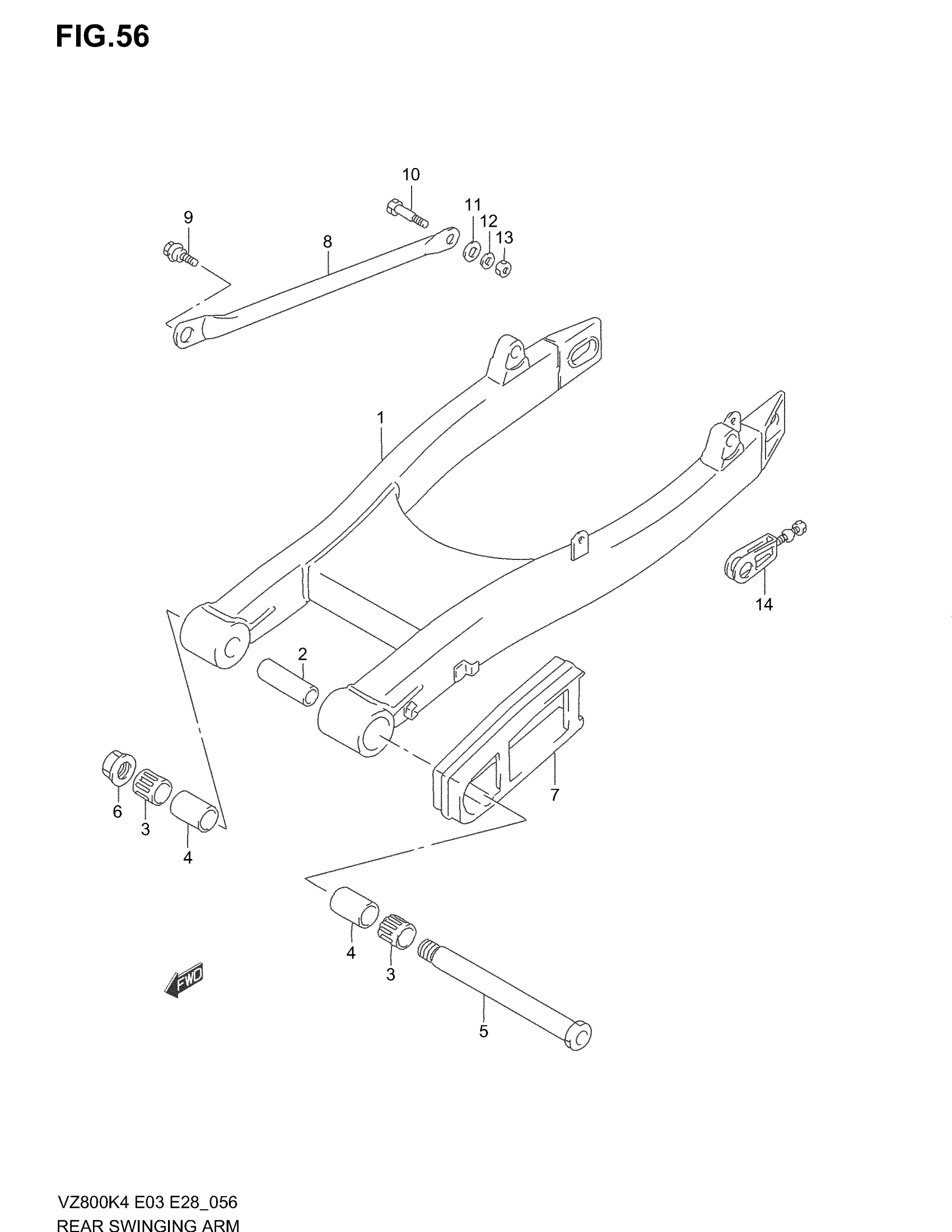

2004 Suzuki VZ800 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM, REAR (BLACK)

61100-48E02-019

1
Out of stock

2

SPACER, PIVOT CENTER

61282-48E00

1
Out of stock

3

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

2
Out of stock

4

SPACER, PIVOT

61251-21E00

2
Out of stock

5

SHAFT, PIVOT

61211-45C01

1
Out of stock

6

NUT This part replaces 08319-31188.

08319-3118A

1
Out of stock

7

BUFFER,CHAIN TO This part replaces 61273-48E00.

61273-48E01

1
Out of stock

8

TORQUE LINK, REAR

64310-48E00

1
Out of stock

9

BOLT, FRONT (10X30)

09111-10056

1
Out of stock

10

BOLT, REAR (10X41)

09111-10057

1
Out of stock

11

CUSHION

09320-12501

1
Out of stock

12

WASHER, REAR This part replaces 09160-10085.

09160-10142

1
Out of stock

13

NUT

09159-10027

1
Out of stock

14

ADJUSTER ASSY, CHAIN

61400-19D90

2
Out of stock
