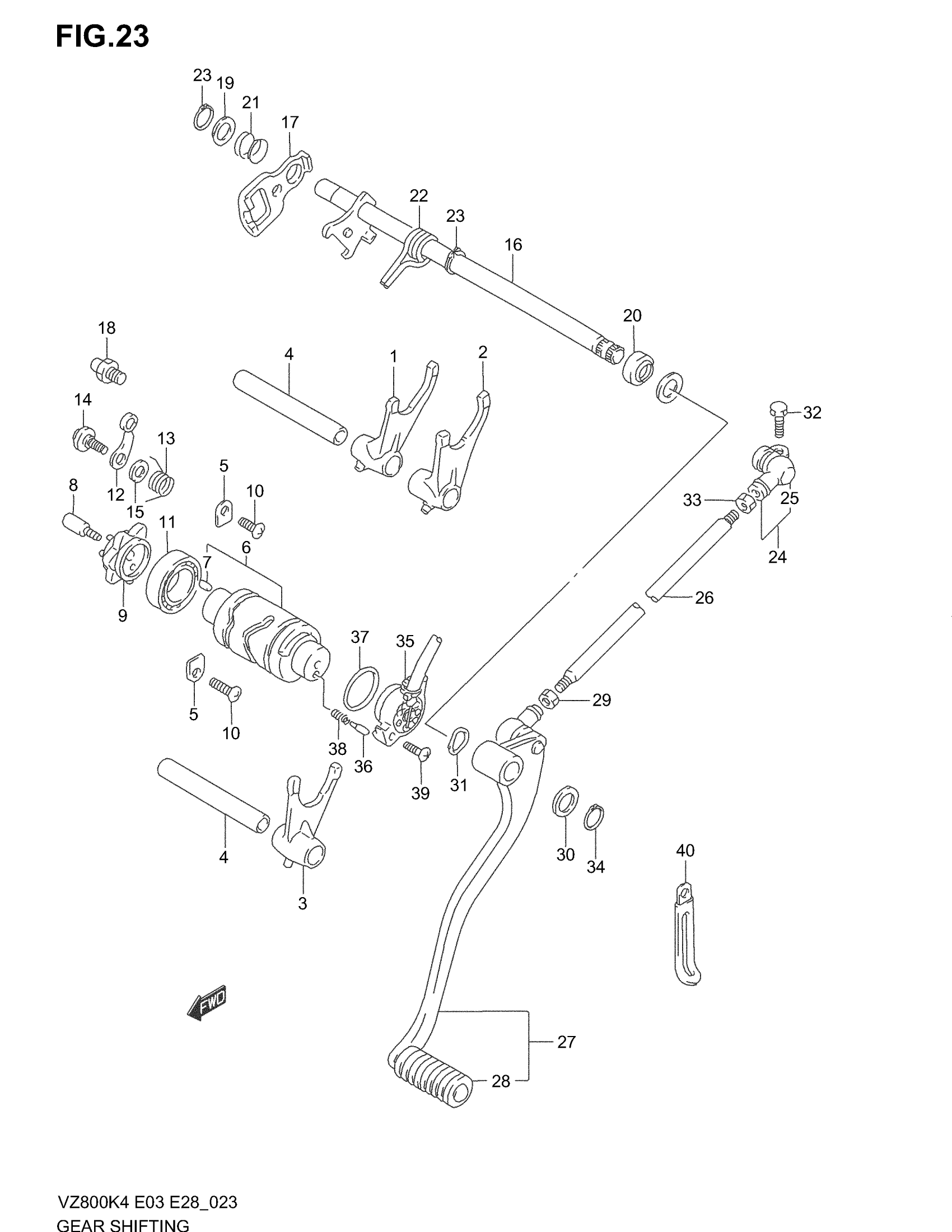

Suzuki VZ800 (2004) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-44B00

Unavailable

2

FORK, GEAR SHIFT NO.2

25221-44B00

Unavailable

3

FORK, GEAR SHIFT NO.3

25231-48E00

Unavailable

4

SHAFT,GEAR SHIFT FORK NO.1

25411-44B00

$35.78

5

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.80

6

CAM, GEAR SHIFT | Includes Item(s) 7

25310-48E00

Unavailable

7

PIN (4X13.8)

04221-04089

$1.10

8

PIN

25312-12C00

$9.08

9

PLATE, GEAR SHIFT CAM

25381-13E10

$62.80

10

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

11

BEARING

08113-69050

$32.64

12

STOPPER, GEAR SHIFT CAM

25350-26D01

$18.30

13

SPRING, SHIFT CAM STOPPER

25355-13E10

Unavailable

14

BOLT (6X14.3)

09111-06041

$2.63

15

WASHER

08211-06141

$1.61

16

SHAFT, GEAR SHIFT

25510-48E01

Unavailable

17

PLATE, GEAR SHIFT CAM

25512-13E11

$40.17

18

STOPPER, RETURN SPRING

25671-01011

$4.09

19

WASHER (14X22X1.0)

09181-14167

$2.55

20

OIL SEAL (14X22X6)

09283-14006

$6.04

21

SPRING

09440-17009

$1.73

22

SPRING

09444-20001

$4.80

23

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.89

24

ARM,GEAR SHIFT | Includes Item(s) 25 This part replaces 25520-09301.

25520-09302

$82.76

25

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

26

ROD, GEAR SHIFT LINK

25525-48E00

$22.07

27

LEVER ASSY,GEAR | Includes Item(s) 28 This part replaces 25600-48E00.

25600-48E01

$111.12

28

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$4.98

29

NUT

09140-06025

$1.84

30

WASHER (12.5X20X1)

09160-12011

$1.48

31

WAVE WASHER

09164-12019

$1.68

32

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

33

.NUT

08310-00067

$1.83

34

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77

35

BASE ASSY, TERMINAL

37720-48E20

$103.77

36

CONTACT

09209-05011

$2.02

37

O RING (D:2.4,ID:25)

09280-26007

$5.97

38

SPRING

09440-04010

$1.52

39

.SCREW This part replaces 02112-05163.

02112-0516A

$1.45

40

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.43
