Description

Price

1

CALIPER ASSY, FRONT RH | Includes Item(s) 2 - 12 This part replaces 59100-33D90-999.

59100-33D81-999

$643.45

2

PISTON SET

59301-20820

$35.39

3

SEAL SET, PISTON

59300-33841

$14.15

4

.SPRING, PAD RH

59115-33D00

$19.78

5

BOOT

59112-44B00

$8.15

6

.INSULATOR, AXLE

59313-36500

$5.48

7

.CARRIER, CALIPER RH

59150-33D01

$123.97

8

.GUIDE, PAD

59116-33D00

$7.51

9

BLEEDER

59121-18410

$7.99

10

CAP

55156-66310

$4.73

11

.PIN, PAD

59141-44B01

$8.56

12

.CLIP, PAD PIN

69142-45000

$3.97

13

PAD SET

59100-33870

$61.98

14

BOLT

01550-10257

$4.70

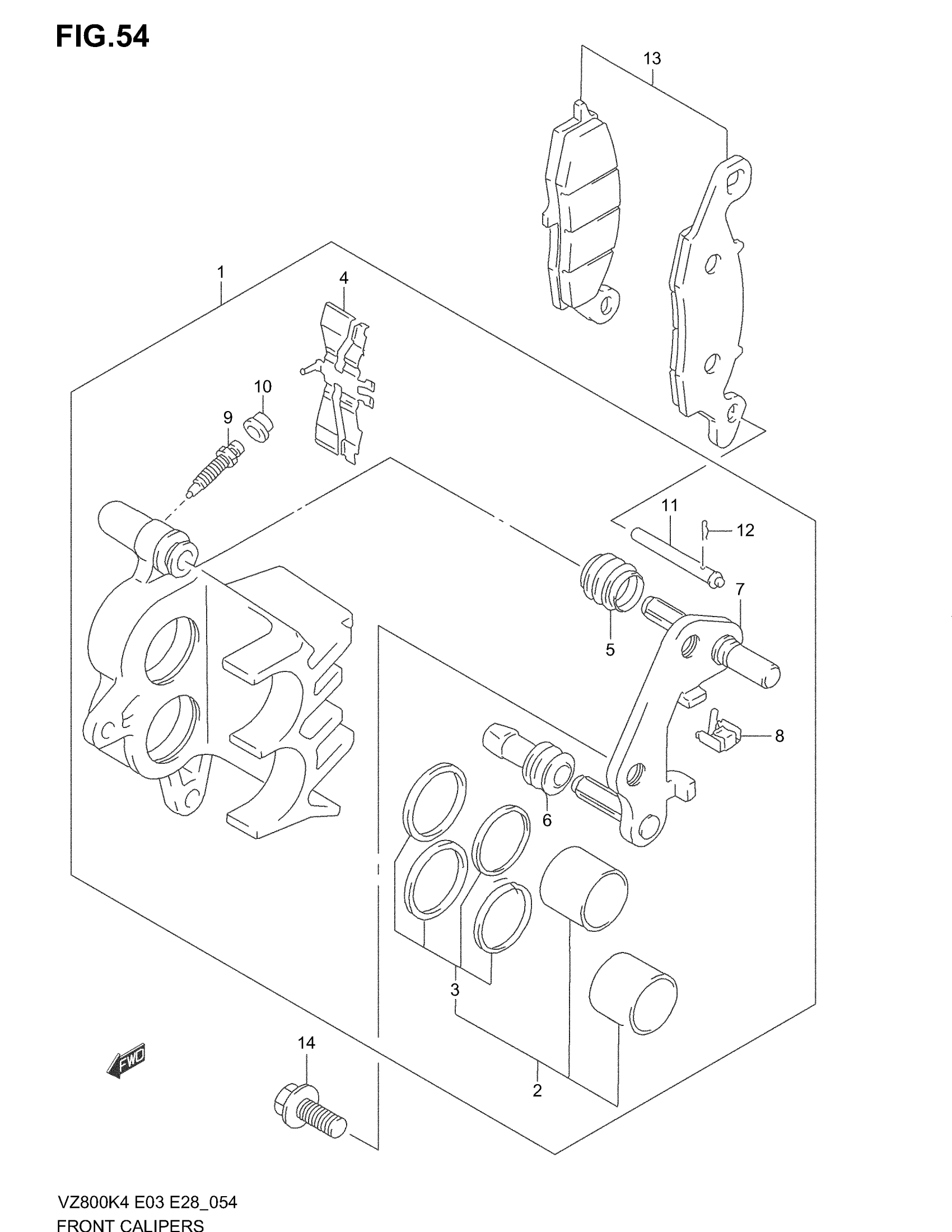

Suzuki VZ800 (2004) FRONT CALIPER Diagram
