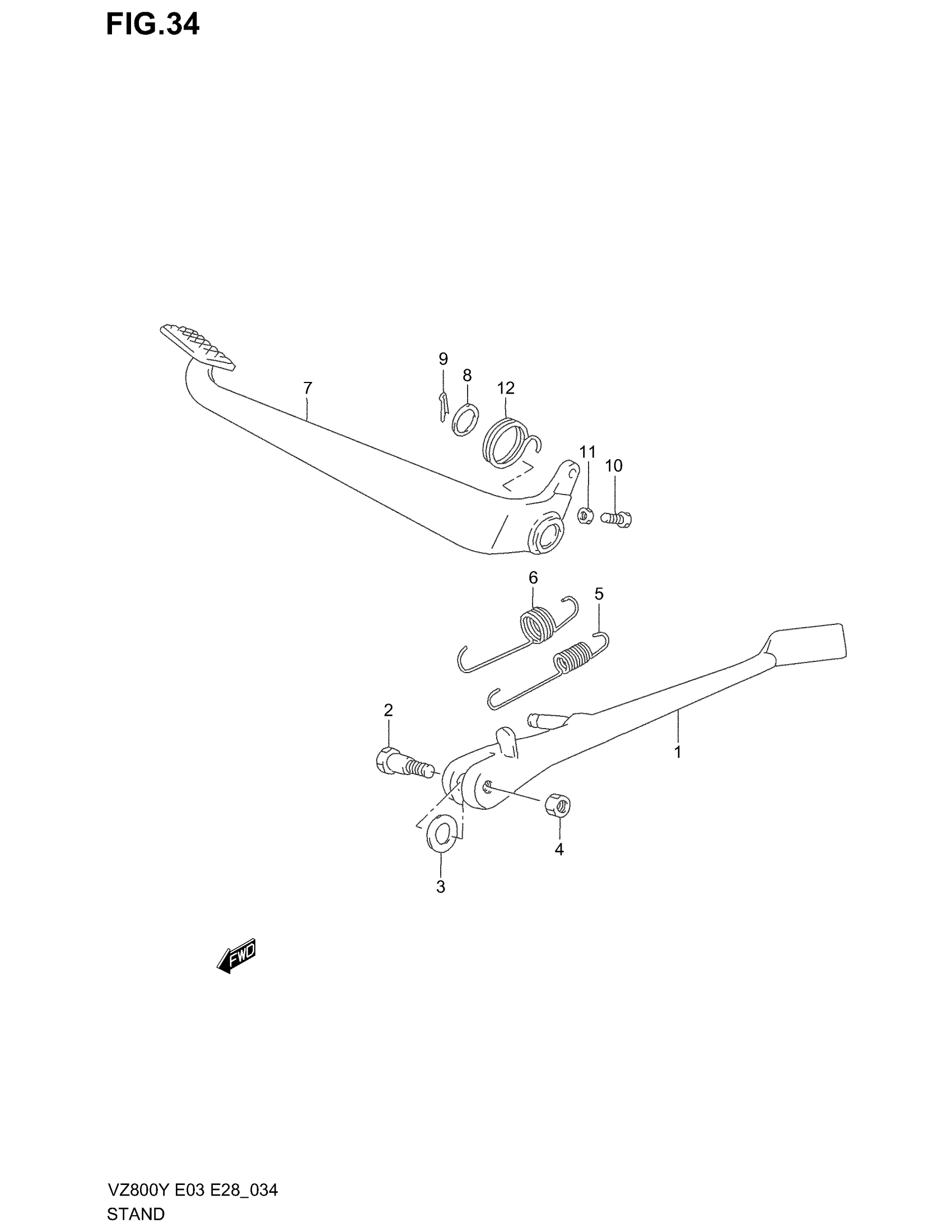

Suzuki VZ800 (2003) STAND Diagram

#

Description
Price

1

STAND, PROP | MODEL V This part replaces 42310-48E10.

42310-48E11

Unavailable

1

STAND, PROP | MODEL W

42310-48E11

Unavailable

1

STAND, PROP | MODEL X/Y/K1/K2/K3

42310-48E20

Unavailable

2

BOLT

09111-10027

$3.08

3

SHIM | MODEL V/W

08221-12224

$1.98

4

NUT | MODEL V

09159-10027

$2.84

4

NUT, REAR | MODEL W/X/Y/K1/K2/K3 This part replaces 08319-21103.

08319-2110A

$2.29

5

SPRING

09443-14066

$4.97

6

SPRING

09443-19012

$5.31

7

PEDAL, BRAKE | MODEL V/W This part replaces 43110-48E00.

43110-48E10

Unavailable

7

PEDAL, BRAKE | MODEL X/Y/K1/K2/K3

43110-48E10

Unavailable

8

WASHER | MODEL V This part replaces 09160-16028.

09160-16043

$2.30

8

WASHER (16.5X22X1) | MODEL W/X/Y/K1/K2/K3

09160-16043

$2.30

9

PIN This part replaces 04111-30308.

04111-3030A

$1.37

10

BOLT

01500-06207

$1.99

11

.NUT

08310-00067

$1.83

12

SPRING

09448-31034

$6.61
