2004 Suzuki VZ1600 E33 Fuel Evaporative System Diagram

← All diagrams

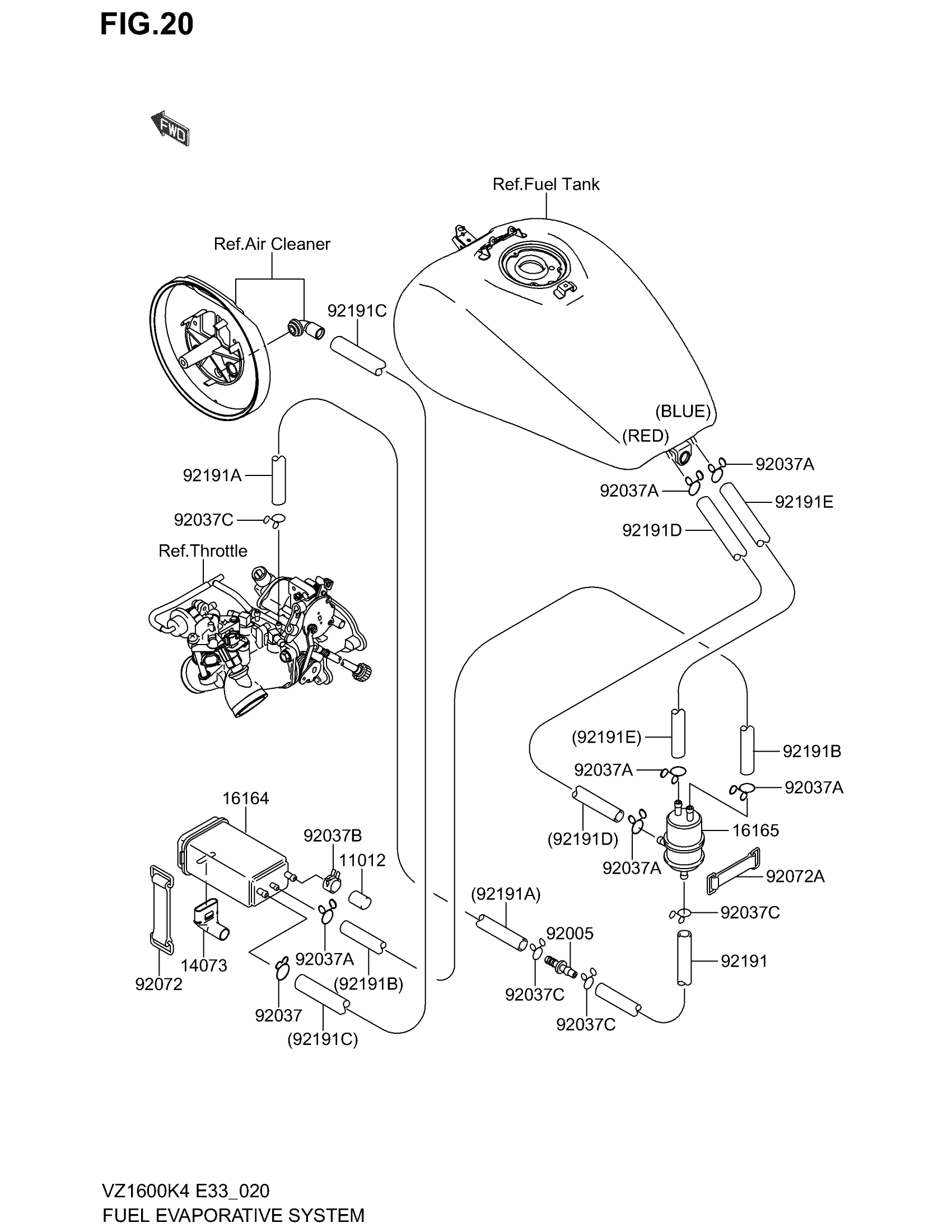

Find the part on the Fuel Evaporative System diagram for your 2004 Suzuki VZ1600 E33, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki VZ1600 E33 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

K1101-21388

1
Out of stock

14073

DUCT,CANISTER

K1407-31219

1
Out of stock

16164

CANISTER

K1616-41070

1
Out of stock

16165

SEPARATOR

K1616-51001

1
Out of stock

92005

FITTING

K9200-51206

1
Out of stock

92037

CLAMP,HOSE

K9203-71104

1
Out of stock

92037A

CLAMP,TUBE

KK920-37147

6

$5.88

In stock

92037B

CLAMP,CANISTER

K9203-71512

1
Out of stock

92037C

CLAMP

K9203-71712

4
Out of stock

92072

BAND,L=90

KK920-72045

1
Out of stock

92072A

BAND,L=50

K9207-21419

1
Out of stock

92191

TUBE,THROTTLE-SEPARATOR,WHITE

K9219-11375

1
Out of stock

92191A

TUBE,4X9X180,WHITE

K9219-11414

1
Out of stock

92191B

TUBE,SEPARATOR-CANISTER,BLUE

K9219-11677

1
Out of stock

92191C

TUBE,CANISTER-CLEANER,GREEN

K9219-11678

1
Out of stock

92191D

TUBE,TANK-SEPARATOR,RED

K9219-11695

1
Out of stock

92191E

TUBE,TANK-SEPARATOR,BLUE

K9219-11696

1
Out of stock
