2004 Suzuki VZ1600 E33 Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2004 Suzuki VZ1600 E33, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

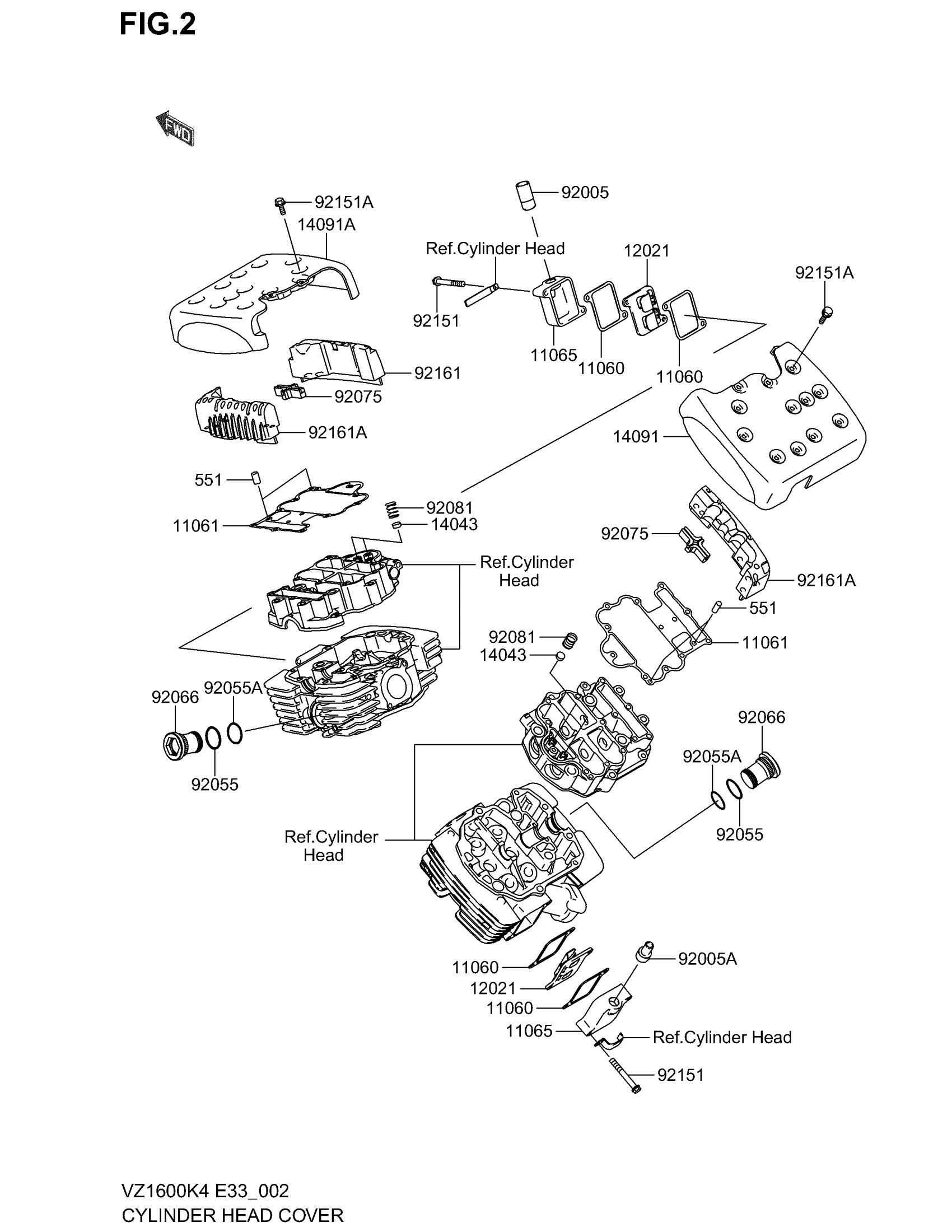

2004 Suzuki VZ1600 E33 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,REED VALVE CAP

K1106-01733

4
Out of stock

11061

GASKET,ROCKER CASE COVER

K1106-11175

2
Out of stock

11065

CAP,REED VALVE

K1106-50031

2
Out of stock

12021

VALVE-ASSY-REED

K1202-11108

2
Out of stock

14043

FILTER,OIL

K1404-31056

4
Out of stock

14091

COVER,ROCKER CASE,RR

K1409-10005

1
Out of stock

14091A

COVER,ROCKER CASE,FR

K1409-10093

1
Out of stock

92005

FITTING,REED VALVE

K9200-51006

1
Out of stock

92005A

FITTING

K9200-51363

1
Out of stock

92055

RING-O,31.7X2.4

KK920-55049

2

$3.04

In stock

92055A

RING-O,27.7X1.9

K9205-51272

2
Out of stock

92066

PLUG,SLEEVE

K9206-61445

2
Out of stock

92075

DAMPER

K9207-51998

2
Out of stock

92081

SPRING,OIL FILTER

K9208-11776

4
Out of stock

92151

BOLT,6X45

K9215-11059

4
Out of stock

92151A

BOLT,6X20

K9215-11252

24
Out of stock

92161

DAMPER

K9216-10088

1
Out of stock

92161A

DAMPER

K9216-10089

2
Out of stock

551

PIN-DOWEL,6X12

KK551-A0612

4
Out of stock
