2004 Suzuki VZ1600 E3 Turn Signal Diagram

← All diagrams

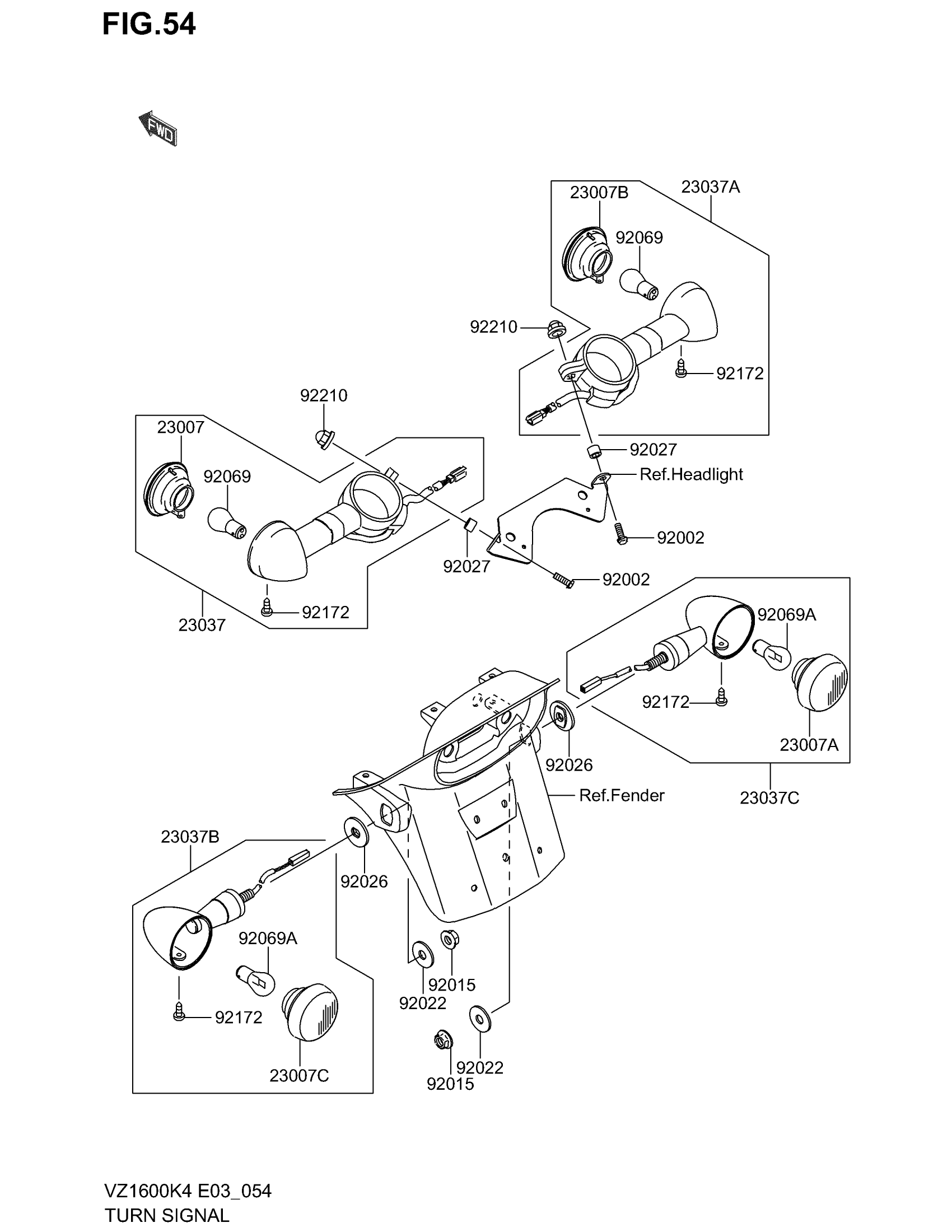

Find the part on the Turn Signal diagram for your 2004 Suzuki VZ1600 E3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki VZ1600 E3 Turn Signal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23007

LENS-COMP,SIGNAL LAMP,FR

K2300-70008

1
Out of stock

23007A

LENS-COMP,SIGNAL LAMP,RR

K2300-70009

1
Out of stock

23007B

LENS-COMP,SIGNAL LAMP,FR

K2300-70026

1
Out of stock

23007C

LENS-COMP,SIGNAL LAMP,RR

K2300-70027

1
Out of stock

23037

LAMP-ASSY-SIGNAL,FR,LH

K2303-70010

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,FR,RH

K2303-70011

1
Out of stock

23037B

LAMP-ASSY-SIGNAL,RR,LH

K2303-70012

1
Out of stock

23037C

LAMP-ASSY-SIGNAL,RR,RH

K2303-70013

1
Out of stock

92002

BOLT,6X20

K9200-21607

2
Out of stock

92015

NUT,10MM

K9201-51356

2
Out of stock

92022

WASHER,10.5X30X2.3,BLACK

K9202-21302

2
Out of stock

92026

SPACER

K9202-60030

2
Out of stock

92027

COLLAR,6.8X10X12

KK920-27162

2
Out of stock

92069

BULB,12V 21/5W

KK920-69063

2
Out of stock

92172

SCREW,TAPPING,4X10

K9217-20118

4
Out of stock

92210

NUT,CAP,6MM

K9221-00141

—
Out of stock
