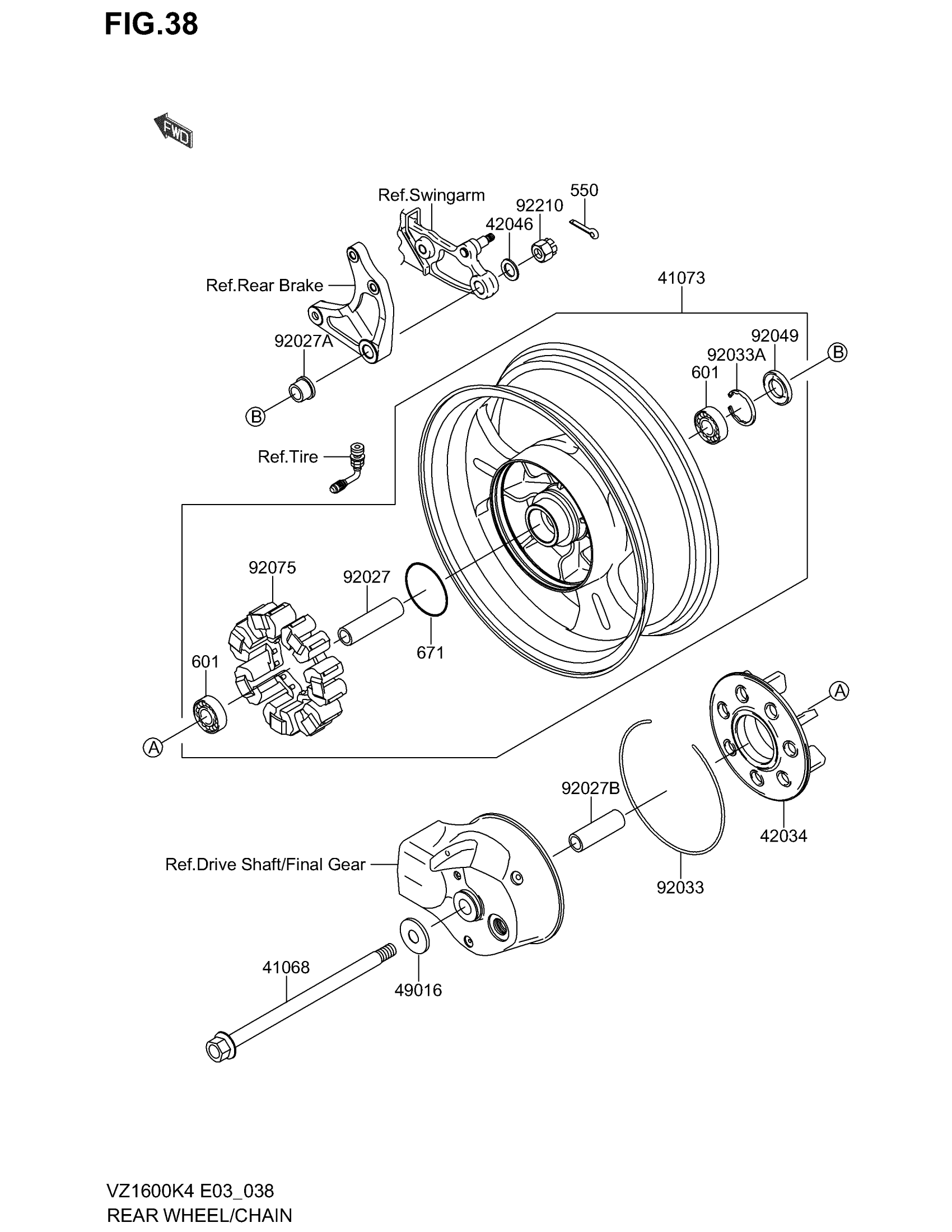

Find the part on the Rear Wheel/chain diagram for your 2004 Suzuki VZ1600 E3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki VZ1600 E3 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR

K4106-81410

1
Out of stock

41073

WHEEL-ASSY,RR This part replaces K4107-30007-496.

K4107-30645-496

1
Out of stock

42034

COUPLING,RR HUB

K4203-40002

1
Out of stock

42046

WASHER,21X33X2.6

KK420-46003

1
Out of stock

49016

COVER-SEAL

K4901-61019

1
Out of stock

92027

COLLAR,20.2X28X105.5

K9202-71901

1
Out of stock

92027A

COLLAR,RR AXLE,L=21.5

K9202-71902

1
Out of stock

92027B

COLLAR,20.2X28X86

K9202-71969

1
Out of stock

92033

RING-SNAP,220MM

K9203-30012

1
Out of stock

92033A

RING-SNAP,52MM

K9203-31043

1
Out of stock

92049

SEAL-OIL,28X52X5

K9204-91061

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

K9207-51121

1
Out of stock

92210

NUT,CASTLE,18MM

K9221-01134

1
Out of stock

550

PIN-COTTER,4.0X35

KK550-D4035

1
Out of stock

601

BEARING-BALL,#6304UUC3

KKK60-1B630-4UU

2
Out of stock

671

O RING,80MM

KK671-B2580

1
Out of stock
