2004 Suzuki VZ1600 E3 Brake Pedal/torque Link Diagram

← All diagrams

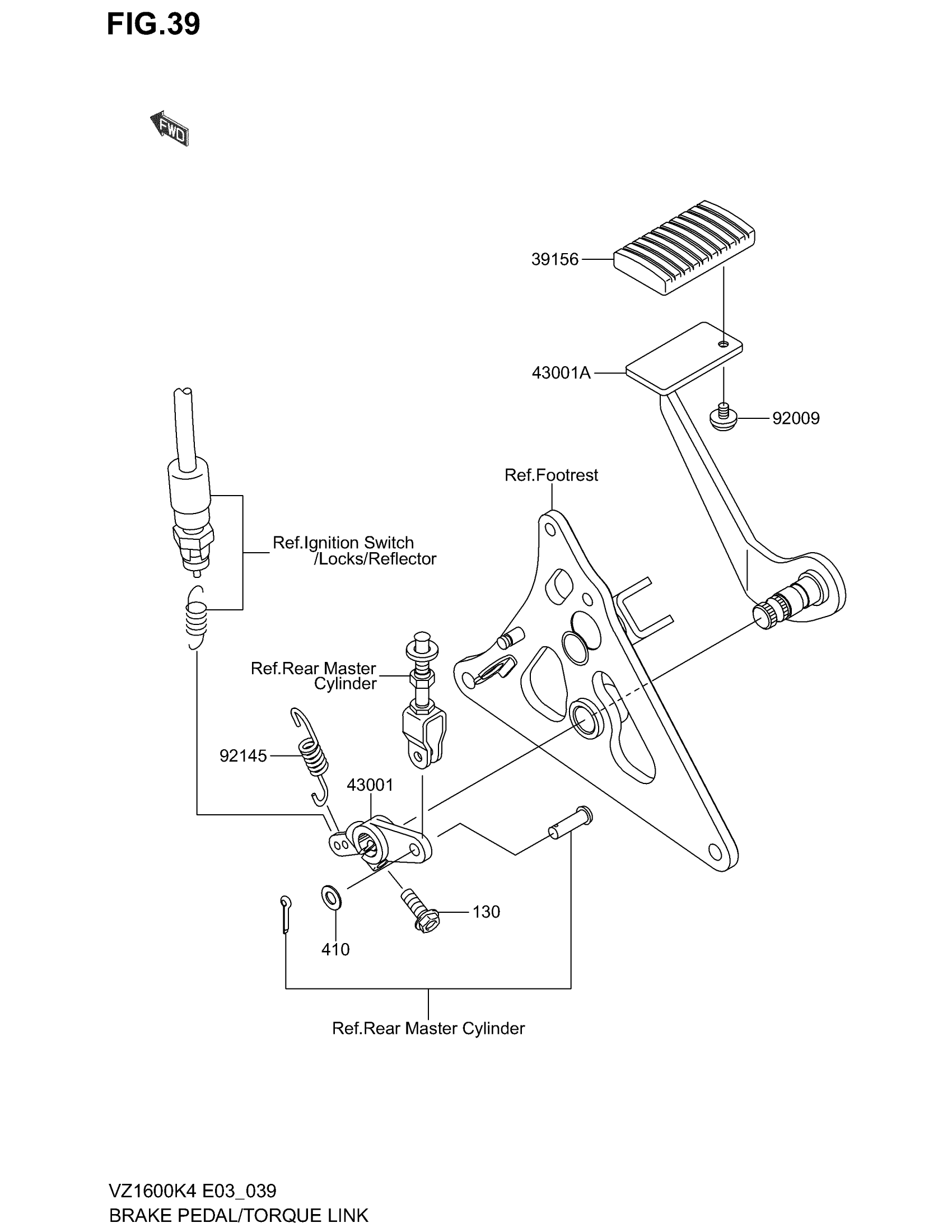

Find the part on the Brake Pedal/torque Link diagram for your 2004 Suzuki VZ1600 E3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki VZ1600 E3 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39156

PAD,BRAKE PEDAL

K3915-61677

1
Out of stock

43001

LEVER-BRAKE

K4300-11431

1
Out of stock

43001A

LEVER-BRAKE,PEDAL

K4300-11438

1
Out of stock

92009

SCREW,6X8

K9200-91677

1
Out of stock

92145

SPRING,BRAKE PEDAL RETURN This part replaces K9214-51353.

K9214-50191

1
Out of stock

130

BOLT-FLANGED,8X30

KK130-J0830

1
Out of stock

410

WASHER,PLAIN,SM This part replaces KK410-B0800.

K410A-A0800

1
Out of stock
