2005 Suzuki VZ1600 (CA) Owner's Tool Diagram

← All diagrams

Find the part on the Owner's Tool diagram for your 2005 Suzuki VZ1600 (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

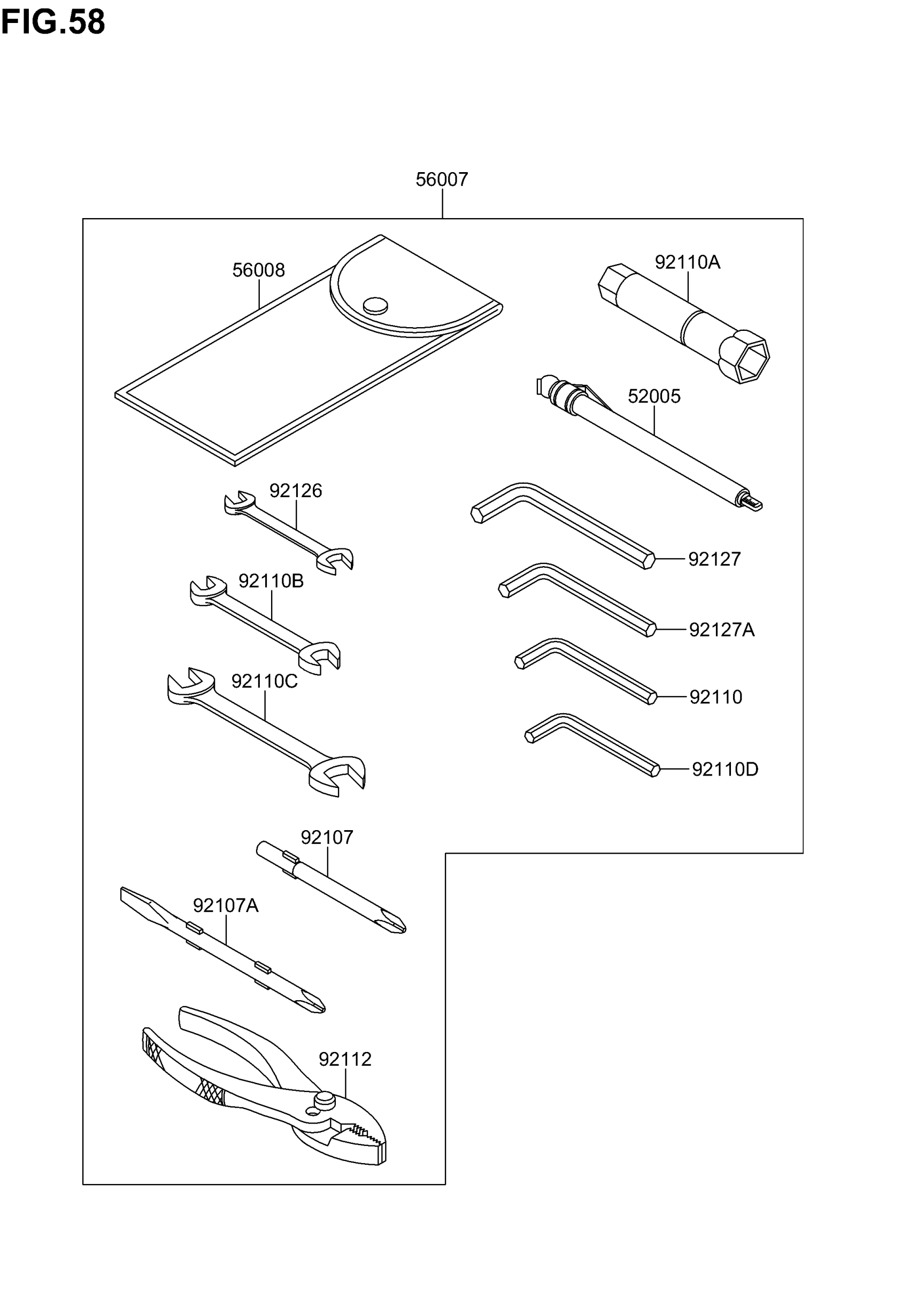

2005 Suzuki VZ1600 (CA) Owner's Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

52005

GAUGE,AIR,350KPA/50PSI

K5200-51142

1
Out of stock

56007

NO DESCRIPTION AVAILABLE This part replaces K5600-70008.

K5600-70022

1
Out of stock

56008

BAG,TOOL

K5600-81075

1
Out of stock

92107

TOOL-DRIVER,#3PHILLIPS

K9210-71002

1
Out of stock

92107A

TOOL-DRIVER,#2PHILLIPS&SLOT

K9210-71052

1
Out of stock

92110

TOOL-WRENCH,ALLEN,5MM

K9211-01015

1
Out of stock

92110A

TOOL-WRENCH,BOX,18MM

K9211-01135

1
Out of stock

92110B

TOOL-WRENCH,OPEN END,10X12

K9211-01165

1
Out of stock

92110C

TOOL-WRENCH,OPEN END,14X17

K9211-01166

1
Out of stock

92110D

TOOL-WRENCH,ALLEN,4MM

K9211-03703

1
Out of stock

92112

TOOL-PLIERS

KK921-12003

1
Out of stock

92126

TOOL-WRENCH,OPEN END,8X10

KK921-26001

1
Out of stock

92127

TOOL-WRENCH,ALLEN,8MM

KK921-27002

1
Out of stock

92127A

TOOL-WRENCH,ALLEN,6MM

KK921-27003

1
Out of stock

15

MANUAL OWNER'S | K4 NOT SHOWN

99011-11AB0-03A

1
Out of stock

16

MANUAL OWNER'S | K5 NOT SHOWN

99011-11AB1-03A

1
Out of stock
