2005 Suzuki VZ1600 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2005 Suzuki VZ1600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

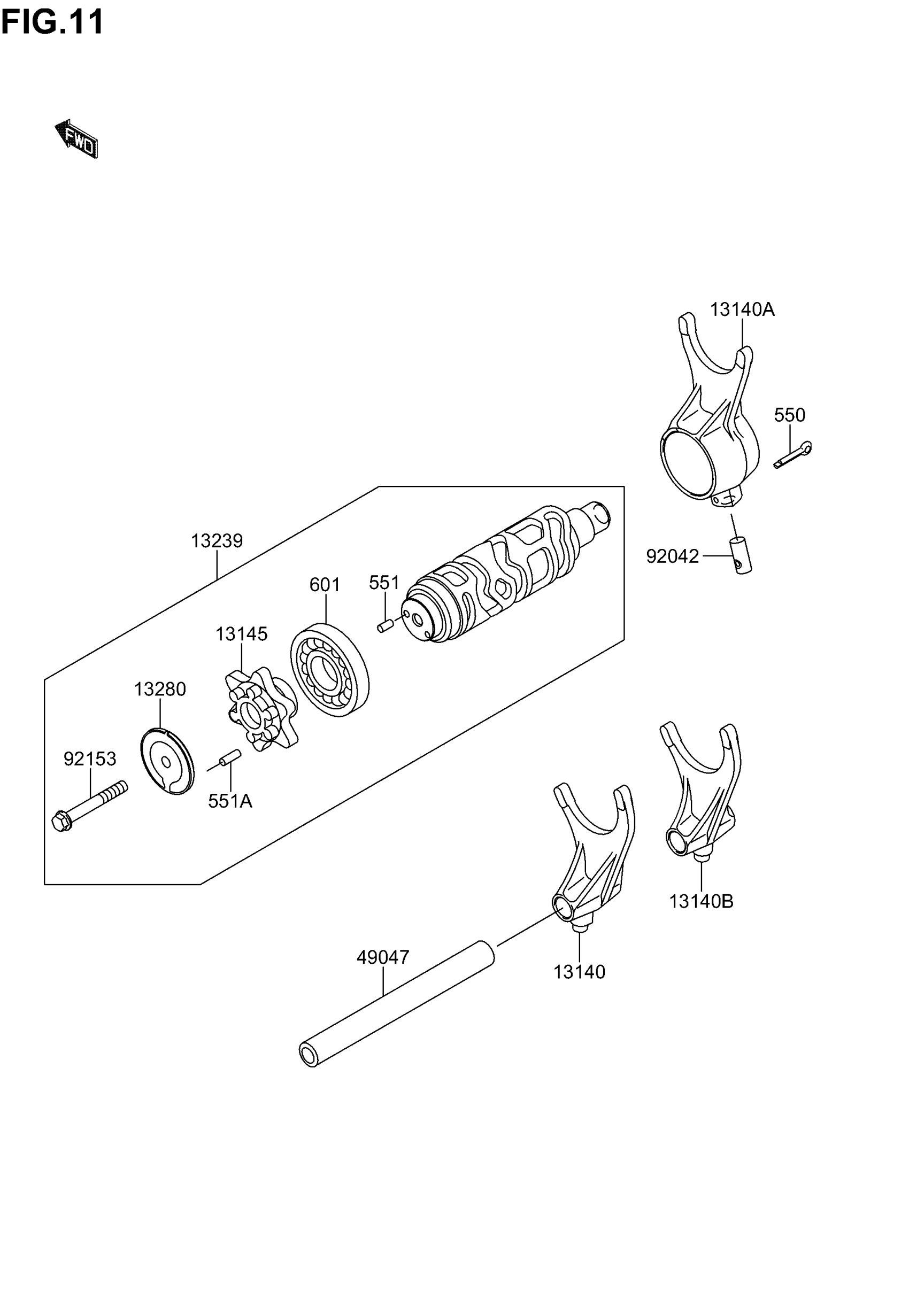

2005 Suzuki VZ1600 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,OUTPUT TOP

K1314-01270

1
Out of stock

13140A

FORK-SHIFT,INPUT 3RD

K1314-01292

1
Out of stock

13140B

FORK-SHIFT,OUTPUT 4TH

K1314-01293

1
Out of stock

13145

CAM-CHANGE DRUM

K1314-51089

1
Out of stock

13239

DRUM-ASSY-CHANGE

K1323-91214

1
Out of stock

13280

HOLDER

K1328-01300

1
Out of stock

49047

ROD-SHIFT

K4904-71095

1
Out of stock

92042

PIN,DOWEL,8X18

KK920-42021

1
Out of stock

92153

BOLT,6X45

K9215-31281

1
Out of stock

550

PIN-COTTER,3.0X20

KK550-D3020

1
Out of stock

551

PIN-DOWEL,4X8

KK551-A0408

1
Out of stock

551A

PIN-DOWEL

KK551-A0412

1
Out of stock

601

BEARING-BALL

KK601-A6005

1
Out of stock
