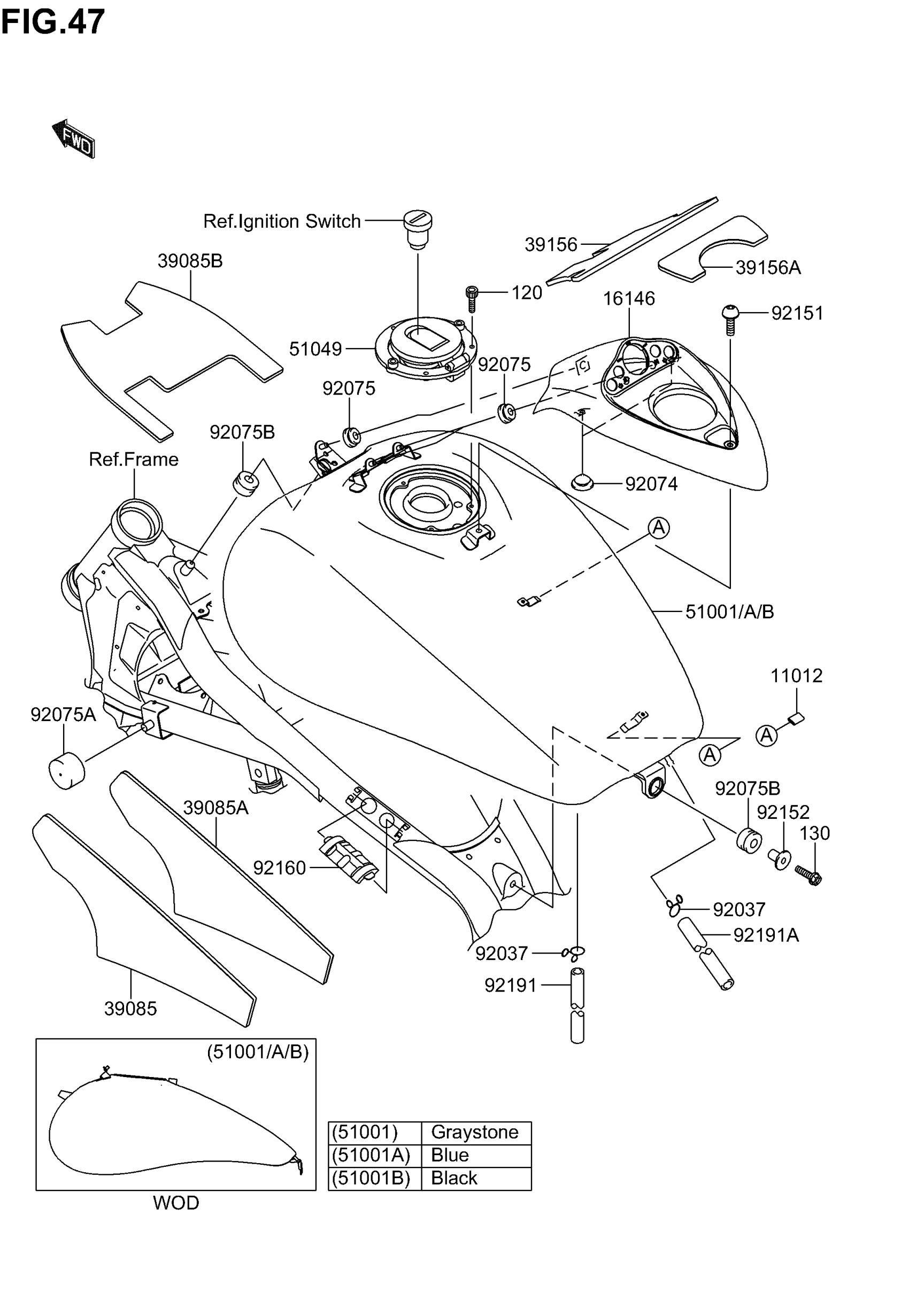

Find the part on the Fuel Tank diagram for your 2005 Suzuki VZ1600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki VZ1600 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

K1101-21725

2
Out of stock

16146

COVER-ASSY,FUEL TANK

K1614-60006

1
Out of stock

39085

PAD-TANK,FUEL TANK,LH

K3908-51065

1
Out of stock

39085A

PAD-TANK,FUEL TANK,RH

K3908-51066

1
Out of stock

39085B

PAD-TANK,FUEL TANK,CNT

K3908-51067

1
Out of stock

39156

PAD,FUEL TANK COVER,FR

K3915-61700

1
Out of stock

39156A

PAD,FUEL TANK COVER,RR

K3915-61701

1
Out of stock

51001

TANK-COMP-FUEL,M.GRAYSTONE | 05 MODEL

KK510-01168-2C4

1
Out of stock

51001A

TANK-COMP-FUEL,L.P.BLUE | 04 MODEL

KK510-01168-2M4

1
Out of stock

51001B

TANK-COMP-FUEL,M.S.BLACK

K5100-11682-660

1
Out of stock

51049

CAP,TANK,FUEL This part replaces K5104-90009.

K5104-90019

1
Out of stock

92037

CLAMP,TUBE

KK920-37147

2

$5.88

In stock

92074

PLUG,7X2

KK920-74028

2
Out of stock

92075

DAMPER

K9207-51011

3
Out of stock

92075A

DAMPER,FUEL TANK

KK920-75125

2
Out of stock

92075B

DAMPER

K9207-51736

2
Out of stock

92151

BOLT,SOCKET,6X12

K9215-11940

1
Out of stock

92152

COLLAR

K9215-21393

1
Out of stock

92160

DAMPER,FUEL TANK

K9216-01751

2
Out of stock

92191

TUBE,DRAIN

K9219-11272

1
Out of stock

92191A

TUBE,5X10X650

K9219-11529

1
Out of stock

120

BOLT-SOCKET This part replaces KK120-S0512.

K120C-B0512

3
Out of stock

130

BOLT-FLANGED,8X30

KK130-H0830

1
Out of stock
