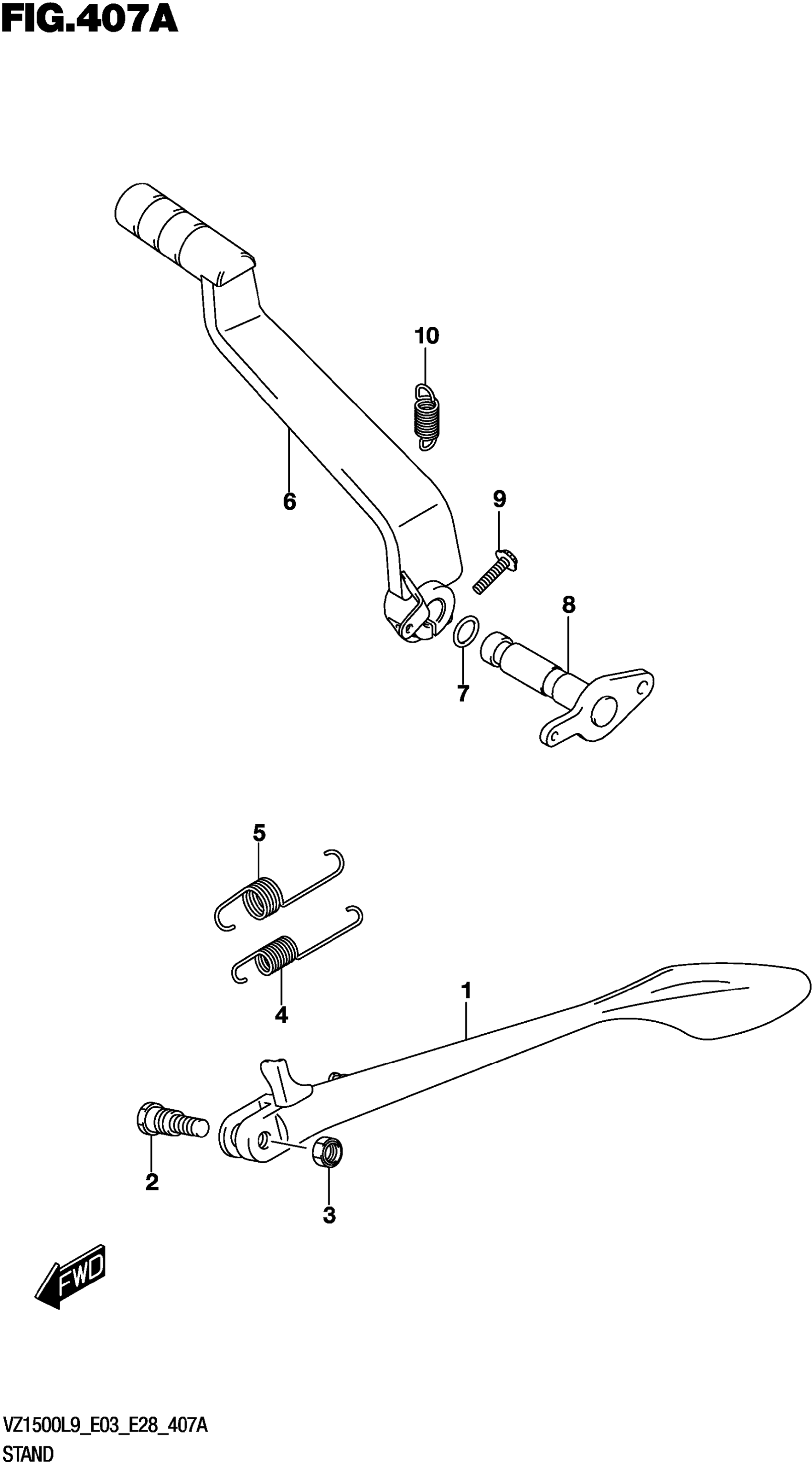

Suzuki VZ1500L9 (2019) STAND Diagram

#

Description
Price

1

STAND

42310-40H10

$220.88

2

BOLT (10X37.5)

09111-10058

$6.09

3

NUT, PROP STAND

42321-03FK0

$4.73

4

SPRING

09443-14069

$5.55

5

SPRING

09443-19012

$5.31

6

PEDAL

43110-40H02

$188.15

7

O RING (D:2.5,ID:13.8)

09280-14011

$4.30

8

ARM

43120-40H00

$90.88

9

BOLT

07120-0625A

$2.50

10

SPRING

09443-11030

$3.33
