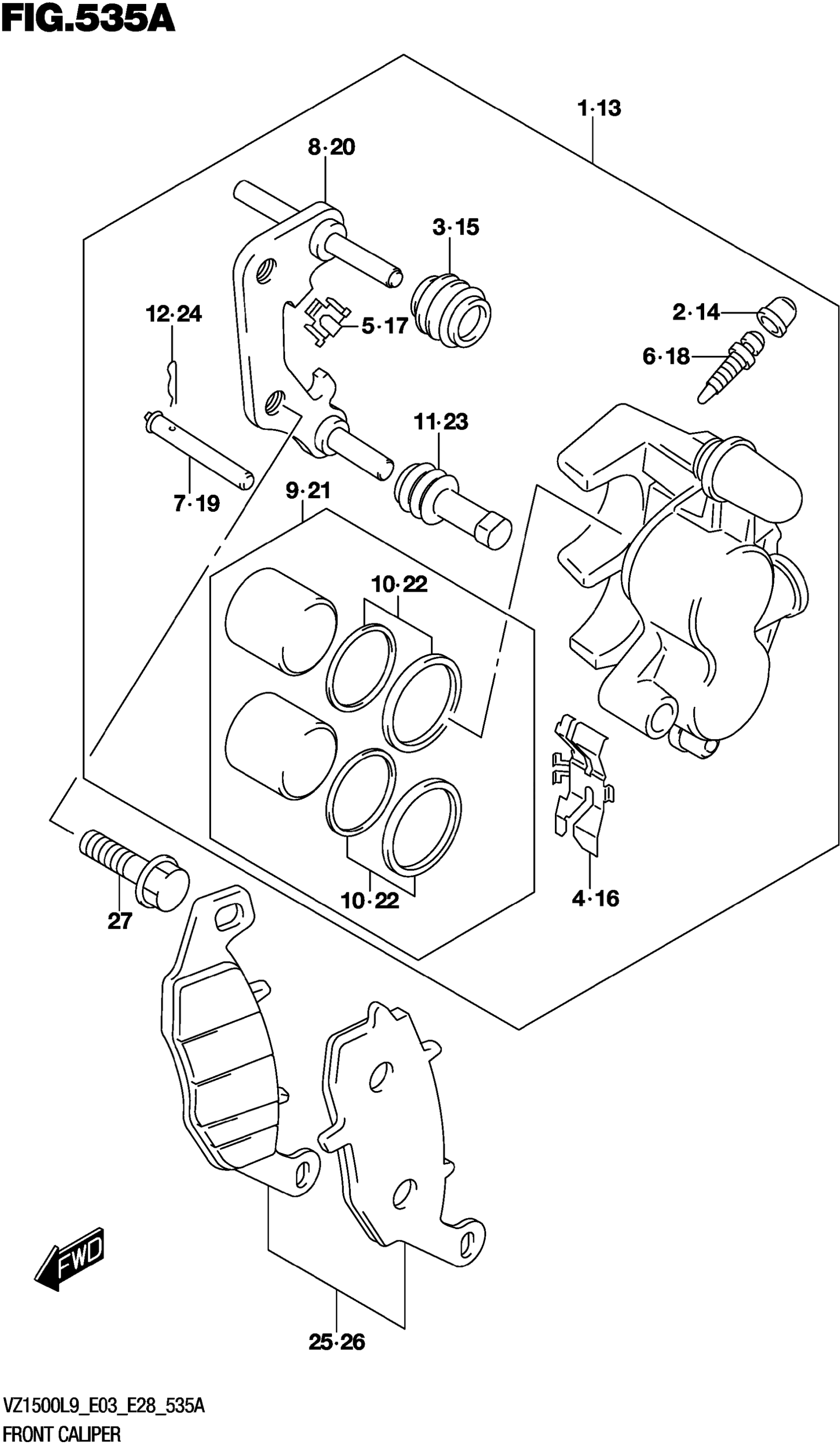

Suzuki VZ1500L9 (2019) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY

59100-33D81-999

$643.45

2

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$4.94

3

.BOOT,AXLE

59112-44B00

$8.52

4

.SPRING, PAD RH

59115-33D00

$19.78

5

.GUIDE, PAD

59116-33D00

$7.85

6

.BLEEDER

59121-18410

$8.35

7

.PIN, PAD

59141-44B01

$8.94

8

.CARRIER, CALIPER RH

59150-33D01

$123.97

9

.PISTON SET

59301-20820

$36.98

10

..SEAL SET,PISTON

59300-33841

$14.78

11

.INSULATOR, AXLE

59313-36500

$5.73

12

.CLIP, PAD PIN

69142-45000

$4.15

13

CALIPER ASSY

59300-33D81-999

$628.42

14

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$4.94

15

.BOOT,AXLE

59112-44B00

$8.52

16

.SPRING, PAD LH

59315-33D00

$14.66

17

.GUIDE, PAD

59116-33D00

$7.85

18

.BLEEDER

59121-18410

$8.35

19

.PIN, PAD

59141-44B01

$8.94

20

.CARRIER, CALIPER LH

59350-33D01

$123.97

21

.PISTON SET

59301-20820

$36.98

22

..SEAL SET,PISTON

59300-33841

$14.78

23

.INSULATOR, AXLE

59313-36500

$5.73

24

.CLIP, PAD PIN

69142-45000

$4.15

25

PAD SET RH

59101-33880

$65.75

26

PAD SET LH

59302-33890

$68.50

27

BOLT (10X30)

09103-10379

$4.92
