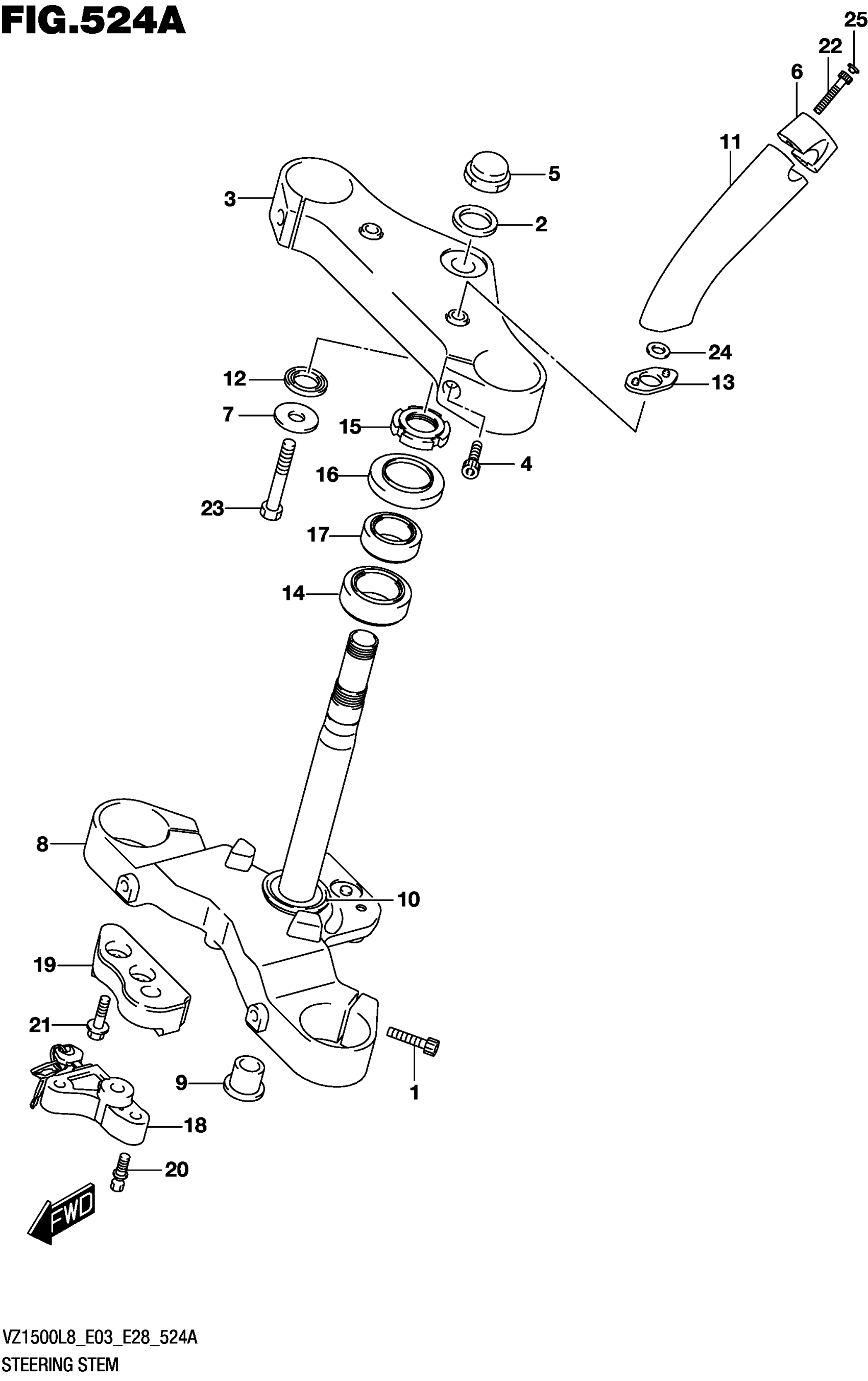

Suzuki VZ1500L8 (2018) STEERING STEM Diagram

#

Description
Price

1

BOLT

51451-32E40

$7.03

2

WASHER (22.5X35.9X1.6)

51356-10D03

$8.47

3

BRACKET

51311-40H30

$563.47

4

BOLT

51328-05H00

$6.50

5

NUT,CAP

51353-24B00

$34.62

6

HOLDER

56211-39G60

$94.27

7

WASHER

51355-16G00

$6.52

8

BRACKET

51410-40H30

Unavailable

9

CAP

51482-44G00

Unavailable

10

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.04

11

HOLDER

56221-39G60

$547.20

12

RUBBER

56245-16G00

$7.95

13

RUBBER

56245-39G00

$10.62

14

.BEARING (30X55X17)

09265-30020

$42.08

15

NUT,STEERING STEM

51631-31F00

$22.42

16

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.04

17

BEARING (25X47X15)

09265-25038

$42.34

18

LOCK SET

51900-22820

Unavailable

19

BRACKET

51921-40H00

Unavailable

20

SCREW,STEERING LOCK

51925-48G00

$9.08

21

BOLT (8X30)

09103-08197

$1.85

22

BOLT

51451-32E40

$7.03

23

BOLT

51226-23H00

$42.68

24

WASHER

51354-42F00

$5.18

25

CAP (OD:11)

09250-06011

$2.62
