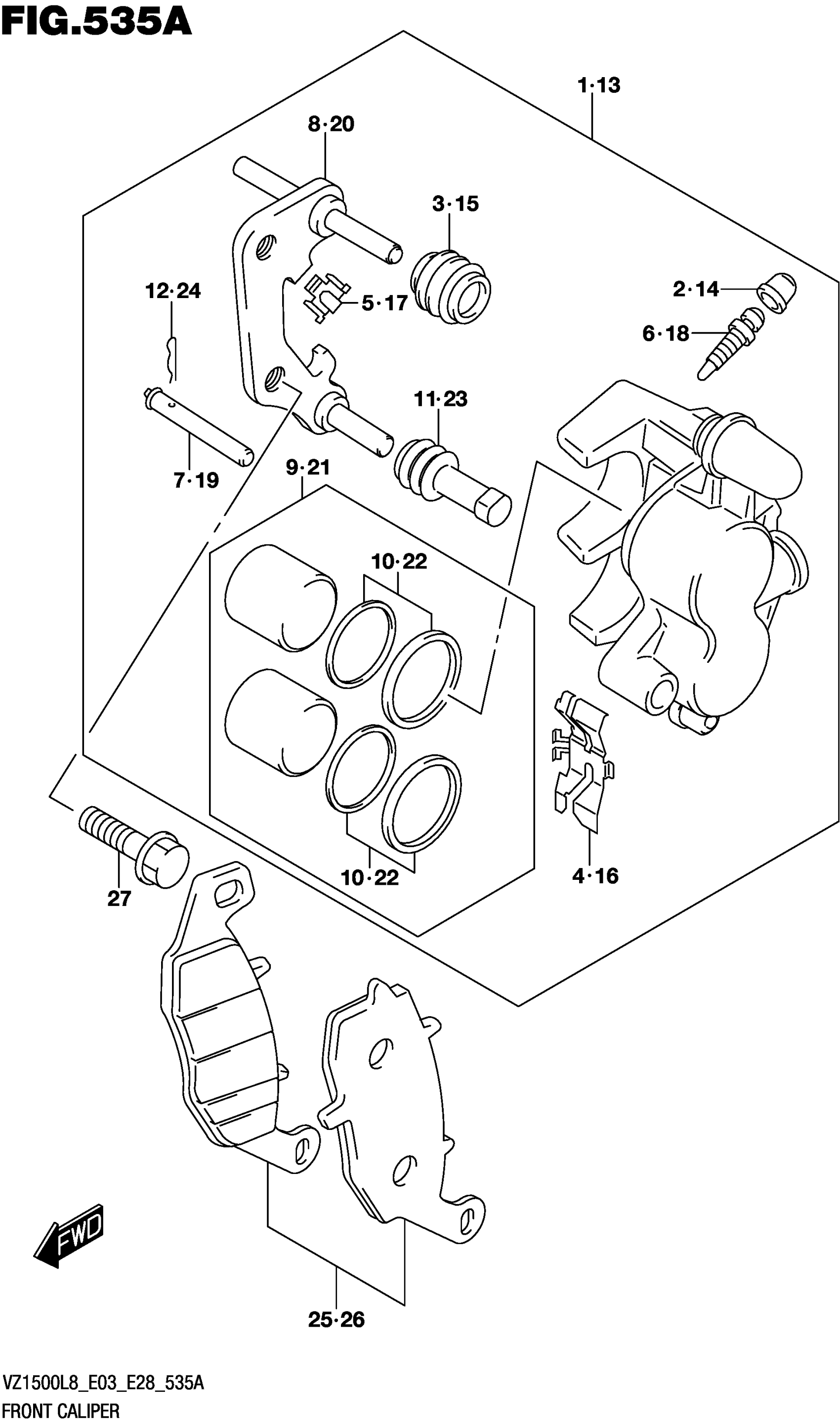

Find the part on the Front Caliper diagram for your 2018 Suzuki VZ1500L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki VZ1500L8 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY

59100-33D81-999

1
Out of stock

2

.CAP,BLEEDER PLUG (M10X1)

55156-66310

1
Out of stock

3

.BOOT,AXLE

59112-44B00

1
Out of stock

4

.SPRING, PAD RH

59115-33D00

1
Out of stock

5

.GUIDE, PAD

59116-33D00

1
Out of stock

6

.BLEEDER

59121-18410

1
Out of stock

7

.PIN, PAD

59141-44B01

1
Out of stock

8

.CARRIER, CALIPER RH

59150-33D01

1
Out of stock

9

.PISTON SET

59301-20820

1
Out of stock

10

..SEAL SET,PISTON

59300-33841

1
Out of stock

11

.INSULATOR, AXLE

59313-36500

1
Out of stock

12

.CLIP, PAD PIN

69142-45000

1
Out of stock

13

CALIPER ASSY

59300-33D81-999

1
Out of stock

14

.CAP,BLEEDER PLUG (M10X1)

55156-66310

1
Out of stock

15

.BOOT,AXLE

59112-44B00

1
Out of stock

16

.SPRING, PAD LH

59315-33D00

1
Out of stock

17

.GUIDE, PAD

59116-33D00

1
Out of stock

18

.BLEEDER

59121-18410

1
Out of stock

19

.PIN, PAD

59141-44B01

1
Out of stock

20

.CARRIER, CALIPER LH

59350-33D01

1
Out of stock

21

.PISTON SET

59301-20820

1
Out of stock

22

..SEAL SET,PISTON

59300-33841

1
Out of stock

23

.INSULATOR, AXLE

59313-36500

1
Out of stock

24

.CLIP, PAD PIN

69142-45000

1
Out of stock

25

PAD SET RH

59101-33880

1
Out of stock

26

PAD SET LH

59302-33890

1
Out of stock

27

BOLT (10X30)

09103-10379

4
Out of stock
