2017 Suzuki VZ1500L7 Rear Frame Diagram

← All diagrams

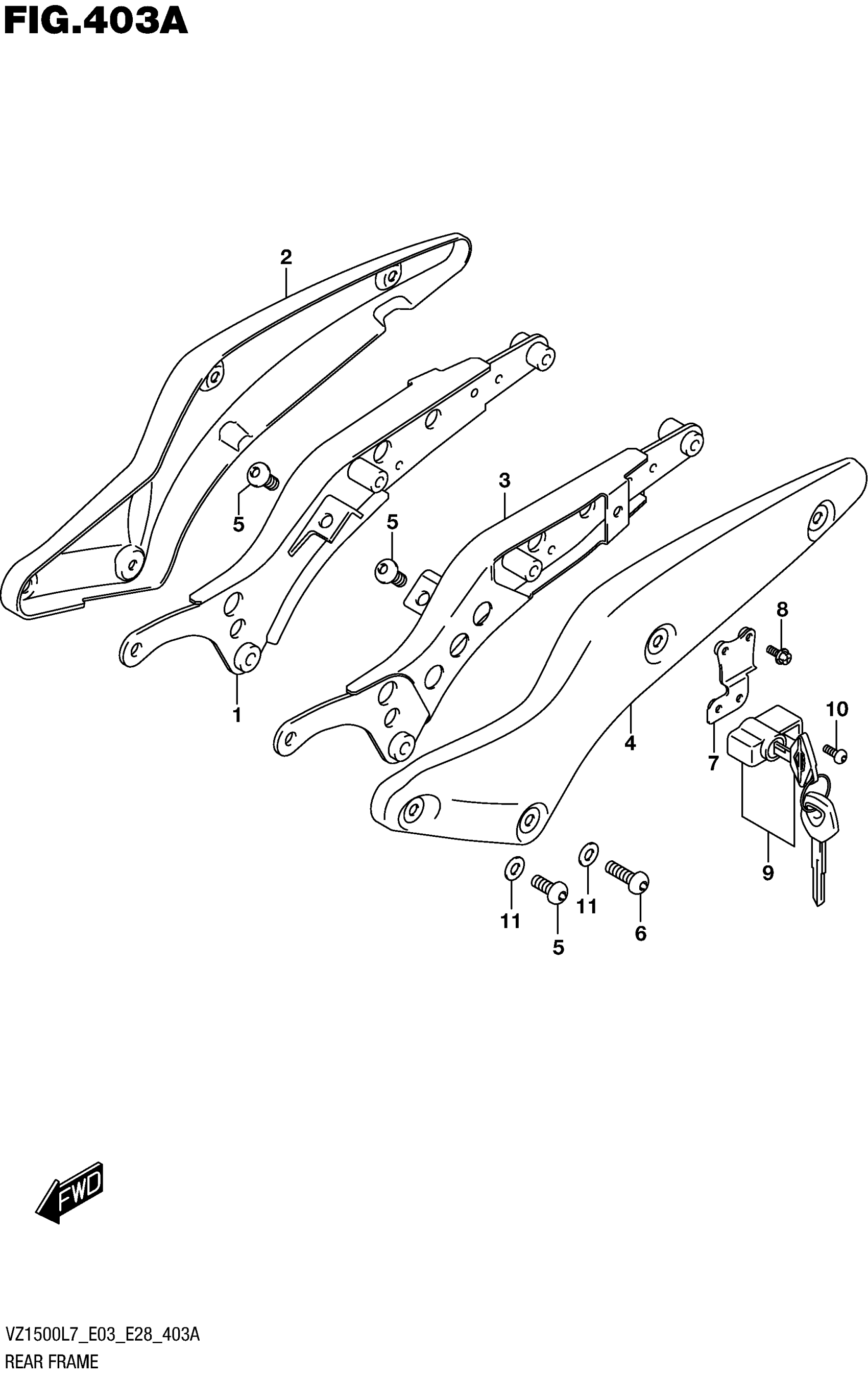

Find the part on the Rear Frame diagram for your 2017 Suzuki VZ1500L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki VZ1500L7 Rear Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME, REAR RH

42650-40H01

1
Out of stock

2

PLATE, REAR FRAME RH

42651-40H10

1
Out of stock

3

FRAME, REAR LH

42660-40H01

1
Out of stock

4

PLATE, REAR FRAME LH

42661-40H10

1
Out of stock

5

BOLT (10X25)

09139-10003

4
Out of stock

6

BOLT (10X35)

09139-10005

2
Out of stock

7

BRACKET, LOCK

95710-40H00

1
Out of stock

8

SCREW

02162-0612A

2
Out of stock

9

LOCK SET HELMET

95700-41821

1
Out of stock

10

SCREW (6X14)

09139-06089

1
Out of stock

11

WASHER (10.5X19X2)

09160-10082

4
Out of stock
