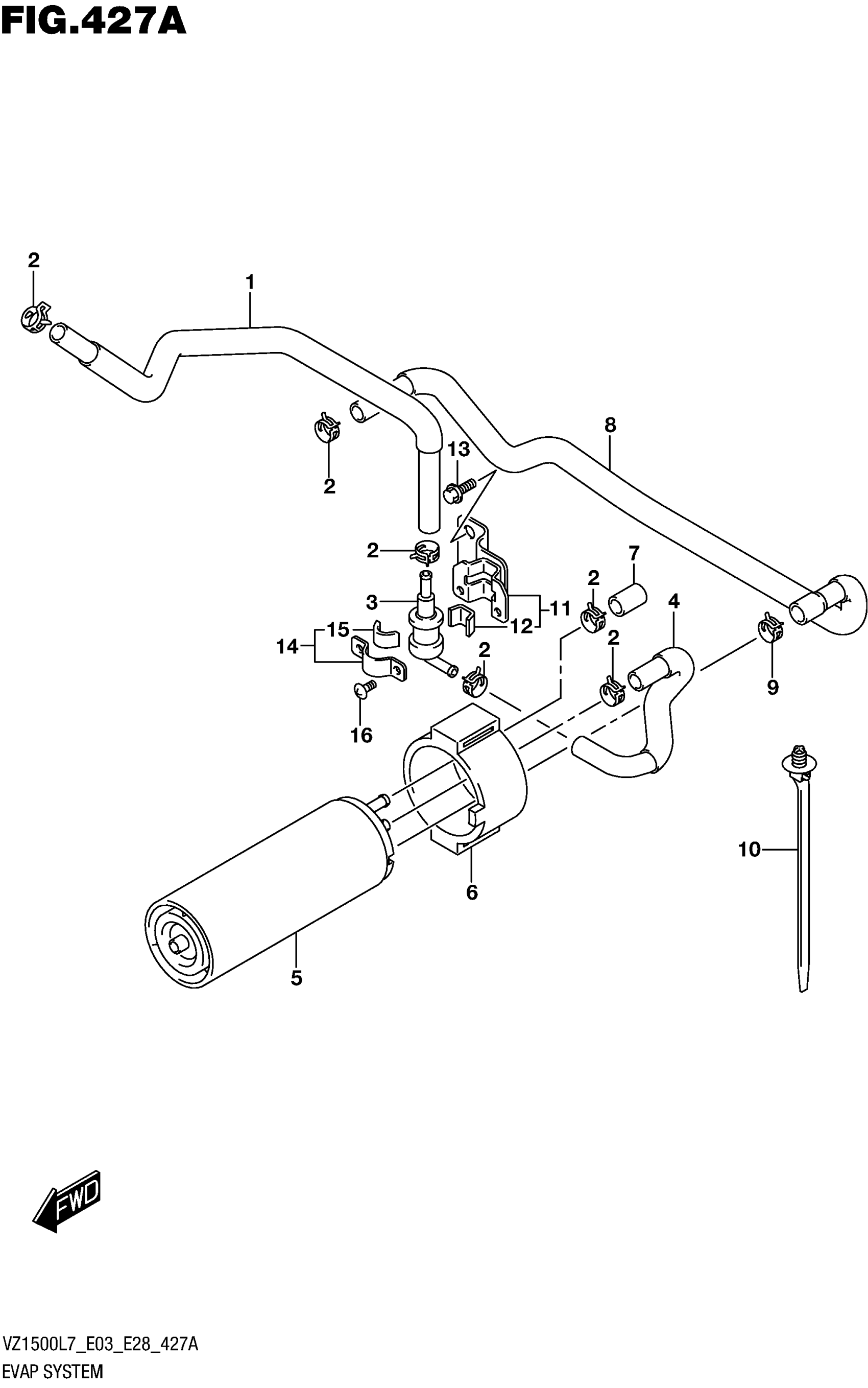

Suzuki VZ1500L7 (2017) EVAP SYSTEM (VZ1500L7 E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44434-40H00

Unavailable

2

CLIP

09401-11413

$2.24

3

VALVE FUEL TANK BREATHER

44240-17C00

$73.01

4

HOSE, VALVE & CANISTER

44435-40H00

Unavailable

5

CANISTER ASSY

17210-15H00

$317.98

6

CUSHION

44883-48G00

Unavailable

7

CAP

09251-07005

Unavailable

8

HOSE, CANISTER PURGE

44436-40H00

Unavailable

9

CLIP

09401-12404

$2.37

10

CLAMP (L:154)

09407-17403

$4.63

11

BRACKET

44880-40H00

Unavailable

12

CUSHION (10X30X2)

44894-24A00

$1.78

13

BOLT

01547-0610A

$1.47

14

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$5.10

15

CUSHION (10X30X2)

44894-24A00

$1.78

16

SCREW

02142-0408A

$1.68
