2017 Suzuki VZ1500L7 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2017 Suzuki VZ1500L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

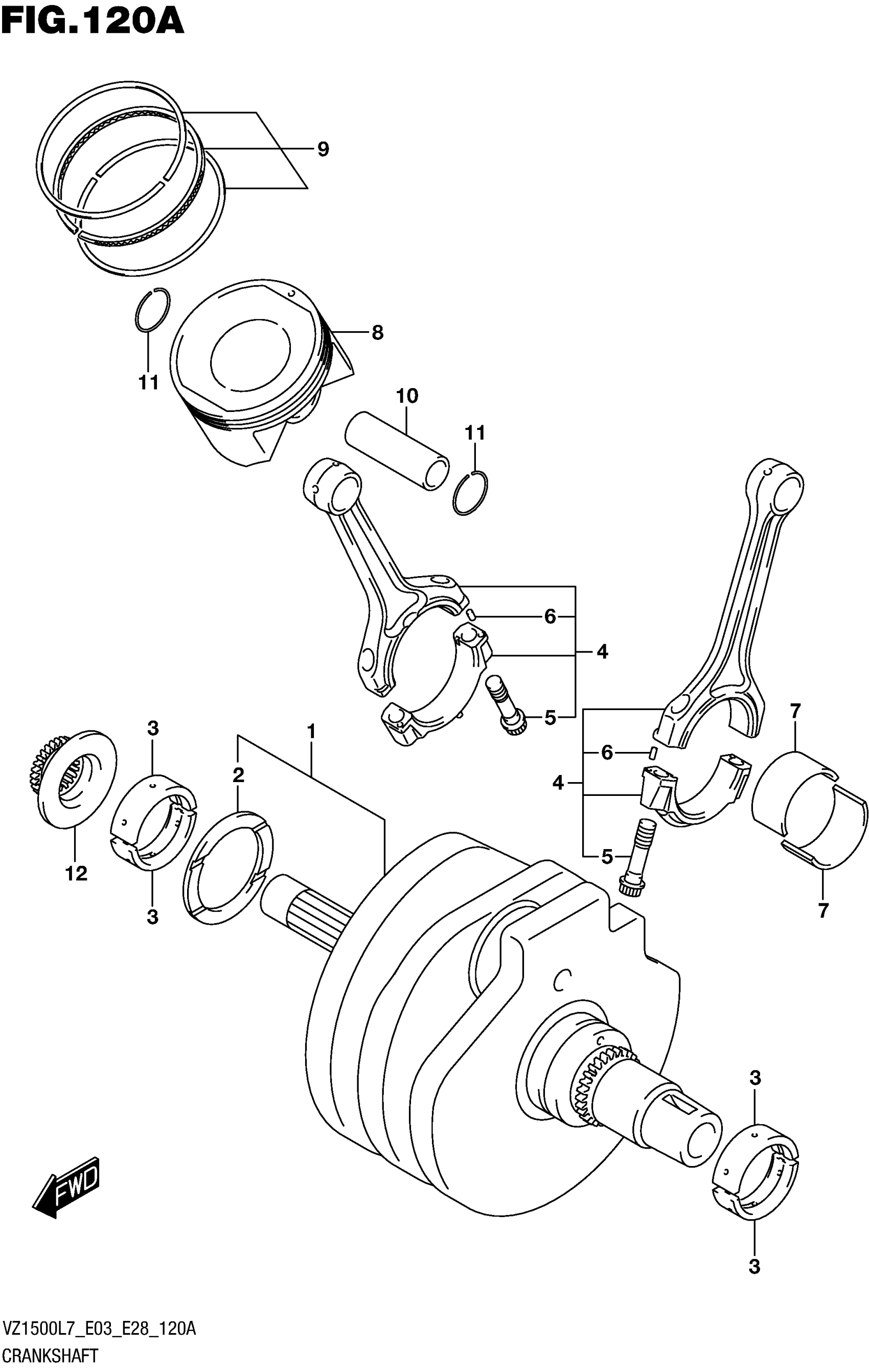

2017 Suzuki VZ1500L7 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET

12000-40851

1
Out of stock

2-1

.BEARING, CRANK THRUST

12228-40H00-0A0

1
Out of stock

2-1

(T:1.925)

12228-40H00-0A0

1
Out of stock

2-2

.BEARING, CRANK THRUST

12228-40H00-0B0

1
Out of stock

2-2

(T:1.950)

12228-40H00-0B0

1
Out of stock

2-3

.BEARING, CRANK THRUST

12228-40H00-0C0

1
Out of stock

2-3

(T:1.975)

12228-40H00-0C0

1
Out of stock

2-4

.BEARING, CRANK THRUST

12228-40H00-0D0

1
Out of stock

2-4

(T:2.000)

12228-40H00-0D0

1
Out of stock

2-5

.BEARING, CRANK THRUST

12228-40H00-0E0

1
Out of stock

2-5

(T:2.025)

12228-40H00-0E0

1
Out of stock

2-6

.BEARING, CRANK THRUST

12228-40H00-0F0

1
Out of stock

2-6

(T:2.050)

12228-40H00-0F0

1
Out of stock

3-1

BEARING, CRANKSHAFT (GREEN)

12229-40H00-0A0

4
Out of stock

3-2

BEARING, CRANKSHAFT (BLACK)

12229-40H00-0B0

4
Out of stock

3-3

BEARING, CRANKSHAFT (BROWN)

12229-40H00-0C0

4
Out of stock

4

CONNROD ASSY

12160-40H00

2
Out of stock

5

.BOLT

12163-06G00

4
Out of stock

6

PIN (4X13.8)

04221-04089

4
Out of stock

7-1

BEARING, CRANK PIN (GREEN)

12164-40H00-0A0

4
Out of stock

7-2

BEARING, CRANK PIN (BLACK)

12164-40H00-0B0

4
Out of stock

7-3

BEARING, CRANK PIN (BROWN)

12164-40H00-0C0

4
Out of stock

7-4

BEARING, CRANK PIN (YELLOW)

12164-40H00-0D0

4
Out of stock

8

PISTON

12111-40H10-0F0

2
Out of stock

9

RING SET, PISTON

12140-40H01

2
Out of stock

10

PIN, PISTON

12151-02F10

2
Out of stock

11

CIRCLIP

09381-22002

4
Out of stock

12

SPROCKET, CAM CHAIN DRIVE

12731-40H00

1
Out of stock

12

(NT:23)

12731-40H00

1
Out of stock
