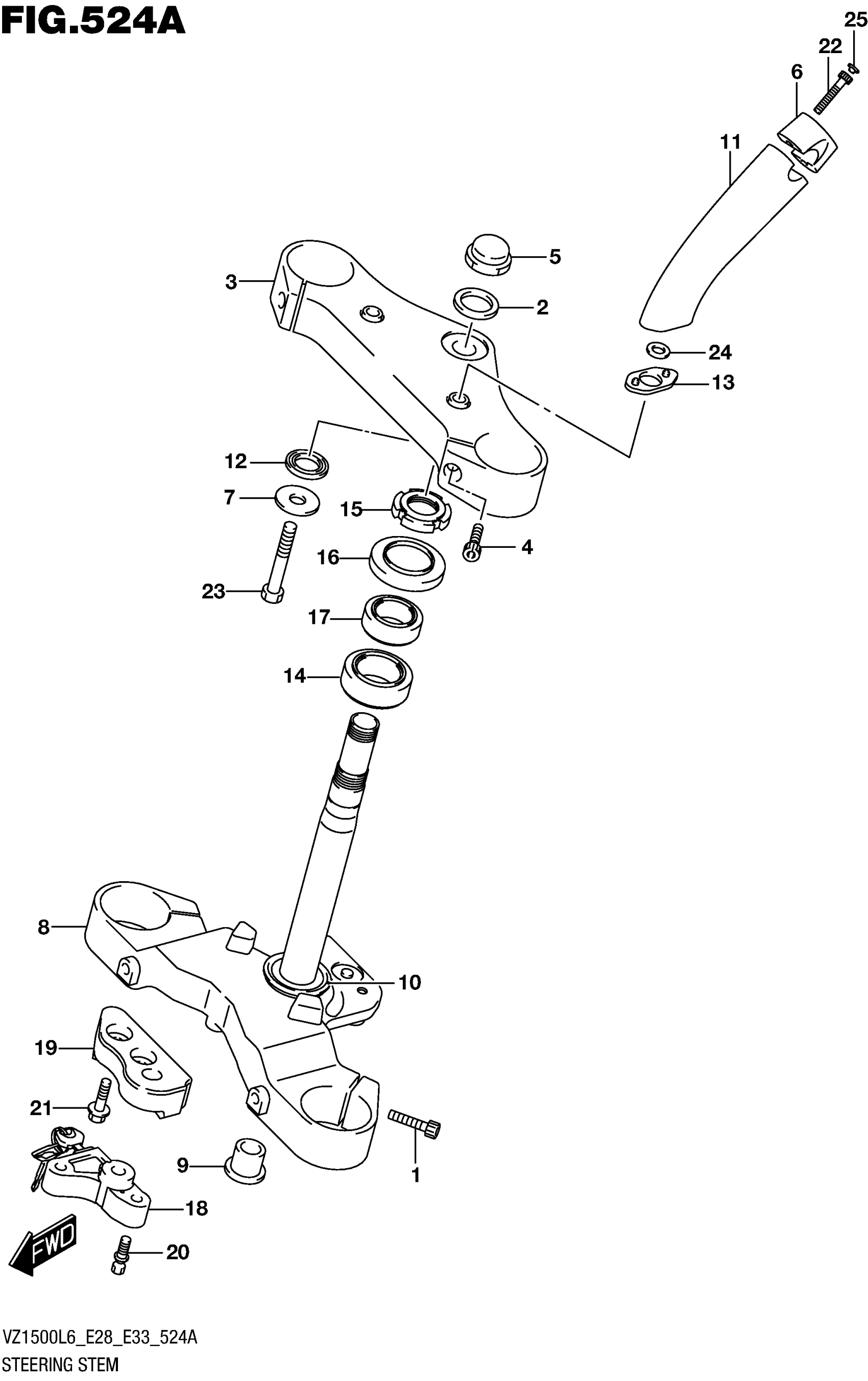

Suzuki VZ1500L6 (2016) STEERING STEM Diagram

#

Description
Price

1

BOLT

51451-32E40

$7.03

2

WASHER This part replaces 51172-06C00.

51356-10D03

$8.47

3

BRACKET, UPPER

51311-40H30

Unavailable

4

BOLT

51328-05H00

$6.50

5

NUT, CAP

51353-24B00

$34.62

6

HOLDER, HANDLE

56211-39G00

$109.53

7

WASHER

51355-16G00

$6.52

8

BRACKET, UNDER

51410-40H30

Unavailable

9

CAP

51482-44G00

Unavailable

10

SEAL, STEERING LOWER

51644-12C00

$9.04

11

HOLDER, HANDLE

56221-39G60

Unavailable

12

RUBBER, HANDLE HOLDER

56245-16G00

$5.90

13

RUBBER, HANDLE HOLDER

56245-39G00

$10.62

14

BEARING (30X55X17)

09265-30020

$42.08

15

NUT, STEERING STEM

51631-31F00

$22.42

16

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.04

17

BEARING (25X47X15)

09265-25038

$42.34

18

LOCK ASSY, STEERING

51900-22820

Unavailable

19

BRACKET, STEERING LOCK

51921-40H00

Unavailable

20

SCREW, STEERING LOCK

51925-48G00

$9.08

21

BOLT (8X30)

09103-08197

$1.85

22

BOLT

51451-32E40

$7.03

23

BOLT

51226-23H00

$42.68

24

WASHER

51354-42F00

$5.18

25

CAP (OD:11)

09250-06011

$2.62
